JSSCD-150C Automatic Circular Saw Production Line with φ30–φ150 mm Cutting Range ±0.20 mm Tolerance and 2000 mm Feed

JSSCD-150C Automatic Circular Saw Production Line with φ30–φ150 mm Cutting Range ±0.20 mm Tolerance and 2000 mm Feed
JSSCD-150C Automatic Circular Saw Production Line with φ30–φ150 mm Cutting Range ±0.20 mm Tolerance and 2000 mm Feed JSSCD-150C Automatic Circular Saw Production Line with φ30–φ150 mm Cutting Range ±0.20 mm Tolerance and 2000 mm Feed JSSCD-150C Automatic Circular Saw Production Line with φ30–φ150 mm Cutting Range ±0.20 mm Tolerance and 2000 mm Feed JSSCD-150C Automatic Circular Saw Production Line with φ30–φ150 mm Cutting Range ±0.20 mm Tolerance and 2000 mm Feed

Large Image :  JSSCD-150C Automatic Circular Saw Production Line with φ30–φ150 mm Cutting Range ±0.20 mm Tolerance and 2000 mm Feed

Product Details:
Place of Origin: China
Brand Name: JSSCD
Certification: HB24Q00435R0S HB24E00258R0S HB24S00242R0S
Model Number: JSSCD-150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: depending on the machine model
Delivery Time: 7-60 work days
Payment Terms: FOB
Supply Ability: 500 Sets Per Year
Contact Now Chat Now

JSSCD-150C Automatic Circular Saw Production Line with φ30–φ150 mm Cutting Range ±0.20 mm Tolerance and 2000 mm Feed

Description
Model: 150NC TCT Circular Saw Blade: φ460 × 2.7 Mm
Cutting Range – Round Bar: φ30 – φ150 Mm Cutting Range – Square Bar: 30 – 110 Mm
Blade Speed: 30 – 168 Rpm Feed Drive: 2.6 KW AC Servo Motor + Ball Screw
Feed Accuracy: ±0.05 Mm Cutting Length Tolerance: ≤ ±0.20 Mm

Automatic Circular Saw Production Line – High-Volume Cutting Solution
The JSSCD-150C Automatic Circular Saw Production Line is a comprehensive high-volume cutting solution designed for large diameter metal materials. With a cutting range of φ30 mm to φ150 mm for round bars and 30 mm to 110 mm for square bars, this production line is ideally suited for heavy industries including automotive manufacturing, wind power, construction machinery, steel service centers, and petrochemical equipment production.
This fully automated production line integrates an automatic loading rack, servo-driven feeding system, high-speed intelligent circular saw, conveying roller table, and automatic sorting mechanism. The system supports single-feed lengths up to 2000 mm, eliminating the need for multiple feeding cycles and significantly improving production efficiency for large component manufacturing.
Key Features
  • Large Diameter Cutting Capacity - Handles round bars from φ30 mm to φ150 mm and square bars from 30 mm to 110 mm
  • Single-Stroke Long Feed - Achieves single feed length up to 2000 mm, eliminating multiple feeding cycles
  • High Precision Cutting - Delivers cutting length tolerance of ≤ ±0.20 mm and squareness of ≤ ±0.25 mm / 100 mm
  • MQL Mist Cooling System - Minimum quantity lubrication reduces cutting heat, extends blade life, and keeps components clean
  • Advanced PLC Control - Touch screen interface with remote monitoring capability, real-time production data, and fault diagnostics
Technical Specifications
Material Strength ≤ 1800 N/mm²
Main Motor Power 18.5 kW (servo spindle)
Hydraulic System Pressure 6 MPa
Hydraulic Tank Capacity 100 L
Cooling System MQL mist cooling
Chip Removal Automatic chain plate conveyor
Raw Material Rack Capacity 3000 - 7500 mm
Power Supply 380V / 50Hz / 3Phase
Product Images

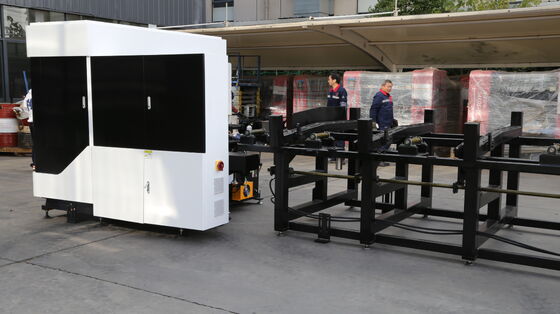

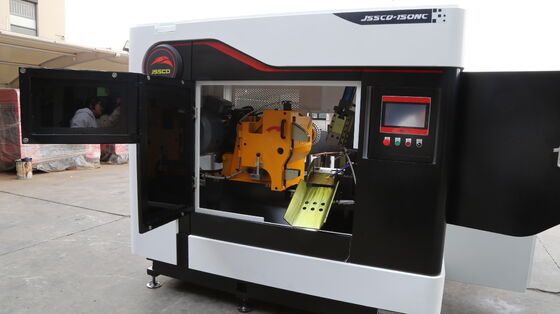

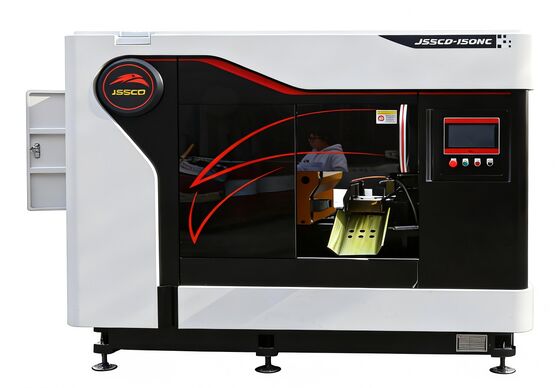

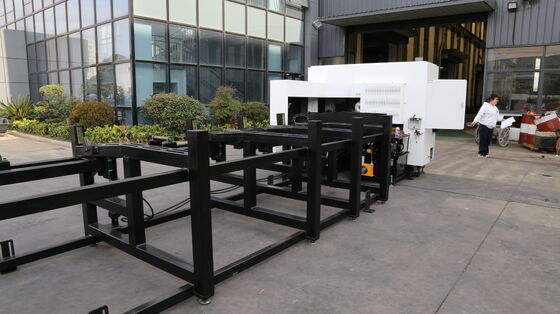

JSSCD-150C Automatic Circular Saw Production Line with φ30–φ150 mm Cutting Range ±0.20 mm Tolerance and 2000 mm Feed 0 JSSCD-150C Automatic Circular Saw Production Line with φ30–φ150 mm Cutting Range ±0.20 mm Tolerance and 2000 mm Feed 1 JSSCD-150C Automatic Circular Saw Production Line with φ30–φ150 mm Cutting Range ±0.20 mm Tolerance and 2000 mm Feed 2
Applications
Automotive Parts Manufacturing
Cuts axle shafts, transmission components, and chassis hardware from alloy steel with ±0.20 mm accuracy.
Wind Power Industry
Processes bearing rings (GCr15) and gearbox shafts (40Cr, 42CrMo) for wind turbine components.
Construction Machinery
Cuts track pins, bucket pins, and drive shafts for excavators, loaders, and bulldozers.
Steel Service Centers
Custom cutting of large diameter round bars and square materials for customer orders.
Frequently Asked Questions
What is the maximum cutting diameter?
The JSSCD-150C cuts round bars up to φ150 mm and square bars up to 110 mm.
What is the single feed length?
Single feed length is up to 2000 mm, eliminating multiple feeding cycles for long components.
What materials can be cut?
Bearing steel (GCr15), alloy steel (40Cr, 42CrMo, 20CrMnTi), carbon steel, and stainless steel.
What is the cutting accuracy?
Cutting length tolerance ≤ ±0.20 mm with feed accuracy of ±0.05 mm.
Is the machine fully automatic?
Yes, the system integrates automatic loading, feeding, cutting, conveying, and sorting.
