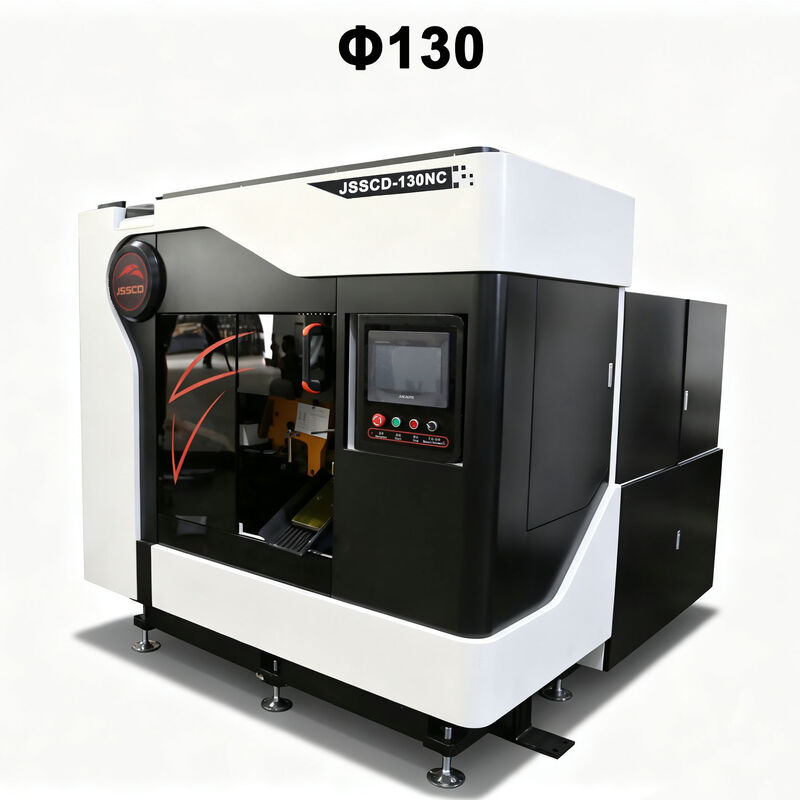

JSSCD-130NC/X CNC High Speed Circular Saw Machine (Angled-Push)
In the demanding arena of metal profile processing, the JSSCD-160NC/X CNC High-Speed Circular Saw Machine (Angled-Push) stands out as a cornerstone of efficiency and quality. Engineered specifically for metal cutting, its exceptional capability in angled operations makes it indispensable for modern production lines.
Core Innovation: The 15° Advantage
The machine's defining feature is its unique top-to-bottom cutting action at a precise 15° angle. This innovative approach strategically disperses cutting forces, resulting in significantly reduced stress impact on workpieces and exceptionally smooth, flat cut edges.
Versatility Meets Simplified Operation
This saw handles a diverse range of profiles including round tubes, angle steels, and square tubes with remarkable flexibility. It features a sophisticated intelligent control module that governs cutting speed, angle, and other critical parameters for consistent, high-precision results.
Robust Performance & Intelligent Control
- High-strength transmission and clamping system for vibration-free operation

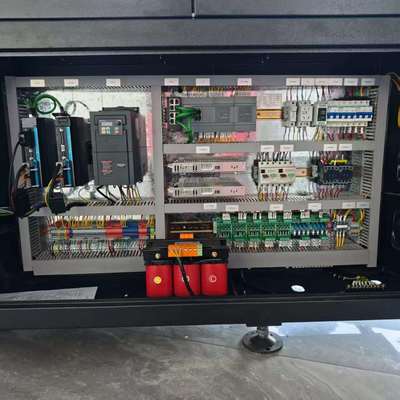

- High-precision CNC control system with intuitive HMI interface
- Programmable cutting parameters with multiple program storage
- Reduced manual intervention and minimized human error
Specifications
| Model |
Unit |
JSSCD-160NC/X |
| Mainframe dimensions |
mm |
2230*1800*1890 |
| Bar & round pipe |
mm |
30-130 |
| Angle bar & square bar |
mm |
30-115 |
| Saw blade size |
mm |
φ400*2.7*φ40 |
| Spindle motor power |
KW |
15 |
| Spindle speed |
rpm |
20-120 |
| Feeding servo motor power |
KW |
2 |
| Hydraulic drive motor power |
KW |
2.25(4p) |
| Rated pressure of the hydraulic system |
mpa |
5.5 |
| Hydraulic oil capacity |
L |
100 |
Boosting Productivity & Sustainability

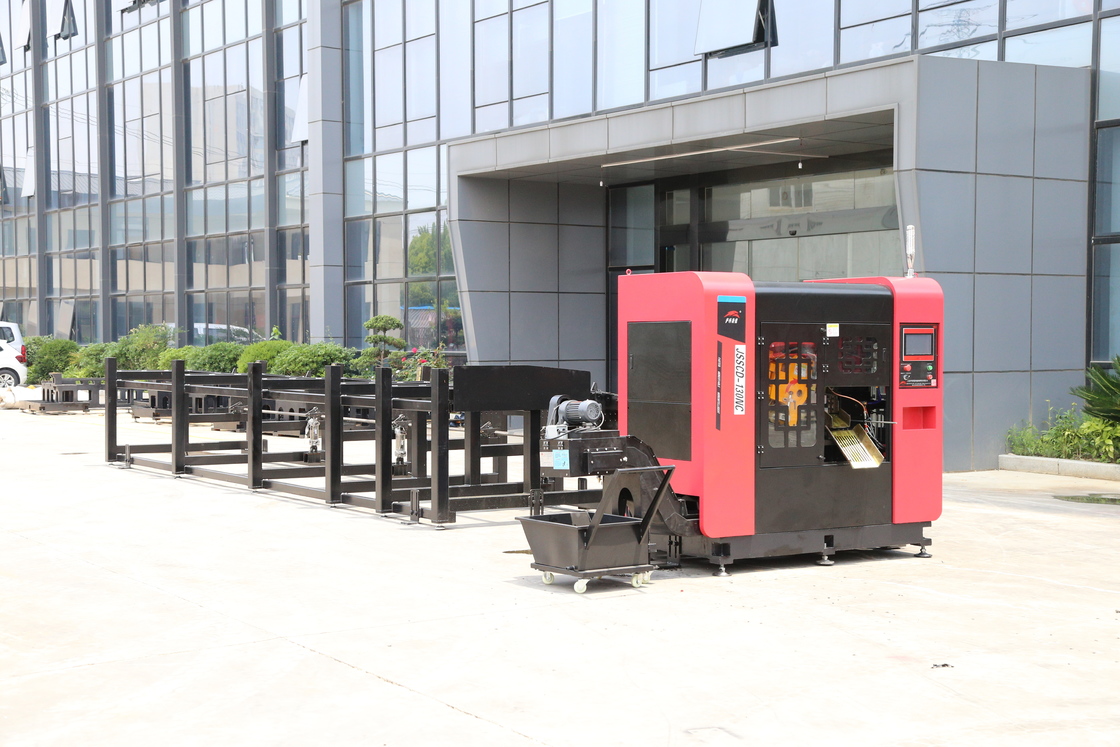

An optional automatic feeding system enables continuous, unattended batch cutting for enhanced throughput. The intelligent CNC control and high-speed cutting technology deliver optimized material use, enhanced efficiency, and lower operational costs.
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
You can send sample material for test cutting. We will provide detailed cutting data and a video of the operation.
Q4: What is your method of transaction?
We use FOB (Free On Board) transaction terms.
Q5: How about your delivery time?
Typically 7-60 work days after order receipt, depending on items and quantity.
Q6: How about the payment term?
T/T 30% deposit, 70% balance before shipment. Other methods available upon request.
Q7: Does the band saw blade have any international certifications?
Yes, we have obtained CE and ISO international certifications.
