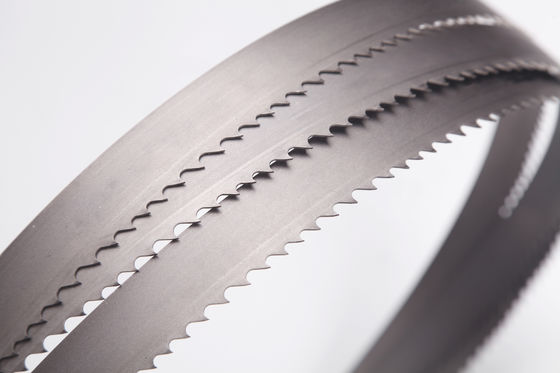

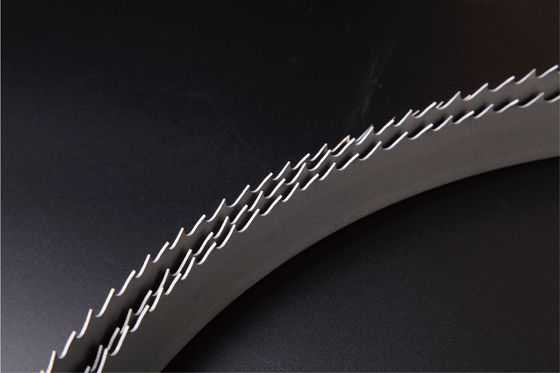

ML Metal Cutting Band Saw Blade With Alternative Tooth Pitch For Different Material Sawing Needs
JSSCD ML Carbide Band Saw Blade
Product Introduction
ML Carbide Band Saw Blade for Aluminum, Copper and Non-Ferrous Metal Cutting
The JSSCD ML Carbide Band Saw Blade is specially developed for high-performance sawing of non-ferrous metals and aluminum-based materials.
Featuring a multi-chip tooth design without a conventional tooth set, the ML series provides a flat and smooth tooth section designed for stable cutting performance. The blade uses ultra-fine-grained alloy cutter heads with hardness up to 91 HRC, providing excellent resistance to wear and chipping.
Advanced heat treatment and surface treatment processes are applied to the blade body to improve fatigue resistance, making the ML series suitable for demanding continuous sawing applications.
The ML carbide band saw blade is particularly suitable for copper, aluminum, aluminum alloys, aluminum engine cylinder heads, aluminum casting risers and special-shaped materials with quenched surface hardening.
Key Features
1. Multi-Chip Tooth Design
The ML series adopts a multi-chip design without a conventional tooth set, creating a flat and smooth tooth section.
This design is developed specifically for non-ferrous metal cutting and helps provide stable cutting performance.
2. Ultra-Fine-Grained Alloy Cutter Heads
The blade uses ultra-fine-grained alloy cutter heads with hardness of up to 91 HRC.
The high-hardness cutter heads provide strong resistance to:
- Tooth wear
- Chipping
- Edge damage
This helps maintain cutting performance during continuous production.
3. Flat and Smooth Tooth Section
The specialized tooth configuration provides a flat and smooth tooth section, making the blade particularly suitable for cutting aluminum and other non-ferrous materials.
4. Excellent Wear Resistance
The high-hardness alloy cutter heads are designed to withstand continuous cutting and resist tooth wear, helping extend blade service life in demanding applications.
5. High Chipping Resistance
The combination of ultra-fine-grained alloy cutter heads and optimized tooth design helps improve resistance to tooth chipping during cutting.
6. Heat-Treated Blade Body
The ML blade body undergoes advanced heat treatment and surface treatment processes, helping improve its overall mechanical performance and fatigue resistance.
7. Designed for Non-Ferrous Metals
The ML series is specifically positioned for:
- Copper
- Aluminum
- Aluminum alloys
- Aluminum engine cylinder heads
- Aluminum casting risers
- Special-shaped materials with quenched surface hardening
Available Blade Sizes & Pitch
| Width * Thickness |
2/3 TPI |
1.4/2.0 TPI |
| 27 * 0.90 mm |
✓ |
— |
| 34 * 1.10 mm |
✓ |
— |
| 41 * 1.30 mm |
✓ |
✓ |
| 54 * 1.30 mm |
✓ |
✓ |
The supplied specification table lists the available pitch combinations above.
Note: The PDF provides the available width/thickness and pitch combinations, but does not provide a recommended cutting speed or feed rate. These parameters should therefore be selected according to the specific material, workpiece dimensions and band saw machine.

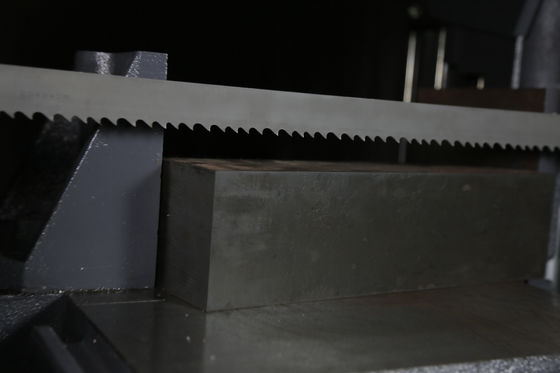

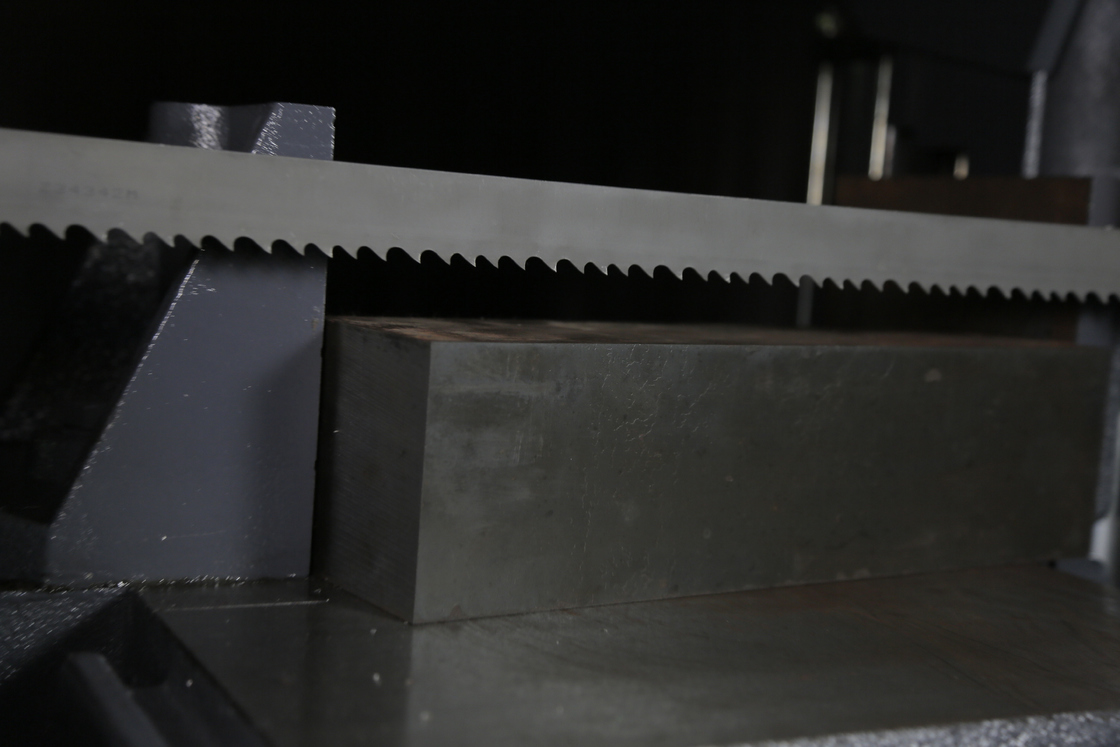

Application
1. Copper Cutting
The ML carbide band saw blade is suitable for cutting copper and pure copper, where stable cutting and resistance to tooth wear are important.
2. Aluminum Cutting
The ML series is designed for aluminum cutting applications, making it suitable for industrial aluminum processing.
3. Aluminum Alloy
The blade can be used for aluminum alloy sawing where conventional metal-cutting blades may not provide the desired performance.
4. Aluminum Engine Cylinder Heads
The product information specifically lists aluminum engine cylinder heads as an application.
This makes the ML series suitable for specialized automotive component processing.
5. Aluminum Casting Risers
The ML blade is also designed for cutting aluminum casting risers, supporting efficient removal of excess material during casting processes.
6. Special-Shaped Materials
The ML series can also be used for special-shaped materials with surface hardening by quenching, according to the supplied product information.
Typical Application Areas
Based on the material applications specified in the product document, the ML series can be positioned for:
- Aluminum processing
- Copper processing
- Aluminum alloy processing
- Automotive aluminum components
- Aluminum casting processing
- Special-shaped metal component cutting
FAQ
Q1: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.
Q2: Where is your factory located?
A: Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.
Q3: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q4: What is special about the ML tooth design?
A: The ML series uses a multi-chip design without a conventional tooth set, with a flat and smooth tooth section.
Q5: Can the ML blade cut copper?
A: Yes. Purple copper / pure copper is explicitly listed in the product's application range.
