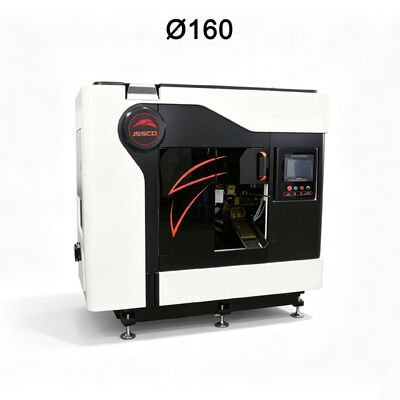

The JSSCD-160NC High-Speed Intelligent Circular Saw Machine is an automated metal cutting solution designed for high-efficiency and high-precision cutting of round bars and square materials.
The machine adopts a horizontal push-type cutting structure driven by a servo motor and precision ball screw. Compared with conventional structures, this design provides stable blade feeding, precise control, and reduced vibration during cutting. The feed speed can be continuously adjusted according to material type and cross-sectional dimensions, helping achieve consistent cutting performance under different working conditions.
The JSSCD-160NC integrates automatic feeding, hydraulic clamping, servo-controlled cutting, automatic material separation, mist lubrication, chip removal, automatic lubrication, and CNC control. From automatic material feeding to cutting and handling of head and tail material, the main production process can be completed automatically, reducing manual intervention and improving production efficiency.
The machine is suitable for materials with a maximum strength of 1800 N/mm² and a maximum hardness of HRC 42, with a cutting range of Ø40–Ø160 mm for round bars and 40–125 mm for square materials.
Key features
Stable Horizontal Push-Type Feeding
The JSSCD-160NC uses a servo motor and ball screw horizontal push feeding system, ensuring smooth and stable cutting with adjustable feed speed. It also includes overload protection with automatic stop and alarm.
High-Precision Servo Feeding System
Driven by an AC servo motor and ball screw, the system ensures stable feeding without slipping.
Feeding range: 10–750 mm, speed: 5–20 m/min, accuracy: ±0.05 mm.
High Cutting Accuracy
Cutting precision is stable with verticality tolerance ≤±0.1/100 mm.
Length accuracy: ±0.1 mm (bars), ±0.15 mm (tubes).
Cutting loss: ≤2.7 mm.
Rigid Cast-Iron Machine Bed
HT250 cast iron bed with heat treatment ensures high rigidity, stability, and impact resistance for continuous cutting.
High-Rigidity Spindle and Gearbox
Uses precision gears and SKF/NSK bearings. The alloy steel spindle is dynamically balanced, with a damping system to reduce vibration and improve stability.

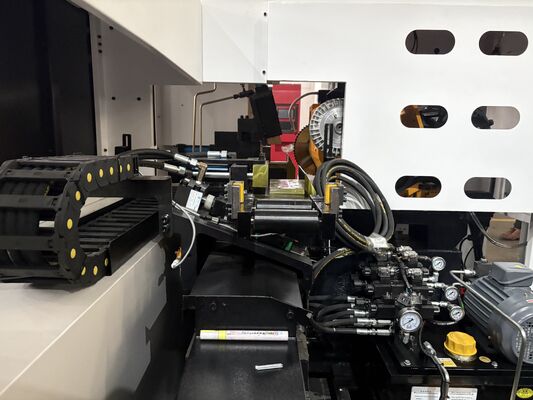

Hydraulic Multi-Point Clamping
Hydraulic front and rear clamping with adjustable pressure ensures stable workpiece holding during high-speed cutting.
Automatic Loading and Feeding
Automatically loads bundled materials and feeds bars one by one. Position detection ensures consistent feeding and reduces manual work.
Automatic Material Separation
Automatically separates finished products, head, and tail materials to improve workflow efficiency.
Mist Lubrication and Cooling
Uses adjustable mist lubrication with cold-cutting oil to reduce heat, improve blade life, and lower oil consumption.
Automatic Chip Removal
Chain-type chip conveyor automatically removes cutting chips to keep the working area clean.
Automatic Blade Cleaning
A wire brush removes chips from the saw blade to prevent secondary cutting and extend blade life.
CNC Control and Automation
PLC + touchscreen control system enables full CNC operation. Ethernet interface supports production line integration.
Automatic Lubrication
Automatic lubrication system ensures regular oiling of key parts with low-oil alarm and visual monitoring.
Optional Oil Mist Collector
Optional system removes over 95% of oil mist, improving workshop environment.
Technical specifications
| Model | Unit | JSSCD-160NC |
|---|
| Mainframe dimensions | mm | 2376*2271*1970 |
| Saw blade size | mm | Ø485*2.25*2.7*50 |
| Round bar cutting range | mm | Ø40-160 |
| Square material cutting range | mm | 40-125mm |
| Saw blade speed | rpm | 30-120 |
| Main motor | kw | 18.5/6P |
| Cutting servo motor | kw | 3 |
| Feeding servo motor | kw | 3 |
| Minimum head cutting length | mm | ≥10 |
| Feeding speed | m/min | 5-20 |
| Hydraulic motor power | kw | 3.75 |
| Hydraulic pressure | Mpa | 4-5 |
| Hydraulic tank capacity | L | 168 |
Applications
The JSSCD-160NC is designed for automated precision cutting of metal bars and square materials within its specified cutting range.
Typical applications include:
- Round steel bar cutting
- Square steel cutting
- Metal bar blank preparation
- Batch cutting of bar stock
- Automated metal material preparation
- Continuous production-line cutting
- High-volume metal processing
- Precision blank cutting before subsequent machining
With its automatic loading, servo feeding, hydraulic clamping, automatic material separation, chip removal, and CNC control, the machine is particularly suitable for production environments requiring high cutting consistency, reduced manual intervention, and continuous batch processing. The documented raw-material requirements include material strength up to 1800 N/mm² and hardness up to HRC42.
FAQ
Q1: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q2: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international
Q3: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q4: What industries is the JSSCD-160NC suitable for?
A: The machine is widely used in metal processing industries such as steel bar cutting, mechanical manufacturing, automotive parts production, and metal material preparation for machining.
Q5: How is chip management handled?
A: An automatic chain-type chip conveyor is used to continuously remove chips from the cutting area, keeping the machine clean and stable during operation.
