Band Saw Machine Selection Guide: Durable & Efficient Metal Cutting
As a core piece of equipment in metal processing, building material cutting, and other industrial applications, proper band saw machine selection directly impacts production efficiency, processing costs, and final product quality.
Material Assessment Parameters
Begin by identifying key material parameters: Are you cutting metals such as carbon steel and stainless steel, or non-metals like wood and stone? What are the maximum diameter, thickness, and length specifications of your materials?
Clamping & Control Systems
For clamping systems, hydraulic clamping is preferred - offering adjustable pressure and secure material holding to prevent displacement. Control system options include:
- Manual/semi-automatic models for small-batch, multi-variety processing
- Fully automatic CNC models for large-batch, standardized production with automatic material feeding
Cost & Service Considerations
Evaluate long-term operating costs to determine overall cost-effectiveness. Additionally, assess the manufacturer's after-sales service capabilities and support infrastructure.
The optimal band saw machine selection focuses on finding the most suitable equipment for your specific requirements, rather than simply choosing the "best" model available.

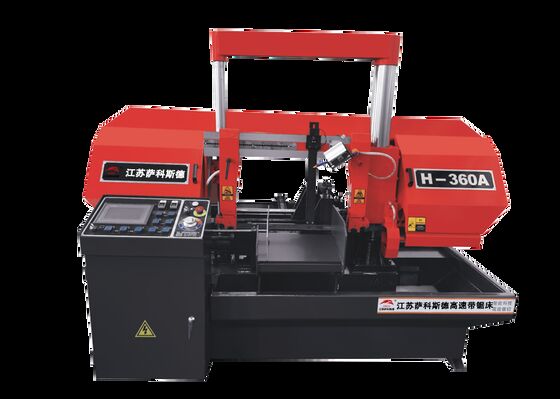

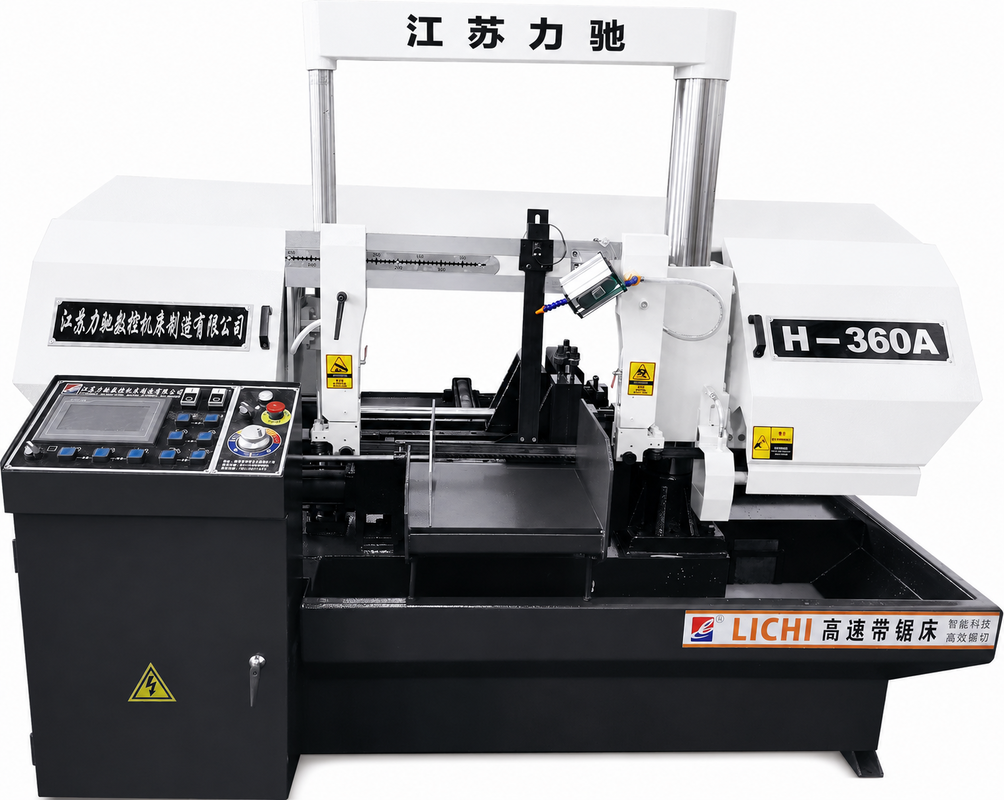

JSSCD-H-360A Band Saw Machine
SOKOSIDE circular saw machines meet all the above selection criteria. We maintain a professional R&D team and provide comprehensive 24-hour after-sales service.
Jiangsu Sakoside Intelligent Machinery Technology Co., LTD. is a full-service industrial manufacturer specializing in band sawing equipment design and production. Our band saws excel at cutting diverse profiles of metal, plastic, and alloy materials, making them ideal for machinery fabrication and processing applications.
Premium H Series Features
- Boosted Productivity: Faster operating speeds with substantial energy conservation
- Robust Construction: Reinforced transmission system and powerful main drive motor for enhanced cutting performance
- Superior Cut Results: Exceptional surface finish and accuracy when used with specialized cutting fluids and saw bands
- Extended Durability: Industrial-grade hard-chrome plated columns for wear resistance and prolonged service life
- Advanced Control: Hydraulic lifting mechanism with precision bearing-supported blade guides and adjustable tungsten steel guide plates
Technical Specifications
| Parameter |
Unit |
JSSCD-H-360A |
| Machine size |
mm |
2200*2500*1600 |
| Square bar & angle bar |
mm |
360*360 |
| Bar & round pipe |
mm |
φ360 |
| Saw band speed |
m/min |
20-100 (Variable frequency stepless speed regulation) |
| Saw band size |
|
4950*41*1.3 |
| Main motor power |
kw |
4 |
| Hydraulic motor power |
kw |
1.5 |
| Cooling motor power |
kw |
0.09 |
| Hydraulic fluid capacity |
L |
80 |
| Cutting fluid capacity |
L |
50 |
| Saw band tension |
|
Manual |
| Clamping method |
|
Hydraulic |
| Feeding method |
|
Hydraulic Feeding |
| Feeding stroke |
mm |
600 |
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated team of technicians specializing in design, manufacturing, and sales.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
You can send sample material for test cutting. We will provide detailed cutting data and a video of the machine operation for your confirmation.
Q4: What is your method of transaction?
We typically use FOB (Free On Board) transactions.
Q5: How about your delivery time?
Standard delivery is 7-60 work days after order confirmation, depending on items and quantity.
Q6: How about the payment term?
Standard terms are T/T 30% deposit, 70% balance before shipment. Other methods available upon request.
Q7: Does the band saw blade have any international certifications?
Yes, our products have obtained CE and ISO international certifications.
