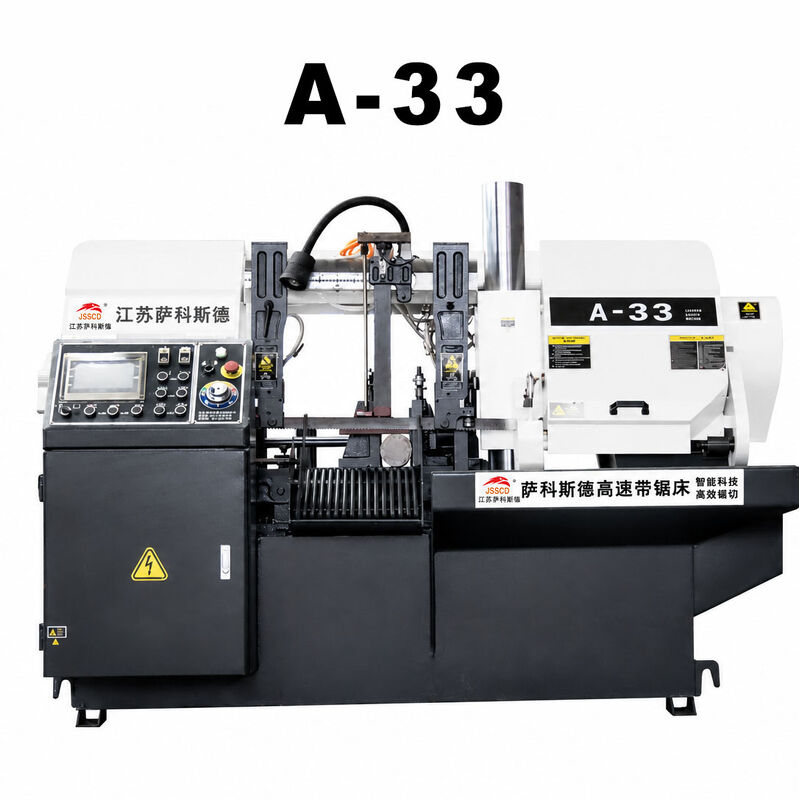

A33 Hydraulic Band Saw Machine for Carbon Steel Stainless Alloy Aluminum Cutting

The A-33 Band Sawing Machine is designed for cutting large-diameter metal bars and square or angle-section materials. With a maximum round bar cutting capacity of Ø330 mm and a square bar cutting capacity of 330 * 330 mm, it is suitable for a wide range of industrial metal-cutting applications.

Equipped with a hydraulic clamping system and hydraulic feeding mechanism, the A-33 supports stable workpiece positioning and controlled material feeding during cutting operations. Its variable-frequency saw band speed adjustment allows operators to select an appropriate cutting speed according to different material requirements.

With a compact machine structure, straightforward operation, and practical hydraulic configuration, the A-33 is a suitable solution for metal processing workshops and industrial manufacturers that require reliable bar-cutting capabilities.

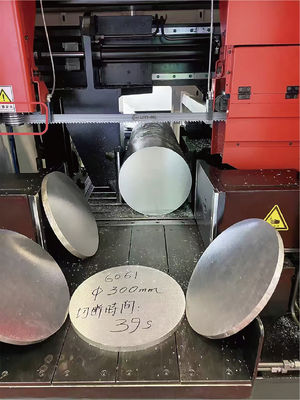

The A-33 can cut round bars up to Ø330 mm and square or angle-section materials up to 330 * 330 mm, making it suitable for processing large metal workpieces.

The saw band speed can be adjusted steplessly within a range of 20–100 m/min, allowing operators to select suitable speeds for different cutting conditions.

The hydraulic clamping mechanism helps secure workpieces during cutting, supporting stable positioning and consistent operation.

The hydraulic feeding system provides controlled material feeding during the cutting process, helping simplify workpiece handling.

The machine features a 0.75 kW hydraulic motor and an 80 L hydraulic fluid capacity to support its hydraulic clamping and feeding functions.

The machine features a practical operating configuration designed to facilitate routine operation and maintenance in industrial environments.

The A-33 Band Sawing Machine is suitable for industrial applications that require cutting large-diameter bars and square or angle-section metal materials.

Suitable for preparing metal bars and structural sections for subsequent fabrication and machining processes.

Can be used to cut metal stock for machinery components and other industrial parts.

Suitable for cutting round bars and square-section materials within the machine's specified cutting capacity.

Provides a practical cutting solution for workshops processing different metal workpieces in preparation for further manufacturing operations.

Suitable for cutting raw metal stock into required lengths before turning, milling, drilling, or other downstream machining processes.

Q1: What is your factory acceptance test method?

A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)

Q2: How about the payment term?

A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)

Q3: Does the band saw blade have any international certifications?

A: Yes, we have obtained CE, ISO international

A: The A-33 is designed for industrial metal-cutting applications. Its suitability for a specific production schedule depends on the workpiece material, cutting cycle, operating conditions, and required output. Contact us with your production requirements for a more detailed assessment.

A: Please share the material type, workpiece dimensions, required cutting lengths, and estimated daily cutting volume. Our team can evaluate your requirements against the machine's specifications and help determine whether the A-33 is an appropriate choice.
