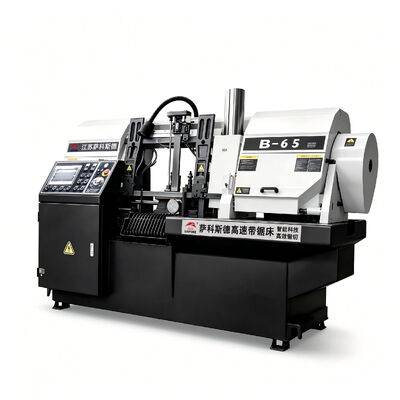

B65 Heavy-Duty Metal Band Saw Machine

Product Introduction

The B65 Heavy-Duty Metal Band Saw Machine is designed for high-capacity metal cutting applications, with a maximum cutting capacity of Ø650 mm for round bar and 650 × 650 mm for square and angle bar.

Equipped with hydraulic clamping, hydraulic feeding, and hydraulic saw band tensioning, the B65 provides stable workpiece handling and consistent saw band operation during heavy-duty cutting.

The machine features a 20–100 m/min saw band speed with frequency conversion, allowing the cutting speed to be adjusted according to different materials and cutting conditions. A 7.5 kW main motor, combined with a 1.5 kW hydraulic motor and 1.2 kW cooling motor, provides the power required for large-section metal cutting applications.

With its large cutting capacity and hydraulic operating systems, the B65 is suitable for demanding metal fabrication, steel processing, and industrial production environments.

Key Features

1. Large Cutting Capacity

The B65 is designed for large-section metal cutting, supporting:

· Round bar: up to Ø650 mm

· Square bar: up to 650 × 650 mm

· Angle bar: up to 650 × 650 mm

This makes it suitable for heavy-duty cutting applications involving large metal stock.

2. Hydraulic Saw Band Tensioning

Unlike models using manual band tensioning, the B65 is equipped with hydraulic saw band tensioning, helping maintain stable blade tension during operation.

3. Hydraulic Workpiece Clamping

The hydraulic clamping system securely holds large workpieces during cutting, helping improve cutting stability and operational safety.

4. Hydraulic Feeding System

The B65 uses hydraulic feeding for controlled material movement, making it suitable for continuous industrial metal cutting applications.

5. Variable Cutting Speed

The saw band speed is adjustable from 20 to 100 m/min through frequency conversion. This provides flexibility when cutting different materials and workpiece sizes.

6. Powerful 7.5 kW Main Motor

The B65 is equipped with a 7.5 kW main motor, providing the power required for its large cutting capacity.

7. Integrated Hydraulic and Cooling Systems

The machine includes a 1.5 kW hydraulic motor and 1.2 kW cooling motor, together with dedicated hydraulic and cutting-fluid capacities for industrial operation.

8. Heavy-Duty Machine Structure

With overall dimensions of approximately 3200 × 2400 × 1900 mm, the B65 is designed as a large-capacity industrial band sawing machine for heavy metal cutting applications.

Technical Specifications

Application

The B65 Metal Band Saw Machine is designed for large-section metal cutting and is suitable for a variety of industrial applications.

Heavy Steel Bar Cutting

The Ø650 mm round bar capacity makes the B65 suitable for cutting large-diameter steel bars and other large-section metal stock.

Square & Structural Steel Cutting

With a maximum square and angle bar capacity of 650 × 650 mm, the machine can be used for large structural metal components.

Metal Fabrication

The hydraulic clamping and feeding systems make the B65 suitable for fabrication workshops handling large and heavy workpieces.

Steel Processing

The large cutting capacity and variable saw band speed make the B65 suitable for steel processing operations requiring repeatable and efficient sawing.

Industrial Production

The combination of hydraulic feeding, hydraulic clamping, and hydraulic saw band tensioning makes the B65 suitable for demanding production environments.

FAQ

Q1: Where is your factory located?

A: Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.

Q2: What is your method of transaction?

A: We adopt the FOB(Free ON Board) transaction.

Q3: How about the payment term?

A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)

Q4:What is the feeding method of the B65?

A:The B65 uses hydraulic feeding for controlled workpiece movement.

Q5:Does the B65 have hydraulic clamping?

A:Yes. The machine is equipped with a hydraulic clamping system for securing workpieces during cutting.
