A-33 / B-33 / C-33 / B-65 Horizontal Metal Band Sawing Machine

The A-33 / B-33 / C-33 / B-65 Horizontal Metal Band Sawing Machine is designed for efficient and precise cutting of metal bars, square bars, angle bars and other metal stock.

The machine series features hydraulic clamping and hydraulic feeding, providing stable workpiece positioning and controlled feeding during the sawing process. Depending on the model, the machine can handle round bar stock up to Ø330 mm or Ø650 mm, with square and angle bar capacities of up to 330 * 330 mm and 650 * 650 mm respectively.

The A-33, B-33 and C-33 models are suitable for general metal cutting applications requiring a compact and practical sawing solution, while the larger B-65 is designed for cutting larger workpieces.

With features including easy operation, safe maintenance, precise cutting and diverse applications, this horizontal metal band saw machine can be used in a wide range of metalworking operations.

• A-33 – Ø330 mm round bar cutting capacity
• B-33 – Ø330 mm round bar cutting capacity
• C-33 – Ø330 mm round bar cutting capacity
• B-65 – Ø650 mm round bar cutting capacity

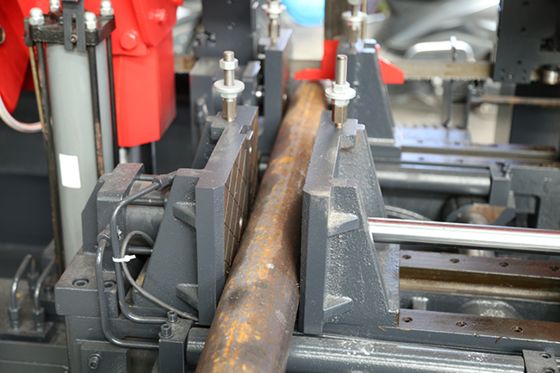

The machine adopts a hydraulic clamping system to secure the workpiece during cutting, helping maintain stable positioning throughout the sawing process.

Hydraulic feeding provides controlled material movement during the cutting process. This configuration is used across the A-33, B-33, C-33 and B-65 models.

The A-33 and B-33 are equipped with 20–100 m/min variable-frequency stepless speed regulation, allowing the saw band speed to be adjusted according to the cutting application.

The C-33 provides four selectable saw band speeds of 23, 43, 62 and 75 m/min.

The B-65 provides 20–100 m/min variable-frequency speed regulation.

The A-33, B-33 and C-33 provide a maximum round bar capacity of Ø330 mm, while the B-65 increases the maximum round bar capacity to Ø650 mm.

The machines are equipped with dedicated hydraulic systems. The A-33/B-33/C-33 use a 0.75 kW hydraulic motor, while the B-65 uses a 1.5 kW hydraulic motor.

The product documentation highlights the machine's suitability for diverse applications, together with easy operation, safe maintenance and precise cutting.

The A-33 / B-33 / C-33 / B-65 series can be used for cutting different types of metal stock, including:

The A-33, B-33 and C-33 can accommodate round bar stock up to Ø330 mm, while the B-65 can accommodate round bar stock up to Ø650 mm.

The A-33/B-33/C-33 models provide a square bar and angle bar capacity of 330 * 330 mm, while the B-65 provides 650 * 650 mm.

The machine is suitable for general metal stock sawing applications where hydraulic clamping, hydraulic feeding and adjustable saw band speed are required.

With multiple machine sizes and cutting capacities, the series can be selected according to the size of the workpieces being processed.

Q1: What is your method of transaction?

A: We adopt the FOB(Free ON Board) transaction.

Q2: Are you a manufacturer or a trading company?

A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.

Q3: How about your delivery time?

A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.

A: According to the supplied specifications, the three models have the same machine dimensions, cutting capacity, saw band size and motor powers. Their listed saw band speed configurations differ: A-33 and B-33 use 20–100 m/min variable-frequency stepless speed regulation, while C-33 provides 23/43/62/75 m/min.

A: The B-65 uses hydraulic saw band tension, while the A-33, B-33 and C-33 use manual saw band tension.
