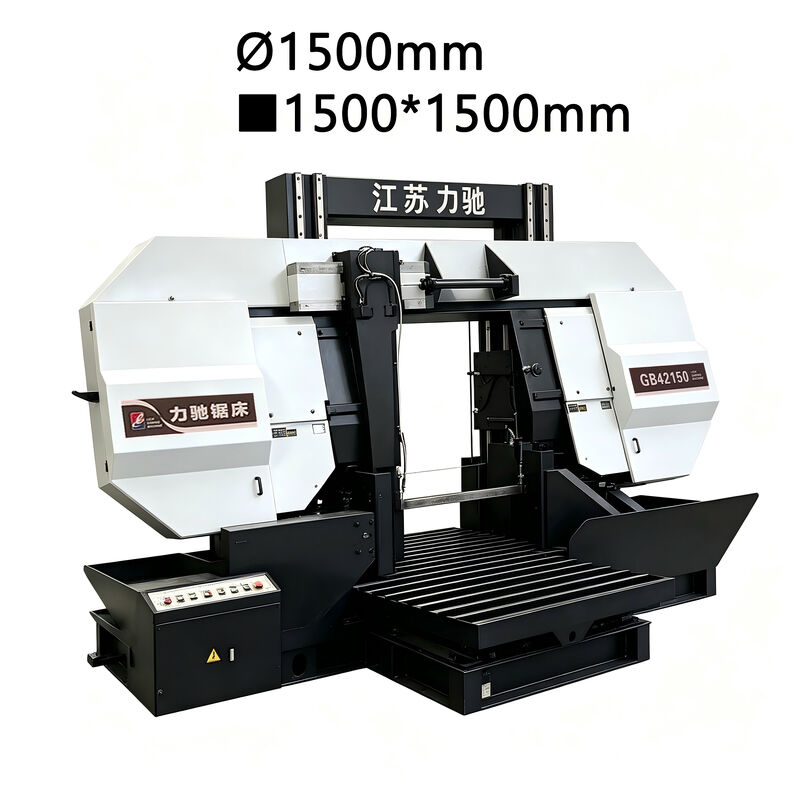

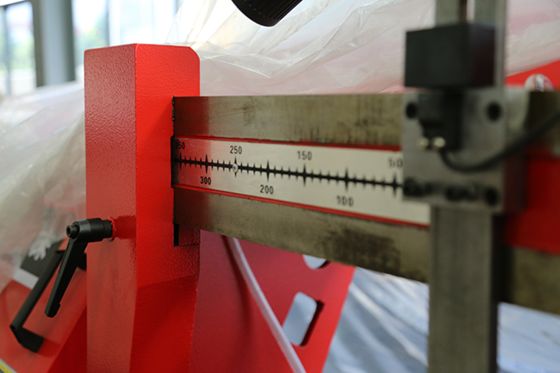

The GB42150 Gantry Horizontal Band Saw Machine is a heavy-duty metal cutting machine designed for large-scale and continuous sawing applications.
With a maximum cutting capacity of Ø1500 mm for round materials and 1500 * 1500 mm for square materials, the machine is designed for cutting large steel billets, seamless steel pipes, large shafts, and other oversized metal workpieces.
The GB42150 features a rigid dual-column gantry structure, powerful reducer-driven transmission, hydraulic clamping, hydraulic blade tensioning, variable-speed blade control, and a hydraulic platform automatic feeding system.
The machine is designed for efficient semi-automatic operation and can be used for long-term continuous production. With appropriate cutting parameters, it can also be used for ferrous and non-ferrous metals, round materials, and square materials.
Its robust structure, high rigidity, reliable hydraulic system, adjustable cutting speed, and automatic feeding functions make the GB42150 suitable for demanding heavy-duty metal cutting applications.
The machine is manufactured according to the current industry standard JB/T4318.1–4-2013 for horizontal band saw machines and is equipped with reliable safety protection systems.
Key Features
1. Heavy-Duty Gantry Structure
The GB42150 adopts a dual-column gantry structure designed for large and heavy workpieces.
The machine consists of a heavy-duty base, saw frame, saw frame lifting system, blade tensioning system, main transmission system, moving platform, guide-arm system, blade guide system, workpiece clamping system, hydraulic system, cooling system, and electrical control system.
The reinforced structure provides high static and dynamic rigidity, helping reduce vibration and maintain stable cutting performance during heavy-duty operations.
2. Extra-Large Cutting Capacity
This large cutting capacity makes the machine suitable for applications that cannot be handled by conventional metal band saws.

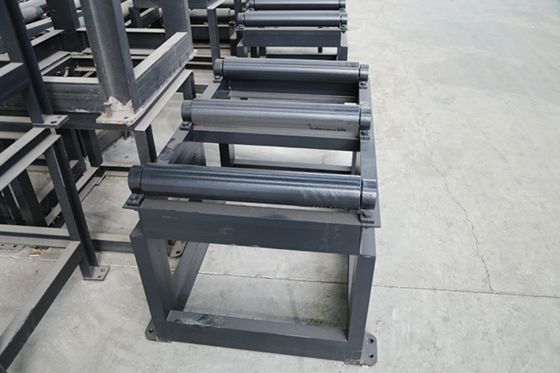

3. Hydraulic Platform Automatic Feeding
A major feature of this version is its hydraulic platform feeding system.
The hydraulic platform helps move large and heavy workpieces while reducing manual material handling and operator workload.
This design is particularly useful when processing large steel billets, pipes, shafts, and other heavy materials.
4. Powerful Reducer-Driven Main Transmission
The main drive motor is rated at 18.5 kW, providing strong cutting power for large workpieces. The blade speed is controlled by a vector frequency converter and can be continuously adjusted within the range of 20–80 m/min.
This allows the operator to select appropriate blade speeds for different materials and cutting conditions.
5. Dual Hydraulic Cylinder Saw Frame Lifting
During no-load descent, the fast-down hydraulic circuit allows the saw frame to approach the workpiece quickly, reducing auxiliary operation time.
The dual-column and dual-cylinder design provides stable saw frame movement during heavy-duty cutting.
6. Hydraulic Automatic Blade Tensioning
The blade tension can be preset by adjusting hydraulic pressure.
The system allows the blade to be tensioned when the machine is powered on and released when powered off, helping improve blade fatigue conditions and extend blade service life.
7. Adjustable Blade Speed for Different Materials
The machine uses a vector frequency converter to control blade speed.
The blade speed can be continuously adjusted from 20 to 80 m/min, allowing operators to adapt the cutting speed to different materials, dimensions, and cutting requirements.
8. Intelligent Sawing and Cutting Force Feedback
These systems are designed to improve sawing efficiency and help reduce operating costs.
The machine also monitors the main motor load. When an overload condition occurs, the system can automatically disconnect the power for protection.
9. Hydraulic Guide Arm Movement and Locking
The guide arms are hydraulically driven and can move along the guide rails.
After reaching the required position, the guide arms can be hydraulically locked.
This makes guide-arm adjustment more convenient and reduces auxiliary setup time when processing workpieces with different dimensions.
10. Reinforced Tungsten-Carbide Blade Guides
The blade guide system uses reinforced adjustable tungsten-carbide guide plates.
The guide structure helps maintain blade stability and improve cutting accuracy.
It is also designed to improve the force conditions of the blade when twisting occurs, reduce deformation and friction-related noise, and extend blade service life.
11. Automatic Blade Break Protection
The machine is equipped with an automatic blade-break detection and shutdown function.
When blade breakage is detected, the machine can automatically stop operation.
This helps protect the machine and workpiece while reducing the risk of continued operation after blade failure.
Technical Specifications
| Model |
Unit |
JSSCD-GB42150 |
| Maximum Round Cutting Capacity |
mm |
Ø1500 |
| Maximum Round Cutting Capacity |
mm |
1500*1500 |
| Main Drive Motor |
kw |
18.5 |
| Hydraulic Motor |
kw |
5.5 |
| Cooling Pump |
w |
450 |
| Saw Blade Width |
mm |
67 |
| Blade Speed |
m/min |
20-80 |
| Coolant Tank Capacity |
L |
150 |
| Hydraulic Tank Capacity |
L |
100 |
| Hydraulic Pressure |
Mpa |
4.5-5 |
| Feeding Stroke |
mm |
2500 |
| Platform Length |
mm |
3000 |
| Machine Length |
mm |
Approx.2600 |
| Machine Width |
mm |
Approx.7480mm/4480mm |
Applications
The GB42150 is designed primarily for large-scale and heavy-duty metal cutting.
Large Steel Billets
Suitable for cutting oversized steel billets where high machine rigidity and powerful cutting performance are required.
Seamless Steel Pipes
The large cutting capacity makes the machine suitable for large-diameter seamless steel pipe processing.
Large Shafts
Suitable for cutting large-diameter shafts and other heavy round workpieces.
Large Square Materials
The machine can process square materials up to 1500 * 1500 mm, making it suitable for large metal blocks and structural components.
Ferrous and Non-Ferrous Metals
With suitable cutting parameters, the GB42150 can also be used for selected ferrous and non-ferrous metal materials.
Continuous Heavy-Duty Production
The machine is designed for long-term continuous operation and can be used for year-round production in demanding industrial environments.
FAQ
Q1: Where is your factory located?
A: Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.
Q2: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q3: How about the payment term?
A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q4: What type of feeding system does this version use?
A: This version uses a hydraulic platform feeding system, with a 2500 mm feeding stroke and a 3000 mm platform length.
Q5: Is the feeding system suitable for large and heavy workpieces?
A: Yes. The hydraulic platform feeding system is designed to reduce manual handling and operator workload when processing large workpieces. The machine is specifically designed for large steel billets, seamless steel pipes, large shafts, and other oversized materials.
