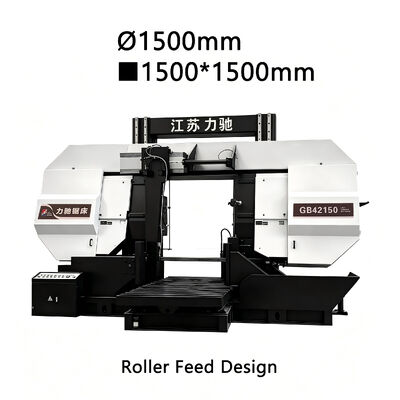

The GB42150 Gantry Horizontal Band Saw Machine is a heavy-duty horizontal band saw designed for high-capacity cutting of large metal workpieces.

Developed for demanding industrial applications, the machine is capable of cutting round materials up to φ1500 mm and square materials up to 1500 * 1500 mm. It is particularly suitable for large steel billets, seamless steel pipes, large shafts, and other oversized metal components. The machine can also be configured for cutting both ferrous and non-ferrous metals when appropriate cutting parameters are selected.

The GB42150 combines a heavy-duty gantry structure, dual-cylinder lifting system, variable-speed band saw control, hydraulic clamping, hydraulic blade tensioning, automatic feeding, and intelligent sawing technology to provide stable cutting performance for large-scale and continuous production.

Unlike conventional band saw machines designed for small and medium-sized workpieces, the GB42150 is built around one key requirement: maintaining sufficient rigidity, cutting force, and operational stability when processing extremely large metal sections.

With its powerful drive system and robust mechanical structure, the GB42150 is designed for manufacturers looking for a reliable alternative to expensive imported large-scale sawing equipment.

Key Features

1. Extra-Large Cutting Capacity

The GB42150 is designed specifically for oversized metal workpieces.

It provides a maximum cutting capacity of:

• Round material: up to φ1500 mm
• Square material: up to 1500 * 1500 mm

This makes the machine suitable for large steel billets, seamless pipes, large shafts, and other heavy-duty metal components that cannot be efficiently processed on conventional band saw machines.

2. Heavy-Duty Gantry Structure for High Rigidity

The GB42150 adopts a dual-column gantry structure with a reinforced saw frame and a dual-cylinder lifting system.

This rigid structure helps reduce vibration and supports stable cutting performance when processing large workpieces.

3. Intelligent Sawing and Cutting-Force Feedback

The machine combines its mechanical, hydraulic, and electrical systems with an intelligent sawing system and cutting-force feedback system.

This design is intended to improve sawing efficiency while helping reduce operating costs during heavy-duty cutting.

4. Hydraulic Blade Tensioning

The GB42150 uses a hydraulic blade tensioning system. The tension can be preset according to the required working condition.

The hydraulic tensioning mechanism allows the operator to adjust the band tension and helps improve the working condition of the blade. The design also allows the blade to be tensioned when powered and released when the machine is powered off, helping reduce unnecessary blade fatigue.

5. Reinforced Tungsten-Carbide Blade Guides

The machine uses reinforced adjustable tungsten-carbide guide inserts for band blade guidance.

The guide system is designed to improve blade support and cutting accuracy while helping reduce the effects of blade deformation and friction.It also helps reduce operating noise and extend band blade service life.

6. Hydraulic Dual-Clamp System for Large Workpieces

The GB42150 uses front and rear hydraulic clamps to secure the workpiece.

The dual-clamp design helps prevent workpiece movement during cutting and provides a stable foundation for cutting accuracy.

7. Automatic Hydraulic Feeding System

The GB42150 is equipped with a 3-meter hydraulic platform automatic feeding system.

The feeding system is designed to reduce manual handling and operator workload while improving material positioning efficiency.

The machine specifications also list a roller-type material rack for feeding, providing a practical solution for handling large workpieces.

8. Variable Feed Speed for Different Materials

The feed speed of the GB42150 can be adjusted continuously within the specified operating range.

This allows operators to adjust cutting conditions according to:

• Material type
• Workpiece size
• Cross-sectional area
• Cutting resistance
• Required production efficiency

The result is greater flexibility when processing different large metal workpieces.

9. Automatic Blade Break Detection

Blade failure during heavy-duty cutting can cause downtime and potentially damage the workpiece or machine.

The GB42150 is equipped with an automatic blade-break detection and shutdown function.

10. Water Cooling System for Extended Blade Life

Cooling fluid is delivered directly to the cutting area to cool both the band blade and workpiece.

The cooling system helps control cutting temperature and assists in removing chips from the teeth, which can contribute to longer blade service life. The coolant can also be collected and reused.

11. Powered Chip Brush for Cleaner Cutting

The machine is equipped with a powered steel brush chip-cleaning system.

During sawing, the brush removes chips from the band blade more thoroughly, helping prevent residual chips from causing secondary cutting.

This can reduce the risk of tooth stripping and blade breakage while making chip collection easier.

Technical Specifications

Application

The GB42150 is designed for large-scale and heavy-duty metal cutting applications.

Large Steel Billets

The machine can process large steel billets with cross-sections up to 1500 * 1500 mm, making it suitable for steel processing and heavy manufacturing applications.

Large Seamless Steel Pipes

With a maximum round cutting capacity of φ1500 mm, the machine can be used for cutting large-diameter seamless pipes and other tubular components.

Large Shafts

The heavy-duty gantry structure and hydraulic clamping system provide a suitable configuration for large shaft cutting.

Steel and Metal Processing

With appropriate cutting parameters, the machine can be used for both ferrous and non-ferrous metal materials.

Heavy Equipment Manufacturing

The large cutting capacity makes the GB42150 suitable for manufacturers processing oversized components for heavy machinery and industrial equipment.

Continuous Production

The machine is designed for long-term operation and can be used for continuous production applications when appropriate cutting parameters are selected.

FAQ

Q1: How about your delivery time?

A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.

Q2: What is your factory acceptance test method?

A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)

Q3: Are you a manufacturer or a trading company?

A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.

Q4: How is the blade tension controlled?

A: The machine uses a hydraulic blade tensioning system, allowing the blade tension to be adjusted according to the required cutting conditions.

Q5: Does the machine have automatic feeding?

A: Yes. The machine is equipped with a 3-meter hydraulic platform automatic feeding system and a roller-type material feeding structure to reduce manual handling requirements.
