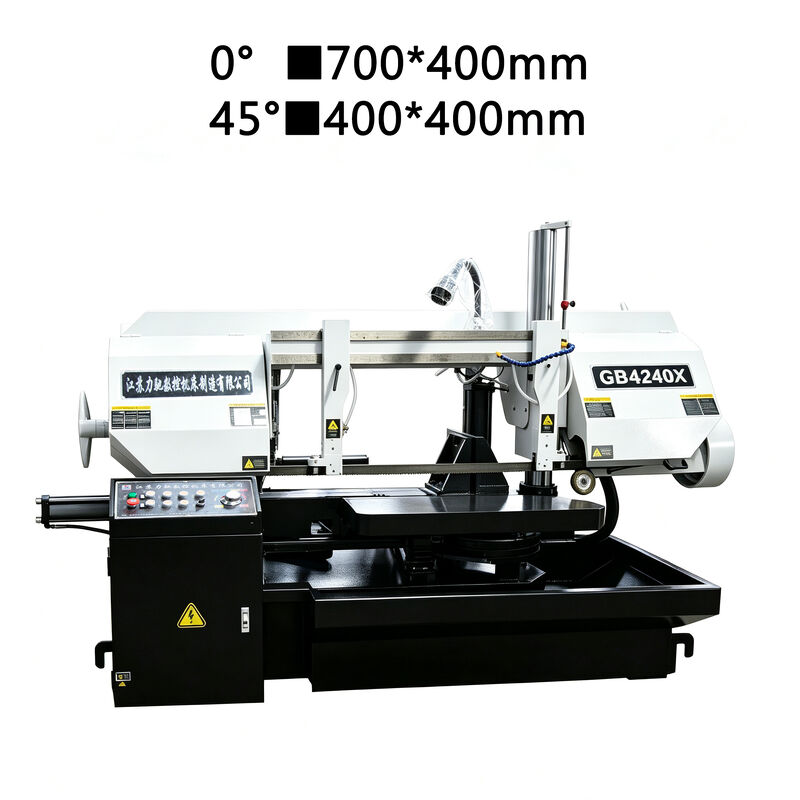

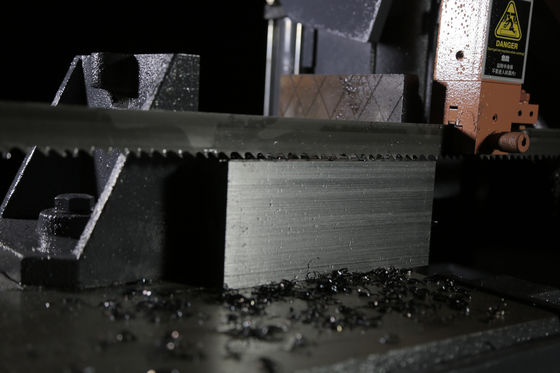

The GB4240X 45° Angle Cutting Horizontal Band Saw Machine is a rotary angle band saw designed for metal cutting applications requiring both straight and angled cuts. The saw frame can be manually rotated from 0° to 45°, with an angle scale for positioning and hydraulic locking to help maintain the selected cutting angle.
The machine adopts a welded box-type machine bed and a hydraulic workpiece clamping system. The workpiece can be clamped hydraulically or manually, while the saw frame uses hydraulic control for fast down, working feed, and fast return movements. The saw frame has a travel range of 0–400 mm.
The GB4240X uses a four-speed belt-pulley system to provide four blade speeds, allowing the operator to select an appropriate cutting speed for different materials. Blade feed is controlled by hydraulic stepless speed regulation, providing flexible control of the cutting process.
Key Features
1. 0°–45° Adjustable Angle Cutting
The saw frame can be manually rotated continuously from 0° to 45°, making the machine suitable for both straight cutting and angle-cutting applications. An angle scale is provided for angle positioning, while hydraulic locking secures the selected position.
2. Hydraulic Workpiece Clamping
The clamping system consists of a worktable, clamping cylinder, movable vise jaw and fixed vise. Operators can control the vise clamping and releasing functions from the control panel according to the workpiece requirements.
3. Hydraulic Stepless Blade Feed
The blade feed speed is controlled hydraulically and can be adjusted steplessly through the speed control valve on the operating panel. This allows the cutting feed rate to be adjusted according to the material and cutting conditions.
4. Four-Speed Blade Speed Selection
The machine provides four blade speeds of 30 / 45 / 60 / 80 m/min through a belt-pulley speed-changing system. This allows different cutting speeds to be selected for different materials and applications.
5. Rigid Welded Box-Type Machine Bed
The machine bed uses a welded box-type structure designed to support the columns, saw frame, hydraulic system and other functional components. The internal cavity also serves as the hydraulic oil tank and coolant tank.
6. Adjustable Blade Guide System
The blade guide system consists of left and right guide arms and guide heads. Each guide head incorporates guide rollers, upper guide blocks and side guide blocks. The left guide arm can be adjusted according to the size of the workpiece.
7. Hydraulic Saw Frame Movement
The hydraulic cylinder controls the saw frame's fast-down, working-feed and fast-return movements. The saw frame has a 0–400 mm travel range, providing controlled vertical feeding during cutting.
8. Integrated Cooling System
The cooling system includes a coolant tank, pump, piping, valves and nozzles. Coolant is supplied to the cutting area to improve cutting performance, extend blade service life, improve cut-section quality and help remove chips from the blade teeth.
Technical specifications
| Model |
Unit |
JSSCD-GB4240X |
| Cutting Angle |
|
0°-45° |
| Cutting Capacity at 0° |
mm |
Ø700/Square 400*400 |
| Cutting Capacity at 45° |
mm |
Square 400*400mm |
| Blade Speed |
m/min |
30/45/60/80 |
| Blade Width |
mm |
41 |
| Saw Frame Travel |
mm |
0-400 |
| Main Motor Power |
kw |
4 |
| Hydraulic Motor Power |
kw |
0.75 |
| Coolant Pump Motor |
w |
60 |
Application

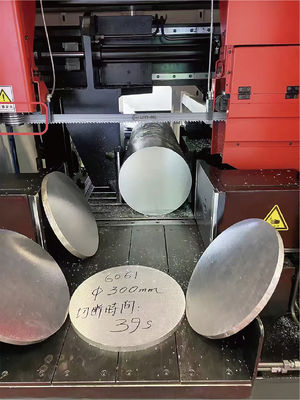

The GB4240X is designed for metal sawing applications where both straight and angled cutting are required. Its 0°–45° rotary saw frame allows operators to process workpieces at different cutting angles without requiring a separate angle-cutting machine.
Typical applications include:
- Metal bar cutting
- Round bar cutting
- Square and rectangular material cutting
- Structural steel cutting
- Fabrication and metalworking
- General steel stock preparation
- Angle cutting for fabricated components
- Workshops requiring both 0° and 45° cutting
The machine's four blade speeds and hydraulic stepless feed allow operators to adjust cutting conditions according to different materials and workpiece requirements.
FAQ
Q1: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.
Q2: Where is your factory located?
A: Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.
Q3: How about the payment term?
A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q4: How is the workpiece clamped?
A: The machine uses a hydraulic clamping system consisting of a worktable, clamping cylinder, movable vise jaw and fixed vise. The vise can be controlled from the operating panel.
Q5: What type of material feeding system does the machine use?

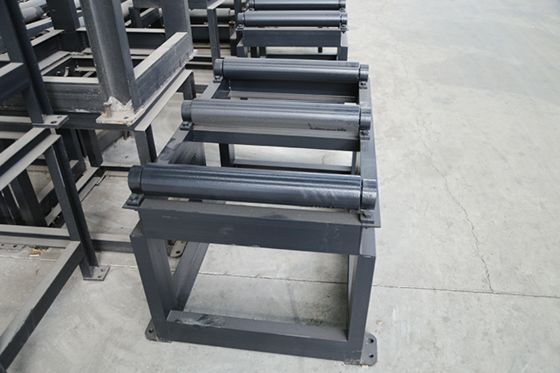

A: The standard configuration uses manual feeding and is equipped with a standard roller-type auxiliary material rack.
