GB4028X45 Angle Metal Band Saw for Alloy Steel Copper Alloy Used in Pipeline Engineering

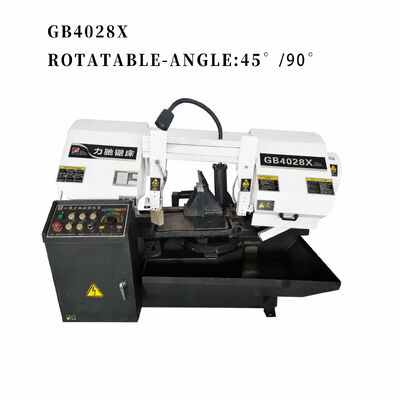

The GB4028X45° Angle Cutting Horizontal Band Saw Machine is designed for straight and angled cutting of metal workpieces. Featuring a manually adjustable cutting angle from 0° to 45°, this machine offers flexibility for different cutting requirements in metal fabrication and industrial manufacturing.

The machine adopts a cast-iron bed structure and a hydraulic feeding system to support stable cutting operations. Its hydraulic cylinder enables stepless adjustment of the feed rate, including working feed, rapid feed, and rapid return. The four-speed saw blade system allows operators to select an appropriate cutting speed according to the material being processed.

With a narrow kerf, efficient material utilization, and a convenient clamping system, the GB4028X45° provides a practical solution for workshops that require both straight and angled metal cutting.

The machine supports manual angle adjustment from 0° to 45°, allowing operators to perform straight cuts and angled cuts on different metal workpieces. The manual positioning mechanism provides flexibility for various production requirements.

The hydraulic cylinder supports stepless feed adjustment, including working feed, rapid feed, and rapid return. This allows operators to adjust the cutting process according to the workpiece and operating requirements.

The saw blade offers four selectable linear speeds of 30, 45, 60, and 80 m/min. Operators can select a suitable speed for different cutting conditions and material requirements.

The cast-iron bed supports the main machine components, including the columns, saw frame, and hydraulic pump station. Its internal cavity also serves as the hydraulic oil tank and coolant reservoir.

The clamping system consists of a worktable base, hydraulic clamping cylinder, movable jaw, and fixed vise. Operators can control clamping and release through the operating panel to secure workpieces during cutting.

The blade guide assembly includes left and right guide arms, guide rollers, and guide blocks. The left guide arm can be adjusted according to workpiece dimensions to support proper blade guidance.

The coolant system supplies cutting fluid to the cutting area to help improve cutting conditions, remove chips from the blade teeth, and extend saw blade service life.

The machine uses a manual blade tensioning mechanism to adjust the position and tension of the saw blade, helping maintain proper blade tracking during operation.

The GB4028X45° Angle Cutting Horizontal Band Saw Machine is suitable for metalworking applications requiring straight and angled cutting.

Typical applications include:

Metal Fabrication Workshops: Cutting metal sections and workpieces to specified lengths and angles.

Steel Processing: Preparing metal stock for subsequent machining, fabrication, or assembly.

Machinery Manufacturing: Cutting raw materials into components for further processing.

Industrial Maintenance: Cutting replacement parts and metal stock for repair and maintenance work.

General Manufacturing: Processing suitable metal workpieces where flexible angle adjustment is required.

The machine can be used for straight cutting at 90° and angled cutting at settings between 0° and 45°. Actual cutting suitability depends on the material type, workpiece dimensions, and cutting conditions.

Q1: Are you a manufacturer or a trading company?

A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.

Q2: Where is your factory located?

A: Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.

Q3: What is your factory acceptance test method?

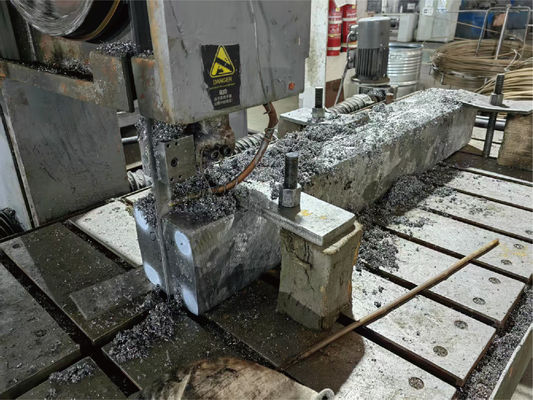

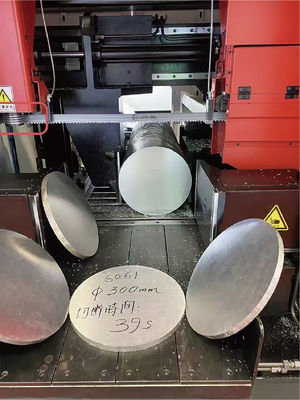

A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)

The machine uses a hydraulic clamping system with a movable jaw and a fixed vise. Clamping and release are controlled through the operating panel.

Buyers should confirm the workpiece material, maximum cross-sectional dimensions, required cutting angles, cutting accuracy requirements, and expected production volume. These details help determine whether the GB4028X45° is suitable for the intended application.
