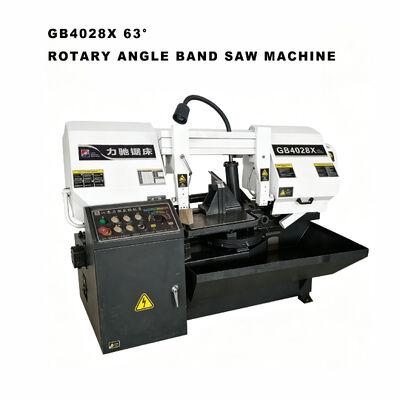

0‑63 Degree Rotatable GB4028X63 Band Saw Cutting Aluminum Alloy for Building Material

The GB4028X63° Angle Cutting Horizontal Band Saw Machine is designed for metal cutting applications that require both straight cuts and angled cuts. With a manually adjustable cutting angle from 0° to 63°, the machine offers flexibility for processing metal workpieces at different angles.

The machine features a welded box-type bed structure, a hydraulic feeding system, and a mechanical transmission system driven by a worm gear reducer. Its hydraulic cylinder supports stepless feed adjustment, including working feed, rapid feed, and rapid return, helping operators adapt the cutting process to different workpiece requirements.

Equipped with four selectable saw blade speeds and a hydraulic workpiece clamping system, the GB4028X63° is suitable for metal fabrication, steel processing, and general industrial manufacturing. Its narrow cutting kerf helps reduce material waste, while the integrated coolant system supports cutting performance and saw blade service life.

The machine supports manual cutting angle adjustment from 0° to 63°, allowing operators to perform straight and angled cuts for different manufacturing and fabrication requirements.

The hydraulic cylinder provides stepless adjustment of the feed rate, including working feed, rapid feed, and rapid return. This enables operators to adapt the cutting process to different materials and workpiece dimensions.

The saw blade operates at four selectable linear speeds: 30, 45, 60, and 80 m/min. This gives operators flexibility when selecting cutting conditions for different applications.

The machine bed adopts a welded box-type structure designed to support the main machine components, including the columns, saw frame, and hydraulic pump station. The internal cavity also serves as the hydraulic oil tank and coolant reservoir.

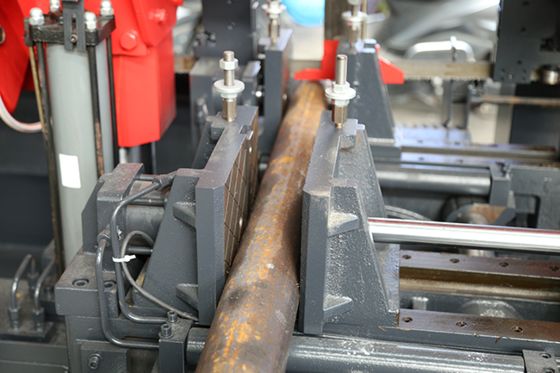

The clamping assembly consists of a worktable base, hydraulic cylinder, movable jaw, and fixed vise. The operating panel controls clamping and release to secure the workpiece during cutting.

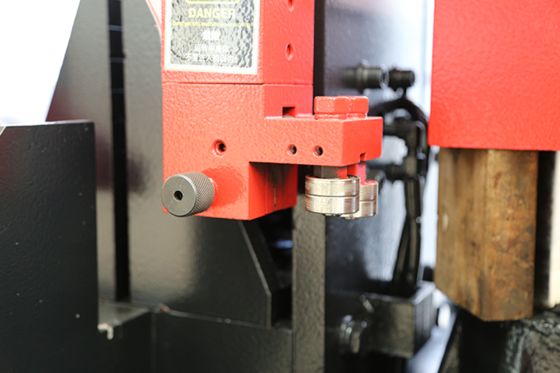

The blade guide system includes left and right guide arms, guide rollers, and guide blocks. The left guide arm can be adjusted according to the dimensions of the workpiece to support proper blade guidance.

The coolant system supplies cutting fluid to the cutting area through a pump, pipes, valves, and nozzles. It helps remove chips from the blade teeth, improve cutting conditions, and support blade service life and cutting accuracy.

The machine uses a manual blade tensioning mechanism. The specified blade tensioning bolt torque is 50–60 N·m, as stated in the supplied technical document.

The GB4028X63° Angle Cutting Horizontal Band Saw Machine is suitable for industrial metal cutting applications that require flexible angle adjustment and different cutting capacities.

Typical applications include:

Steel Processing: Cutting steel stock and metal sections into required lengths and angles.

Metal Fabrication: Preparing workpieces for welding, assembly, and structural fabrication.

Machinery Manufacturing: Cutting metal materials for machine components and subsequent machining processes.

Industrial Equipment Production: Preparing angled metal components for equipment frames and fabricated structures.

General Metalworking Workshops: Handling a variety of straight and angled cutting tasks in daily production.

With its adjustable cutting angle and multiple blade speeds, the machine can support different workpiece requirements. Actual cutting suitability depends on the material grade, cross-sectional dimensions, blade selection, and cutting conditions.

Q1: What is your method of transaction?

A: We adopt the FOB(Free ON Board) transaction.

Q2: How about your delivery time?

A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.

Q3: How about the payment term?

A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)

The hydraulic feeding system supports stepless adjustment of the feed rate, including working feed, rapid feed, and rapid return. This allows operators to adapt the feed process to the workpiece and cutting requirements.

The coolant system supplies cutting fluid to the cutting area to help improve cutting conditions, remove chips from the blade teeth, and support blade service life and cutting accuracy.
