The GB4028X63° Angle Horizontal Band Saw Machine is a heavy-duty metal cutting machine designed for applications requiring both straight cutting and flexible angled cutting. The saw bed can be manually rotated and positioned at any angle from 0° to 63°, providing greater flexibility for processing angled metal components.
The machine adopts a welded box-type machine bed, worm gear transmission, adjustable saw band guiding system, hydraulic workpiece clamping, manual saw band tensioning, and a dedicated coolant circulation system. These features provide a stable cutting platform while maintaining convenient operation and maintenance.

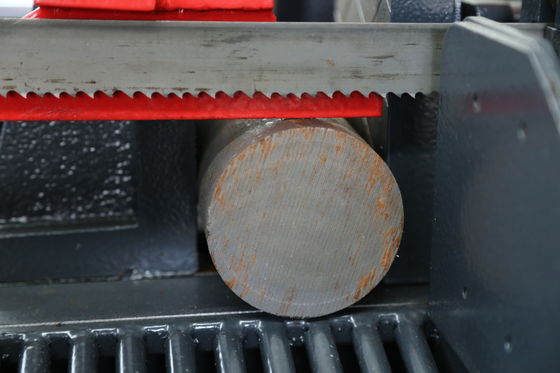

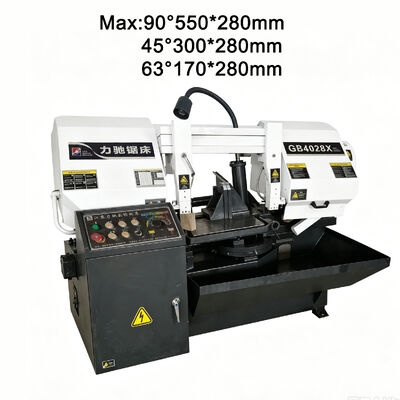

The GB4028X63° is capable of a maximum effective sawing height of 280 mm. Its cutting capacity varies according to the cutting angle, reaching 550 * 280 mm at 90°, 300 * 280 mm at 45°, and 170 * 280 mm at 63°.
The machine uses hydraulic stepless feed adjustment and offers four saw band speeds of 30, 45, 60, and 80 m/min, allowing operators to select an appropriate cutting speed for different materials and cutting conditions.
Key Features
1. Wide 0°–63° Angle Cutting Range
The saw bed can be manually rotated from 0° to 63° and positioned at the required cutting angle. The wider angle range makes the machine suitable for components requiring different angled cuts.
2. Large Straight-Cutting Capacity
At 90°, the machine provides a maximum cutting capacity of 550 * 280 mm, making it suitable for relatively large metal workpieces.
3. Multiple Angle Cutting Capacities
The machine maintains different cutting capacities according to the selected angle:
- 90°: 550 * 280 mm
- 45°: 300 * 280 mm
- 63°: 170 * 280 mm
This allows users to select the appropriate angle according to the workpiece requirements.
4. Hydraulic Stepless Feed Adjustment
The hydraulic cylinder provides stepless adjustment for working feed, fast feed, and fast return, allowing operators to control the saw frame movement according to the cutting conditions.
5. Four-Speed Saw Band Selection
The saw band provides four selectable speeds:
- 30 m/min
- 45 m/min
- 60 m/min
- 80 m/min
This enables flexible cutting speed selection for different metal materials and workpiece conditions.
6. Rigid Welded Box-Type Machine Bed
The machine bed adopts a welded box-type structure designed to support the columns, saw frame, hydraulic pump station, and other major components. The internal cavity is also used as the hydraulic oil tank and coolant reservoir.
7. Stable Worm Gear Transmission
The main transmission uses a worm gear reducer. The motor, pulley, reducer, and drive wheel work together to drive the saw band, while a stepped pulley system provides different saw band speeds.
8. Adjustable Saw Band Guiding System
The saw band guiding system consists of left and right guide arms and guide heads equipped with guide rollers and guide blocks. The left guide arm can be adjusted according to the workpiece size.
9. Hydraulic Workpiece Clamping
The clamping system consists of the worktable, hydraulic cylinder, movable jaw, and fixed vise. Operators can control the vise clamping and releasing through the control panel.
10. Manual Saw Band Tensioning
The saw band tensioning mechanism uses the driven wheel, slide seat, slide block, and tensioning screws. The driven wheel can be adjusted to keep the saw band properly aligned between the drive and driven wheels.
11. Efficient Cooling System
The cooling system supplies sufficient coolant to the cutting area through a pump, piping, valves, and nozzles. This helps improve cutting performance, cutting surface quality, and saw band service life while assisting chip removal from the saw teeth.
12. Material-Saving Cutting
The machine is designed with a relatively narrow saw kerf, helping reduce material loss during cutting. The manufacturer also identifies material saving and energy saving as key advantages of the machine.
Technical Specifications
| Model | Unit | JSSCD-GB4028X 63° |
|---|
| Maximum Effective Sawing Height | mm | 280 |
|---|
| Maximum Cutting Capacity at 90° | mm | 550*280 |
|---|
| Maximum Cutting Capacity at 63° | Mm | 170*280 |
|---|
| Main Motor Power | kw | 3 |
|---|
| Hydraulic Motor Power | kw | 0.55 |
|---|
| Cooling Pump Power | w | 40 |
|---|
| Saw Band Size | mm | 4115*34 |
|---|
| Saw Band Speed | m/min | 30/45/60/80 |
|---|
| Angle Cutting Range | | 0°-63° |
|---|
Applications
The GB4028X63° Angle Horizontal Band Saw Machine is suitable for metal processing applications requiring flexible angle cutting and relatively large cutting capacity.
Typical Applications

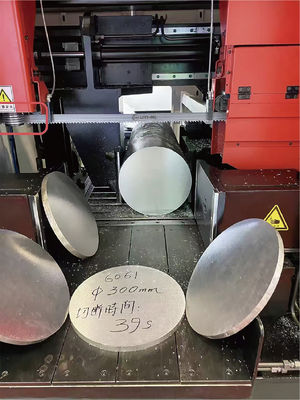

- Steel bar cutting
- Structural steel cutting
- Metal profile cutting

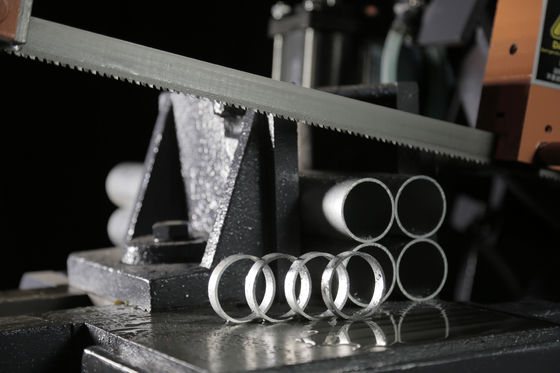

- Pipe and tube cutting
- Square and rectangular profile cutting
- Steel fabrication
- Machinery component preparation
- Angled component processing
- General metalworking
- Workshop metal cutting
- Preparation of components for further machining
The 0°–63° manual angle adjustment makes the GB4028X63° particularly suitable for applications where different cutting angles are required within the same production process.
FAQ
Q1: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q3: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.
Q4: Can the machine perform both straight and angled cuts?
A: Yes. The machine can perform straight cutting at 90° and angled cutting from 0° to 63°.
Q5: How is the saw band tension adjusted?
A: The saw band tension is adjusted manually through the tensioning mechanism on the driven wheel side.
