GB4028X 45 Rotary Horizontal Band Saw Machine For Multi Angle Metal Bar Cutting

The GB4028X45° Angle Horizontal Band Saw Machine is designed for metal cutting applications requiring flexible angle cutting from 0° to 45°. The machine combines automatic sawing, electromechanical control, hydraulic feeding, hydraulic clamping, and manual angle positioning to provide an efficient solution for angled metal cutting.

The saw beam can be manually rotated to any angle between 0° and 45°, allowing operators to process workpieces at different cutting angles without complicated setup procedures.

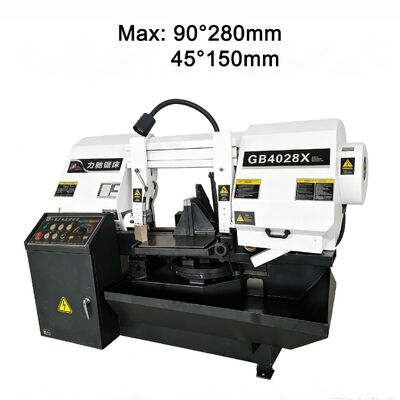

With a maximum effective sawing height of 280 mm and a maximum cutting width of 280 mm at 90° and 150 mm at 45°, the GB4028X45° is suitable for a wide range of metal profiles, bars, pipes, and structural components.

The machine features a narrow kerf, which helps reduce material waste and cutting costs. Its adjustable saw band speed, hydraulic feed system, dedicated cooling system, and stable machine structure contribute to efficient and accurate metal cutting.

1. 0°–45° Flexible Angle Cutting

   The machine features a manual rotary mechanism that allows the saw bed to be positioned at any angle from 0° to 45°. This provides flexibility for applications requiring angled cuts.

2. Automatic Sawing Operation

   The GB4028X45° supports automatic sawing and electromechanical control, helping simplify operation and improve production efficiency.

3. Hydraulic Stepless Feed Control

   The hydraulic cylinder provides stepless adjustment of the working feed, fast feed, and fast return movements, allowing operators to adjust the cutting process according to the workpiece and cutting requirements.

4. Narrow Kerf and Material Saving

   The relatively narrow saw kerf helps reduce material loss during cutting, making the machine suitable for applications where material utilization is important.

5. Hydraulic Workpiece Clamping

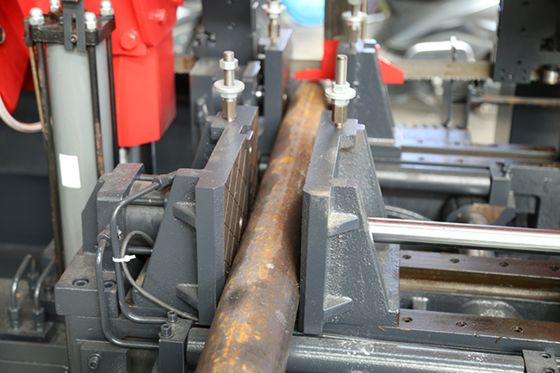

   The workpiece clamping mechanism consists of a worktable, hydraulic clamping cylinder, movable jaw, and fixed vise. The vise can be controlled from the operating panel for convenient workpiece clamping and release.

6. Four-Speed Saw Band Control

   The saw band speed can be selected from four settings:

   • 30 m/min
   • 45 m/min
   • 60 m/min
   • 80 m/min

   This allows the machine to accommodate different cutting requirements.

7. Stable Cast Machine Bed

   The machine bed adopts a cast structure and supports the columns, saw frame, hydraulic pump station, and other major components. The internal space also serves as the hydraulic oil tank and coolant reservoir.

8. Adjustable Saw Band Guiding System

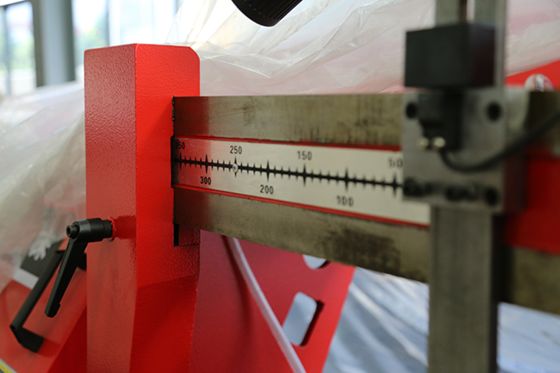

   The saw band guiding system consists of left and right guide arms and guide heads. The left guide arm can be adjusted according to the size of the workpiece, helping maintain appropriate saw band guidance during cutting.

9. Adjustable Saw Band Tension

   The saw band tensioning mechanism consists of the driven wheel, sliding seat, slide block, and tensioning screw. The structure allows adjustment of the driven wheel position to keep the saw band properly aligned between the drive and driven wheels.

10. Efficient Cooling System

    The cooling system consists of a coolant tank, cooling pump, piping, valve, and nozzles. Coolant is supplied directly to the cutting area to improve cutting performance, help extend saw band life, improve cut quality, and remove chips from the teeth.

The GB4028X45° Angle Horizontal Band Saw Machine is suitable for metal processing applications where both straight and angled cutting are required.

• Steel bar cutting

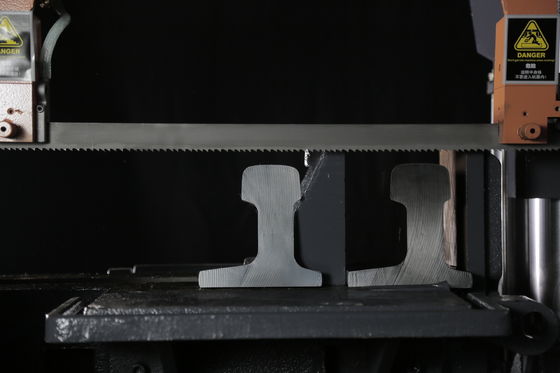

• Structural steel cutting
• Metal profile cutting

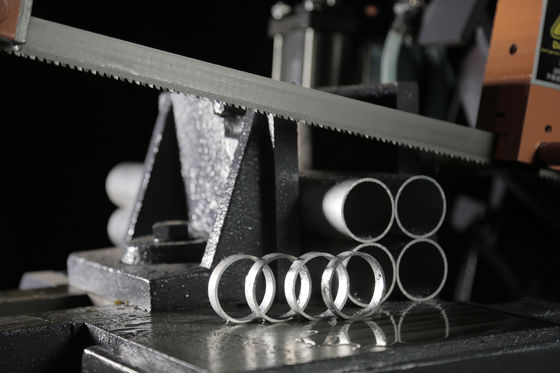

• Pipe and tube cutting
• Square and rectangular profile cutting
• Machinery component preparation
• Steel fabrication
• General metalworking
• Angled component preparation
• Workshop and production line cutting

The machine is particularly suitable for applications requiring 0°–45° angle cutting, where reducing material waste and maintaining efficient cutting operations are important.
