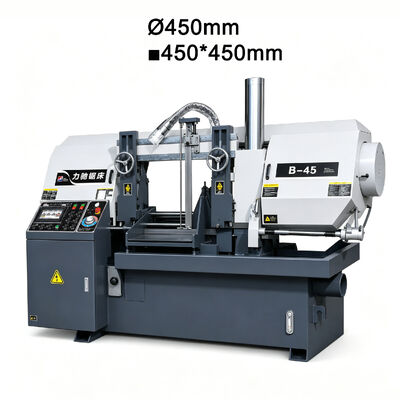

The B-45 CNC Horizontal Band Saw Machine is a high-capacity CNC metal cutting machine designed for efficient and stable cutting of round, square, and other metal workpieces up to 450 mm in cutting capacity.
The machine combines variable-frequency saw band speed control, intelligent stepless feed adjustment, full hydraulic workpiece clamping, hydraulic feeding, magnetic scale positioning, automatic chip removal, and automatic safety protection. These features make the B-45 suitable for demanding metal processing environments where cutting stability, positioning accuracy, productivity, and operator safety are important.
The B-45 adopts a rigid machine structure with a welded and cast construction, precision saw band guiding components, hydraulic systems, and an automatic cooling and chip removal system. Its positioning accuracy can reach 0.2 mm, while the saw band speed can be adjusted from 20 to 100 m/min according to cutting requirements.
The machine supports both manual and automatic operation, and is equipped with a touch-screen interface and physical control buttons for convenient operation.
Key Features
1. Large Cutting Capacity
The B-45 can cut round materials up to Φ450 mm and square/plate materials up to 450 * 450 mm, making it suitable for medium- to large-size metal workpieces.
2. Variable-Frequency Saw Band Speed
The saw band speed is adjustable from 20–100 m/min through variable-frequency control, allowing operators to select an appropriate cutting speed for different materials and working conditions.
3. Intelligent Stepless Feed Control
The feeding speed adopts intelligent stepless adjustment, providing flexible control of the saw frame feed rate during the cutting process.
4. Full Hydraulic Clamping
The workpiece is clamped hydraulically throughout the cutting process. The hydraulic clamping system is designed to accommodate workpieces made from different materials and improve cutting stability.
5. Hydraulic Feeding with Magnetic Scale Positioning
The rear worktable uses a hydraulic feeding system combined with a magnetic scale positioning system, providing positioning accuracy of up to 0.2 mm.
6. Automatic Safety Protection
The machine includes multiple safety functions, including:
- Saw band breakage automatic shutdown
- Stall automatic shutdown
- Overload protection
- Material clamping detection
- No-material detection
- Automatic shutdown when the saw band is broken
These functions help protect the machine, saw band, and operator during operation.
7. Stable Saw Band Guiding System
The saw band guiding system uses guide heads and tungsten carbide guide plates to maintain proper saw band alignment. The carbide components offer high strength and wear resistance.
8. Automatic Chip Removal
A powered steel brush removes chips from the saw band, while the screw chip conveyor automatically transfers saw chips into the collection box. This helps reduce secondary cutting caused by accumulated chips and facilitates chip collection.
9. Efficient Cooling System
The cooling system automatically operates when the saw band starts. Cooling fluid is delivered to the saw band and cutting area to improve cooling performance and help extend saw band service life.
10. Manual and Automatic Operation
The B-45 supports both manual and automatic operation. The centralized control panel combines a color touch screen with physical buttons for convenient machine control.

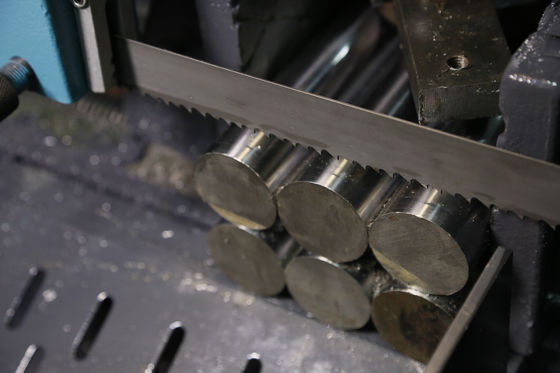

11. Bundle Cutting Capability
The machine is equipped with a bundle cutting device, allowing multiple workpieces to be processed together when suitable for the application.
12. Heavy-Duty Load Capacity
The machine and feeding system are designed for heavy workpieces. Both the overall machine loading capacity and feeding table capacity are specified at 5 tons.
Technical specifications
| Model |
Unit |
JSSCD-B-45 |
| Maximum cutting capacity-round |
mm |
Ø450 |
| Maximum cutting capacity-square/plate |
mm |
450*450 |
| Saw band speed |
m/min |
20-100 |
| Saw band size |
mm |
1.3*41*5420 |
| Main motor power |
kw |
5.5 |
| Hydraulic pump power |
kw |
1.5 |
| Cooling pump power |
w |
60 |
| Hydraulic tank capacity |
L |
80 |
| Cooling tank capacity |
L |
50 |
| Maximum single feeding length |
mm |
600 |
| Overall load capacity |
tons |
5 |
| Feeding table load capacity |
tons |
5 |
| Overall dimensions |
mm |
2450*2700*2260 |
| Machine weight |
tons |
Approx.3.5 |
Applications
The B-45 CNC Horizontal Band Saw Machine is designed for a wide range of metal cutting applications, particularly where large workpiece capacity, hydraulic clamping, accurate positioning, and automated cutting are required.
Typical Applications
- Steel bar cutting
- Round steel cutting
- Square steel cutting
- Plate and block cutting
- Shaft and forged component cutting
- Metal fabrication
- Steel processing
- Machinery manufacturing
- General metalworking
- Preparation of metal components for further machining
- Batch and bundle cutting applications
With a maximum cutting capacity of Φ450 mm for round materials and 450 * 450 mm for square/plate materials, the B-45 is suitable for processing relatively large metal workpieces.
FAQ
Q1: How about the payment term?
A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q2: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q3: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q4: Does the B-45 use hydraulic clamping?
A: Yes. The machine uses full hydraulic workpiece clamping for stable workpiece fixation.
Q5: What types of materials can the B-45 cut?
A: The B-45 is designed for cutting various metal workpieces, including round steel, square steel, plates, bars, shafts, and other large metal components.
