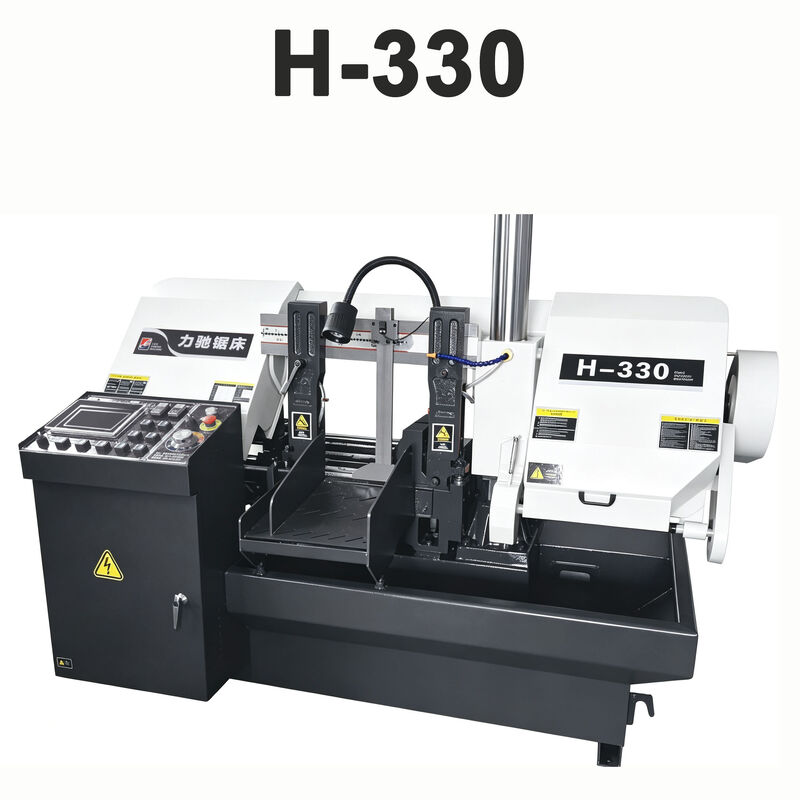

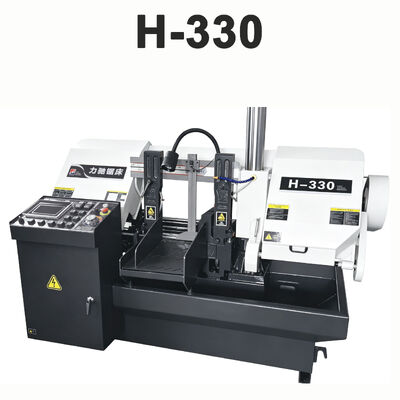

H-330 Semi Automatic Metal Band Saw Machine Hydraulic Cutting Equipment

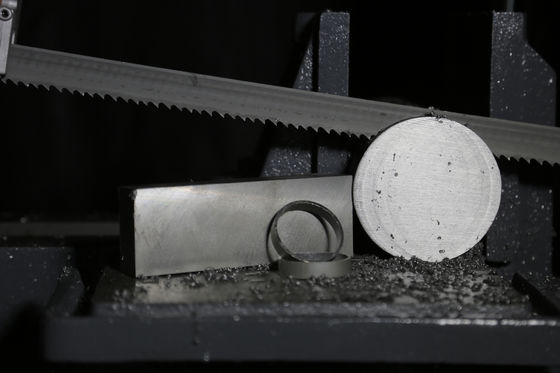

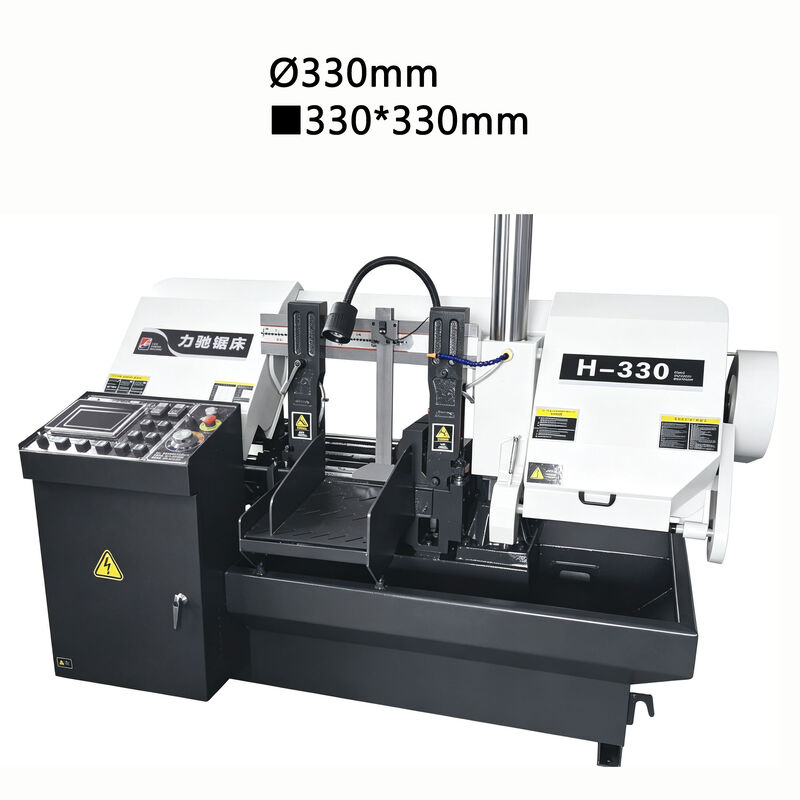

The H-330 can cut round materials up to Φ330 mm and plate materials up to 330 mm, making it suitable for a wide range of metal-processing applications.

The blade speed can be selected from 30, 45, 60 and 80 m/min, allowing operators to select an appropriate cutting speed for different materials and working conditions.

The hydraulic system provides stepless adjustment of the blade feed rate. This helps adapt the cutting process to different workpiece materials and cutting requirements.

The workpiece is clamped hydraulically throughout the cutting process. Dual clamping arrangements help maintain workpiece stability and reduce movement during cutting.

The rear hydraulic feeding system uses a grating scale for positioning, supporting accurate and repeatable material feeding.

The documented finished-product dimensional accuracy is ±0.2 mm, providing reliable dimensional consistency for repetitive cutting operations.

The H-330 supports both automatic and manual cutting. In automatic mode, operators can set the cutting length and quantity, return the machine to its reference position and start the automatic cutting cycle.

The machine is designed for continuous cutting and batch production. A bundled cutting device allows multiple pieces of material to be positioned together within the machine's permitted cutting range.

The guide system uses guide wheels, wear-resistant guide blocks and a double-bearing structure at the back of the blade to help reduce vibration, blade friction and tooth damage.

The machine body and saw frame use welded steel structures that undergo aging treatment to reduce deformation and improve long-term stability.

A passive wire-wheel chip brush cleans residual chips from the band saw blade, while coolant helps wash away chips from the tooth gullets, supporting cutting efficiency and blade service life.

The machine is equipped with an automatic stop function that stops the machine if the band saw blade breaks, helping protect both the equipment and operators.

Suitable for preparing metal stock and components for bearing production, particularly where repetitive cutting is required.

The automatic cutting system can be used for preparing material blanks for bolts, fasteners and other standard components.

The machine is suitable for cutting metal stock used in automotive component manufacturing.

The 330 mm cutting capacity makes the H-330 suitable for general steel and metal material preparation.

Automatic length and quantity settings allow the machine to perform continuous cutting cycles with reduced operator intervention.

Multiple workpieces can be arranged within the permitted cutting range for bundled cutting, improving productivity in suitable production conditions.

The H-330 can be used for cutting round and plate materials up to its specified capacity, making it suitable for a variety of upstream material-preparation processes.
