Product Introduction

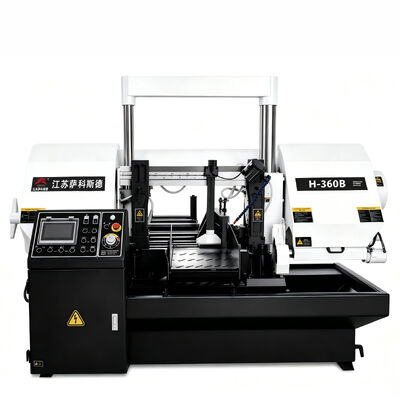

The H-360B Horizontal Band Saw Machine is a hydraulic metal cutting band saw designed for reliable and efficient cutting of round bars, square bars, angle bars and other metal materials.
With a maximum cutting capacity of Ø360 mm for round bar and 360 * 360 mm for square and angle bar, the H-360B is suitable for a wide range of industrial metal cutting applications.
The machine features hydraulic feeding and hydraulic workpiece clamping, providing stable material handling and secure workpiece positioning during cutting. Its variable-frequency stepless saw band speed regulation from 20 to 100 m/min allows operators to adjust the cutting speed according to different materials and cutting requirements.
With a 4 kW main motor and 1.5 kW hydraulic motor, the H-360B provides a practical combination of cutting power, hydraulic control and flexible speed adjustment for workshops and industrial production environments.
Key Features
Variable-Frequency Stepless Speed Regulation
The H-360B is equipped with 20–100 m/min variable-frequency stepless speed regulation, allowing the saw band speed to be continuously adjusted according to material type, workpiece size and cutting conditions.
360 mm Cutting Capacity
The machine provides a maximum cutting capacity of:
- Round Bar: Ø360 mm
- Square Bar: 360 * 360 mm
- Angle Bar: up to 360 * 360 mm
This makes the H-360B suitable for medium-to-large metal stock cutting.
Hydraulic Feeding System
The hydraulic feeding system provides controlled and stable material feeding, helping maintain consistent cutting performance during operation.

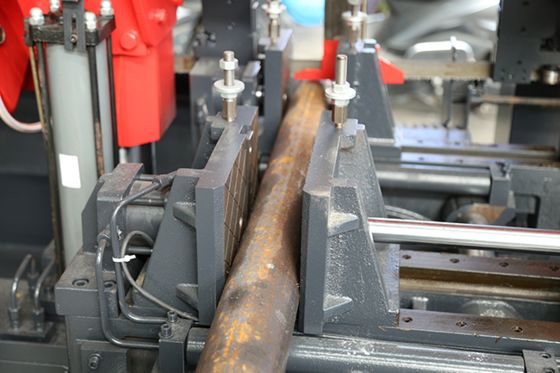

Hydraulic Workpiece Clamping
Hydraulic clamping securely holds the workpiece during cutting, reducing movement and improving cutting stability.
Powerful 4 kW Main Motor
The H-360B is equipped with a 4 kW main motor, providing sufficient power for a variety of industrial metal sawing applications.
Large Hydraulic and Coolant Capacity
The machine is equipped with an 80 L hydraulic fluid capacity and a 50 L cutting fluid capacity, supporting stable operation during extended cutting work.
Practical Industrial Design
The H-360B combines hydraulic feeding, hydraulic clamping and adjustable saw band speed in one machine, providing a practical solution for workshops that require stable and flexible metal cutting.
Technical Specifications
| Model |
Unit |
JSSCD-H360B |
| Machine Size |
mm |
2200*2500*1600 |
| Square Bar & Angle Bar Cutting Capacity |
mm |
360*360 |
| Round Bar Cutting Capacity |
mm |
Ø360 |
| Saw Band Speed |
m/min |
20-100 |
| Saw Band Size |
mm |
4950*41*1.3 |
| Main Motor Power |
kw |
4 |
| Hydraulic Motor Power |
kw |
1.5 |
| Cooling Motor Power |
kw |
0.09 |
| Hydraulic Fluid Capacity |
L |
80 |
| Cutting Fluid Capacity |
L |
50 |
Applications
The H-360B is designed for general industrial metal cutting and can be used for a variety of workpiece shapes and materials.
Typical Applications
Round Bar Cutting
Suitable for cutting round steel bars and other cylindrical metal stock up to Ø360 mm.
Square Tube & Square Bar Cutting
Suitable for processing square-section materials up to 360 * 360 mm.
Rectangular and Structural Material Cutting
The machine can be used for various structural metal materials according to the applicable cutting capacity.
Angle Bar Cutting
Suitable for cutting angle bars and other structural steel sections.
Metal Stock Preparation
Ideal for preparing raw metal materials before machining, fabrication or further processing.
Typical Industries
- Machinery Manufacturing
- Steel Fabrication
- Metal Processing
- Structural Steel Fabrication
- Industrial Component Manufacturing
- General Engineering
- Metal Stock Preparation
FAQ
Q1: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q2: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q3: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international
Q4: Is the saw band tension automatic?
A: No. According to the supplied specification sheet, the H-360B uses manual saw band tension.
