H-330 Semi Automatic Horizontal Metal Band Saw Machine for Steel Bar Cutting Processing

H 330 Semi Automatic Horizontal Metal Band Saw Machine for Steel Bar Cutting Processing

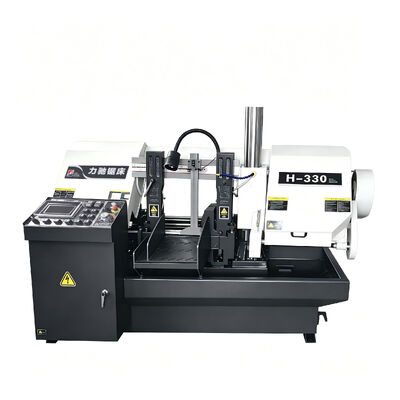

The H-330 CNC Horizontal Band Saw Machine is a CNC-controlled horizontal band sawing machine designed for efficient and stable cutting of metal materials. With a maximum cutting capacity of Ø330 mm for round materials and 330 mm for plate materials, the machine is suitable for both individual cutting and batch production.

The H-330 combines mechanical, hydraulic, electrical and PLC control systems to automate the complete cutting cycle, including material feeding, workpiece clamping, saw frame movement and cutting. Its hydraulic system provides stepless control of the saw blade feed speed, allowing the cutting process to be adjusted according to different material and cutting requirements.

The machine features four saw blade speeds of 30/45/60/80 m/min, full-stroke hydraulic clamping and a rear hydraulic feeding system with grating ruler positioning. A single feeding stroke can reach 400 mm, while multiple feeding cycles can be used for longer cutting lengths.

For batch production, the H-330 supports automatic sawing, automatic counting and bundle cutting, helping reduce operator workload while maintaining consistent cutting performance. The manufacturer specifies a finished cutting dimensional accuracy of ±0.2 mm, with cut-face perpendicularity meeting national standards.

The H-330 uses a PLC control system and touchscreen human-machine interface to manage the main machine operations. Operators can set cutting length and quantity, return the machine to its reference position and start the automatic cutting cycle. After the preset quantity is completed, the machine automatically stops.

The saw blade speed can be selected from:

• 30 m/min
• 45 m/min
• 60 m/min
• 80 m/min

The four-speed configuration allows operators to select an appropriate cutting speed for different cutting conditions.

The saw frame feed is controlled by a hydraulic cylinder and precision regulating valve. The feed speed can be continuously adjusted to achieve an appropriate cutting condition and reduce the risk of tooth damage.

The workpiece is clamped using a hydraulic cylinder. The machine uses front and rear clamping arrangements so that at least one vise remains engaged during the cutting process, helping prevent workpiece movement and improving cutting stability.

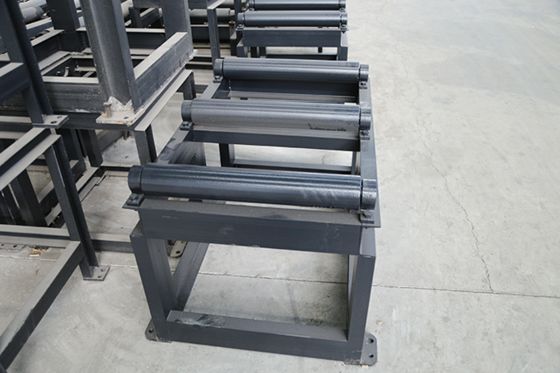

The rear hydraulic feeding system uses a grating ruler positioning system to control material feeding. The single feeding stroke can be set from 2–400 mm, and multiple feeding cycles can be performed when a longer feeding distance is required.

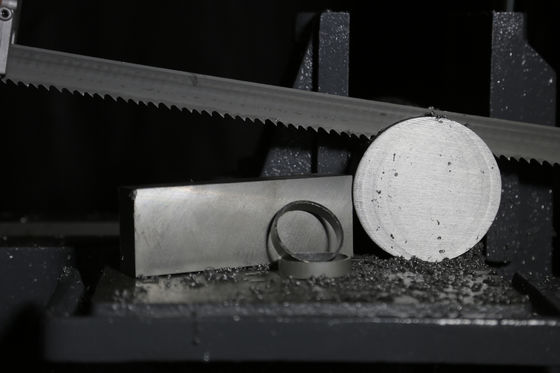

The H-330 can be equipped with a bundle cutting device. Multiple workpieces can be arranged within the specified working width and height, allowing several pieces to be cut simultaneously for higher production efficiency.

The saw blade guide system uses adjustable left and right guide arms, guide wheels and wear-resistant guide blocks. The guide system helps maintain the blade position during cutting and reduce vibration.

The machine is equipped with an automatic broken-blade stop function. If the saw blade breaks, the machine automatically stops to help protect the equipment and improve operational safety.

A passive wire-wheel chip removal device cleans chips from the saw blade. Cooling fluid assists the cleaning process, helping prevent chips from blocking the blade gullets and contributing to longer blade service life.

The machine uses a welded steel-plate base and saw frame with vibration-aging treatment. The structure is designed to reduce welding deformation and maintain long-term stability. The transmission system uses worm gear transmission and is precision balanced to reduce vibration during operation.

The H-330 CNC horizontal band saw machine is designed for metal cutting and batch material processing where stable feeding, repeatable cutting length and automated operation are required.

The machine can be used for cutting metal stock and bar materials used in bearing manufacturing, where repeatable cutting dimensions and stable production are important.

For manufacturers producing bolts, shafts, fasteners and other standard components, the automatic feeding and cutting functions can help support repetitive batch cutting operations.

The H-330 is suitable for metal material preparation in automotive component production, particularly where multiple pieces need to be cut to consistent lengths.

The machine can be applied to workshops and production lines requiring the cutting of round materials and plate materials up to its specified capacity.

With automatic feeding, automatic counting and programmable cutting quantities, the H-330 is particularly suitable for continuous batch cutting and production involving multiple material specifications.

For suitable workpiece sizes, the optional/equipped bundle cutting system allows multiple pieces to be processed simultaneously, improving productivity compared with single-piece cutting.

Q1: What is your factory acceptance test method?

A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)

Q2: Are you a manufacturer or a trading company?

A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.

Q3: How about the payment term?

A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)

A: Yes. The machine is equipped with a bundle cutting device and can process multiple pieces simultaneously within the specified cutting range, making it suitable for batch production.

A: Yes. The H-330 supports both manual and automatic operation. In automatic mode, operators can set the required cutting length and quantity, start the automatic cycle and allow the machine to complete the programmed cutting process. The machine automatically stops after the preset quantity has been completed.
