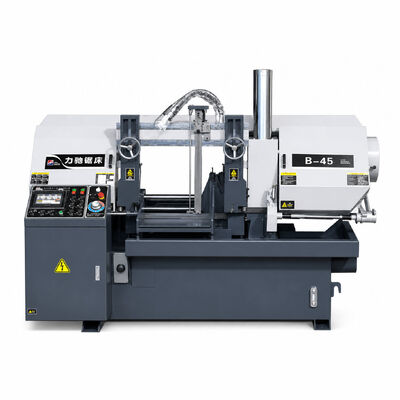

The B-45 CNC Horizontal Band Saw Machine is a heavy-duty automatic metal cutting solution designed for high-efficiency and stable processing of large-diameter round bars, square blocks, steel plates, and bundled metal materials.
With a maximum cutting capacity of Ø450 mm for round materials and 450 * 450 mm for rectangular materials, the B-45 combines CNC control, hydraulic clamping, variable band speed, automatic feeding, and automatic chip removal to provide reliable performance for demanding metalworking applications.
The machine features a rigid cast-and-welded machine body, precision band-wheel balancing, tungsten-carbide band guides, hydraulic workpiece clamping, and a stable hydraulic lifting system. These design features help reduce vibration, improve cutting stability, extend blade life, and maintain consistent cutting performance during continuous production.
The B-45 also supports automatic feeding with magnetic scale positioning, with a single feed stroke of up to 600 mm and multiple feeding cycles for longer workpieces. A bundle-cutting function is available for customers who need to process multiple workpieces simultaneously.
Key Features
1. Large Cutting Capacity
The B-45 is designed for heavy-duty metal cutting, offering a maximum cutting capacity of:
- Round material: Ø450 mm
- Square/rectangular material: 450 * 450 mm
This makes it suitable for large steel bars, blocks, shafts, structural components, and other heavy metal workpieces.
2. CNC Automatic Feeding System
The machine uses a hydraulic rear feeding system with magnetic scale positioning, allowing accurate and repeatable material positioning.
The maximum single feeding stroke is 600 mm, while longer workpieces can be processed through multiple feeding cycles.
3. 20–100 m/min Variable Band Speed
The B-45 uses variable-frequency speed control, providing a band speed range of 20–100 m/min.
This allows operators to select suitable cutting speeds for different materials, workpiece sizes, and production requirements.

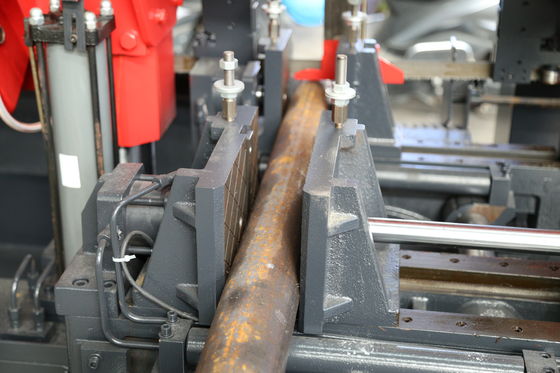

4. Full-Length Hydraulic Workpiece Clamping
The machine adopts full-stroke hydraulic clamping, providing stable workpiece holding during cutting.
Hydraulic clamping is particularly useful for large and heavy workpieces where secure positioning is essential for cutting accuracy and operational safety.
5. Rigid Machine Structure
The machine body uses a cast-and-welded structure designed to provide high stability during heavy-duty cutting.
The saw frame is manufactured from welded steel plates with reinforcing ribs and undergoes vibration stress treatment to reduce residual welding stress and improve structural stability.
6. Tungsten-Carbide Blade Guide System
The blade guide system uses tungsten-carbide guide components to provide high strength and wear resistance.
The guide system helps keep the blade aligned with the cutting direction while reducing blade deformation and friction-related vibration.
7. Automatic Chip Removal
An automatic screw-type chip conveyor removes saw chips from the cutting area and transfers them into the chip collection box.
The machine also features a powered steel brush for cleaning the saw blade, helping prevent secondary cutting caused by accumulated chips and reducing the risk of tooth damage.
8. Intelligent Hydraulic System
The hydraulic system controls key machine functions including:
- Saw frame lifting
- Workpiece clamping
- Material feeding
- Material return
The system uses a high-performance variable vane pump with automatic flow adjustment and compensation, helping provide stable operation and efficient hydraulic power transmission.
9. Multiple Safety Protection Functions
The B-45 incorporates multiple safety functions, including:
- Blade breakage automatic stop
- Overload protection
- Workpiece clamping detection
- No-material detection
- Automatic shutdown in case of blade jamming
The machine is designed so that the saw blade cannot start when the workpiece has not been properly clamped.
10. Manual & Automatic Operation
The control system supports both manual and automatic operation, allowing users to select the appropriate operating mode according to production requirements.
Technical specifications
| Model |
Unit |
B45 |
| Maximum round cutting capacity |
mm |
Φ450 |
| Maximum rectangular cutting capacity |
mm |
450*450 |
| Band saw blade size |
mm |
1.3*41*4520 |
| Main motor power |
kw |
5.5 |
| Hydraulic pump power |
kw |
1.5 |
| Coolant pump power |
w |
60 |
| Hydraulic system preesure |
Mpa |
2-2.5 |
| Hydraulic oil tank capacity |
L |
80 |
| Coolant tank capacity |
L |
50 |
| Maximum single feed length |
mm |
600 |
| Overall load capacity |
tons |
5 |
| Machine dimensions(L x W x H) |
mm |
2450*2700*2260 |
| Positioning accuracy |
mm |
0.2 |
| Worktable height |
mm |
67 |
Applications
The B-45 CNC Horizontal Band Saw Machine is suitable for a wide range of heavy-duty metal cutting applications.
Steel Bar Cutting

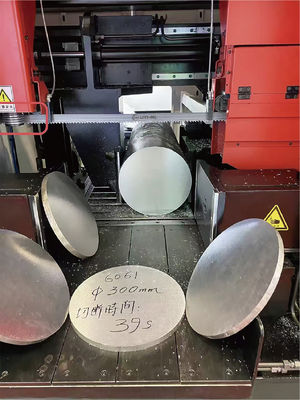

Suitable for cutting large-diameter round steel bars and alloy steel bars up to Ø450 mm.

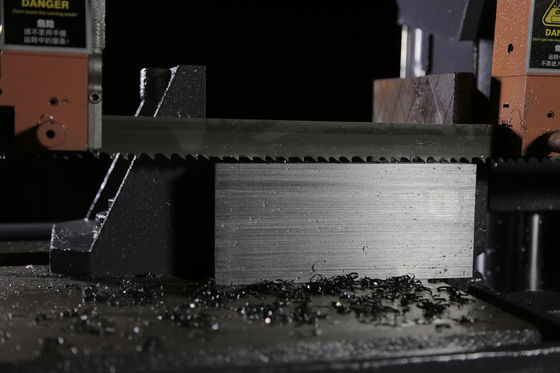

Large Square & Rectangular Material Cutting
The machine can process square or rectangular workpieces up to 450 * 450 mm, making it suitable for steel blocks, billets, structural sections, and large metal components.
Shaft & Forged Component Preparation
With its rigid structure and hydraulic clamping system, the B-45 can be used for preparing shafts, forged components, and other heavy metal parts for subsequent machining.
Steel Fabrication
The machine can be integrated into steel fabrication and metal processing lines where repeatable cutting dimensions and stable production cycles are required.
Batch Production
The automatic feeding system, magnetic scale positioning, and multi-cycle feeding function make the B-45 suitable for repetitive cutting operations.
Bundle Cutting
The B-45 is equipped with a bundle cutting function, allowing multiple suitable workpieces to be processed together to improve production efficiency.
Typical Industries
- Steel service centers
- Metal fabrication
- Machinery manufacturing
- Automotive component manufacturing
- Heavy equipment manufacturing
- Forging and foundry industries
- Structural steel processing
- General metalworking
FAQ
Q1: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q3: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international
Q4: Does the B-45 use automatic feeding?
A: Yes. The machine uses a hydraulic rear feeding system with magnetic scale positioning. The maximum single feeding length is 600 mm, and longer materials can be processed through multiple feeding cycles.
Q5: What type of clamping system does the machine use?
A: The B-45 uses full-length hydraulic workpiece clamping, providing stable holding during the cutting process.
