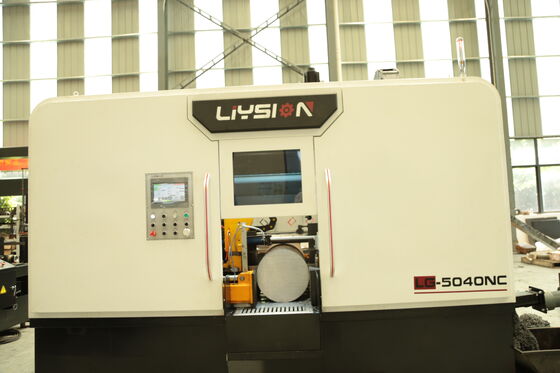

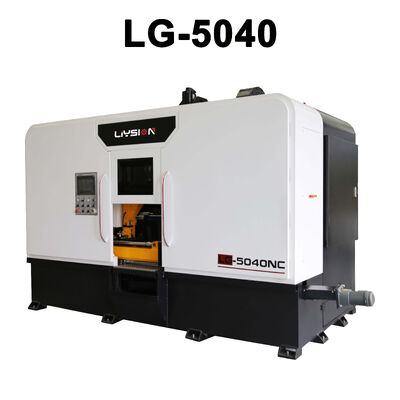

The LG-5040NC CNC Automatic Horizontal Band Saw Machine
The LG-5040NC CNC Automatic Horizontal Band Saw Machine is a heavy-duty CNC band saw designed for efficient and precise cutting of carbon steel, tool steel, stainless steel and other metal materials.
The machine features a 7.5 kW high-performance geared saw motor, a 41 mm wide band saw blade, PLC automatic control, servo-controlled feeding, servo material positioning, blade deviation detection and clamping-pressure sensing. Its double-column gantry structure provides high rigidity and stable cutting performance for demanding metal-cutting applications.
The LG-5040NC uses a multi-linear-guide structure and balanced feed design to distribute cutting forces more evenly throughout the machine, helping reduce vibration, improve cutting stability and extend band saw blade life. The machine also features a separate hydraulic oil tank and coolant tank for easier maintenance.
With a maximum cutting capacity of Ø400 mm for round materials and 500 * 400 mm for rectangular materials, the LG-5040NC is suitable for heavy-duty metal processing and automated batch cutting.
Key Features
Heavy-Duty Double-Column Gantry Structure
The LG-5040NC adopts a rigid double-column gantry design supported by roller-type linear guides. This structure provides smooth saw-frame movement and stable cutting forces, helping improve cutting performance and blade service life.
High-Power 7.5 kW Saw Motor
The machine is equipped with a 7.5 kW saw motor and heavy-duty reduction gearbox, providing the power required for cutting carbon steel, tool steel and stainless steel.
Variable Blade Speed: 15–150 m/min
The band saw speed can be continuously adjusted from 15 to 150 m/min through inverter control, allowing the machine to adapt to different material characteristics and cutting requirements.
Servo Feeding System
The feeding system uses a servo motor and ball screw, providing accurate and repeatable material positioning. The maximum single feeding stroke is 450 mm, with up to 99 multiple feeding cycles available.
±0.1 mm Feeding Accuracy
The specified feeding accuracy is ±0.1 mm/450 mm, supporting precise length control during repetitive production.
Automatic Blade Deviation Detection
The machine is equipped with a blade deviation sensing function. If blade deviation occurs during cutting, the system can automatically detect the condition and stop the machine
Automatic Blade Tensioning
The hydraulic blade-tensioning system automatically compensates for blade tension. When the machine stops, the blade tension is automatically released, helping reduce elastic fatigue during long periods of non-use.
Automatic Material Height Setting & Fast Approach
The automatic material-height setting function allows the saw blade to approach the workpiece quickly and automatically switch to the normal cutting feed rate near the material, helping reduce idle and cycle time.
Automatic Material Retraction
After cutting, the feeding vise automatically retracts the material by approximately 2 mm before the saw head rises. This helps prevent the blade from rubbing against the freshly cut surface and contributes to longer blade life.
Power-Driven Double Nylon Brushes
The synchronized double nylon brush system removes metal chips from the band saw blade and helps prevent chips from accumulating in the tooth gullets, supporting blade life and cutting efficiency.
CNC Programmable Cutting
The numerical control system allows users to program up to 99 different cutting lengths and quantities. The programmed data can be selected in any order according to production requirements.
Technical specifications
| Model |
Unit |
LG-5040NC |
| Maximum round cutting capacity |
mm |
Φ400 |
| Maximum rectangular cutting capacity |
mm |
500*400 |
| Band saw speed |
m/min |
15-150 |
| Band saw blade size |
mm |
6830*41*1.3 |
| Saw motor power |
kw |
7.5/10HP |
| Hydraulic motor power |
kw |
2.2/3HP |
| Coolant pump power |
w |
180/1/4HP |
| Hydraulic oil tank capacity |
L |
90 |
| Coolant tank capacity |
L |
130 |
| Maximum single feeding stroke |
mm |
450 |
| Flatness |
|
≤Ra12.6 |
| Bed Height |
mm |
680 |
| Machine weight |
kg |
5600 |
| Machine dimensions |
mm |
4100*2000*2650 |
Applications
The LG-5040NC is designed for heavy-duty and automated metal-cutting applications, particularly where high cutting capacity, precision and continuous production are required.
Carbon Steel Cutting
Suitable for cutting carbon steel materials into accurately sized blanks for subsequent machining and fabrication.
Tool Steel Cutting
The high-power drive system and heavy-duty saw-frame design make the machine suitable for tool steel cutting applications.
Stainless Steel Cutting
The variable blade speed and balanced feed system allow the machine to be configured for stainless steel cutting requirements.
Large-Diameter Bar Cutting
With a maximum round cutting capacity of Ø400 mm, the machine is suitable for cutting large-diameter steel bars and other cylindrical workpieces.
Large Rectangular Material Cutting
The LG-5040NC can process rectangular materials up to 500 mm wide * 400 mm high.
Batch Production
The CNC system supports programming of up to 99 different cutting lengths and quantities, making the machine suitable for repetitive and multi-size production.
High-Precision Material Preparation
With feeding accuracy of ±0.1 mm/450 mm and cutting squareness of ±0.1 mm/100 mm, the machine is suitable for applications requiring controlled dimensional accuracy.
Heavy-Duty Metal Processing
The 7.5 kW saw motor, rigid double-column structure and hydraulic systems make the LG-5040NC suitable for demanding industrial metal-processing environments.
FAQ
Q1: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q2: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.
Q3: How about the payment term?
A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q4: Can the machine perform automatic cutting?
Yes. The LG-5040NC uses a PLC-based numerical control system and supports programmable cutting lengths and quantities, automatic multiple feeding and automatic blade-thickness compensation.
Q5: How does the machine reduce unnecessary cutting cycle time?
The automatic material-height setting and quick-approach function allow the saw head to approach the workpiece quickly before automatically switching to the normal cutting feed speed.
