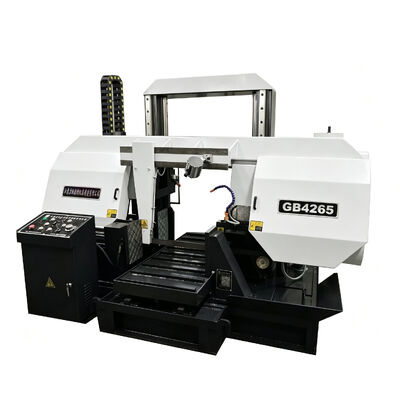

GB4265 Gantry Type Horizontal Band Saw Machine
The GB4265 Gantry Type Horizontal Band Saw Machine is a heavy-duty metal cutting solution designed for large-size workpieces and high-efficiency industrial processing. It is mainly used for cutting round discs, large cylindrical parts, shafts, square blocks, and forged components, providing excellent cutting efficiency, energy saving, narrow cutting kerf, and reduced material waste.
Featuring a rigid gantry structure, hydraulic clamping system, hydraulic feeding adjustment, and platform sliding feeding design, the GB4265 delivers stable performance and high cutting accuracy for demanding metal processing applications.
The machine is suitable for processing various ferrous metal materials and is widely used in heavy machinery manufacturing, metal fabrication, steel processing, and other industrial applications requiring reliable large-scale cutting performance.
Key Features
1. Heavy-Duty Gantry Structure
The GB4265 adopts a gantry-type frame structure with strong rigidity and stability, making it suitable for cutting large and heavy workpieces. The welded base is treated with vibration stress relief to minimize deformation and improve long-term accuracy.
2. Large Cutting Capacity
With a maximum cutting diameter of 650 mm, the machine is designed for large-size metal materials, including round billets, cylindrical components, and large forged parts.
3. Hydraulic Double Clamping System
The machine is equipped with front and rear hydraulic clamping vises, which firmly secure the workpiece during cutting and effectively improve cutting stability and accuracy. The clamping and releasing operations can be independently controlled.
4. Platform Sliding Feeding System
The GB4265 adopts a platform sliding feeding method, allowing convenient loading and positioning of large workpieces. The platform size is designed for heavy material handling requirements.
5. Stable Saw Frame & Column Guidance
The saw frame adopts a reinforced bow-shaped structure made of high-quality steel plates. After stress relief treatment, welding stress is reduced to ensure excellent structural stability.
6. Precision Saw Blade Guidance System
The guide system includes movable and fixed guide arms with carbide guide blocks and pre-guiding devices, improving blade stability, reducing vibration, and extending saw blade service life.
7. Hydraulic Automatic Blade Tensioning
The saw blade tensioning system adopts hydraulic automatic tensioning, ensuring proper blade tension and improving cutting reliability.
8. Efficient Cooling & Chip Removal System
The machine uses a circulating coolant system to cool the saw blade and cutting area, preventing overheating and improving cutting precision. A passive chip cleaning wheel helps remove metal chips from the blade surface.
9. Convenient Operation & Safety Control
All machine operations are controlled through buttons on the electrical control system. The system includes interlocking functions to improve operational safety and reliability.
Technical specifications
| Model |
Unit |
GB4265 |
| Machine size |
mm |
1200*3200*2100 |
| Square bar&angle bar |
mm |
650*650 |
| Bar stock |
mm |
Φ650 |
| Saw band speed |
m/min |
22,45,65 |
| Main motor power |
kw |
5.5 |
| Hydraulic motor power |
kw |
1.5 |
| Cooling motor power |
kw |
1.2 |
| Hydraulic fluid capacity |
L |
80 |
| Cutting fluid capacity |
L |
50 |
| Saw band tension |
|
Manual |
| Clamping method |
|
Hydraulic |
| Feeding method |
|
Electric drum feeding |
Applications
The GB4265 Gantry Type Horizontal Band Saw Machine is specially designed for heavy-duty cutting operations and is widely used in industries requiring large-size metal material processing.
1. Heavy Machinery Manufacturing
The GB4265 is suitable for cutting large mechanical components, forged parts, shafts, and metal blocks used in heavy equipment manufacturing.
2. Steel Processing Industry
With its large cutting capacity and stable gantry structure, the machine is ideal for processing large steel billets, structural materials, and industrial metal components.
3. Forging and Metal Fabrication
The machine can efficiently cut forged parts, round billets, and irregular heavy workpieces before further machining or fabrication processes.
4. Industrial Equipment Manufacturing
It provides reliable material preparation for manufacturers producing industrial machinery, pressure equipment, and large fabricated structures.
5. General Metal Cutting Applications
The GB4265 is suitable for cutting various ferrous metal materials with high efficiency, narrow kerf, and reduced material waste.
FAQ
1: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.
2: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international certification.
3: Where is your factory located?
A: Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.
4: Does the machine have automatic feeding?
A: Yes. The GB4265 uses a platform sliding feeding system for convenient loading and transportation of large workpieces.
5: How is the saw blade cooled during operation?
A: The GB4265 uses a circulating coolant system to cool the blade and cutting area, helping extend blade life and maintain cutting accuracy.
