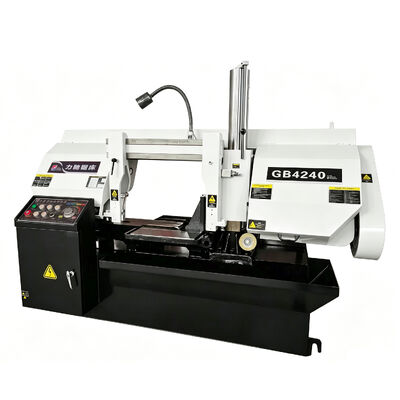

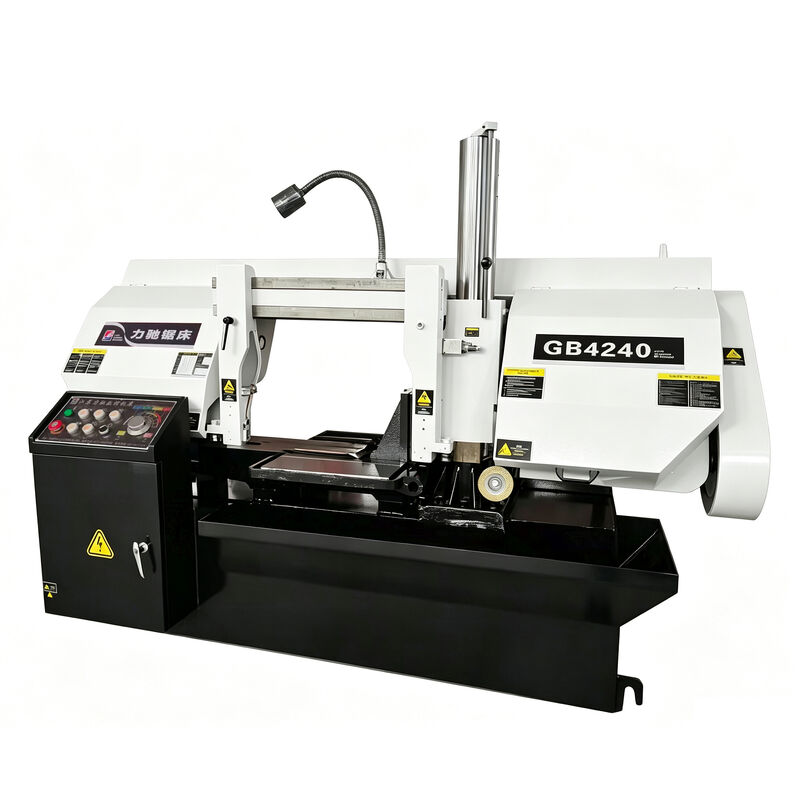

The GB4240 Horizontal Metal Band Saw Machine is a high-performance cutting solution designed for medium and small batch metal processing applications. It is mainly used for cutting various round pipes, square tubes, profiles, plates, and common metal materials with high precision and efficiency.
Featuring a rigid welded structure, hydraulic feeding system, hydraulic workpiece clamping, and adjustable cutting speed, the GB4240 provides stable operation, excellent cutting accuracy, and reliable performance for industrial metal fabrication.
The machine adopts advanced and mature sawing technology, making it an ideal choice for workshops requiring dependable cutting performance, simple operation, and high productivity.
Key Features
1. High Cutting Accuracy & Stable Performance
The machine adopts a rigid box-type welded bed structure with vibration stress relief treatment, reducing welding deformation and improving overall stability during cutting operations.
2. Hydraulic Workpiece Clamping
Equipped with a hydraulic vise system, the machine securely clamps workpieces through high-quality hydraulic cylinders and precision guide rods, ensuring stable cutting and easy operation.
3. Adjustable Cutting Speed
The saw blade speed can be adjusted through belt pulley control with multiple speed options, allowing users to select suitable cutting parameters for different metal materials.
4. Hydraulic Stepless Feeding Control
The hydraulic feeding system provides smooth and stepless adjustment of feeding speed, improving cutting efficiency and surface quality.
5. Strong Saw Frame Structure
The bow-shaped saw frame is welded with high-quality steel plates and reinforced ribs. After vibration stress treatment, internal welding stress is reduced to ensure long-term stability.
6. Precision Saw Blade Guidance System

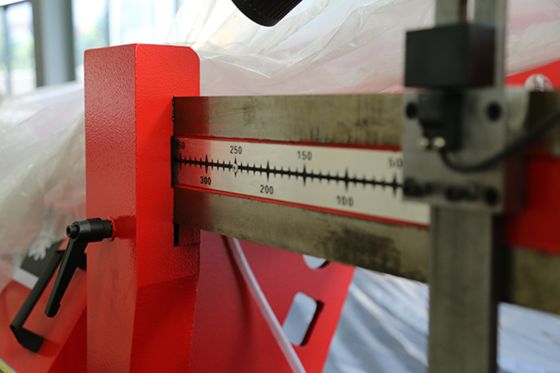

The guide arms can be adjusted according to workpiece size. The guide system uses rolling bearings and wear-resistant guide blocks to reduce vibration and improve cutting precision.
7. Easy Operation & Maintenance

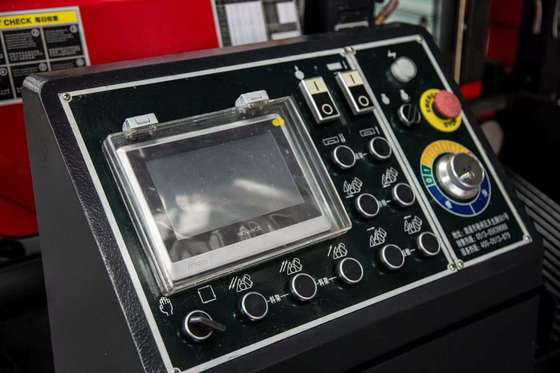

The electrical control system integrates operation buttons for convenient machine control, while the hydraulic system completes saw frame lifting, clamping, feeding, and return operations automatically.
Technical specifications
| Model | Unit | GB4240 |
|---|
| Machine size | mm | 1000*2400*1300 |

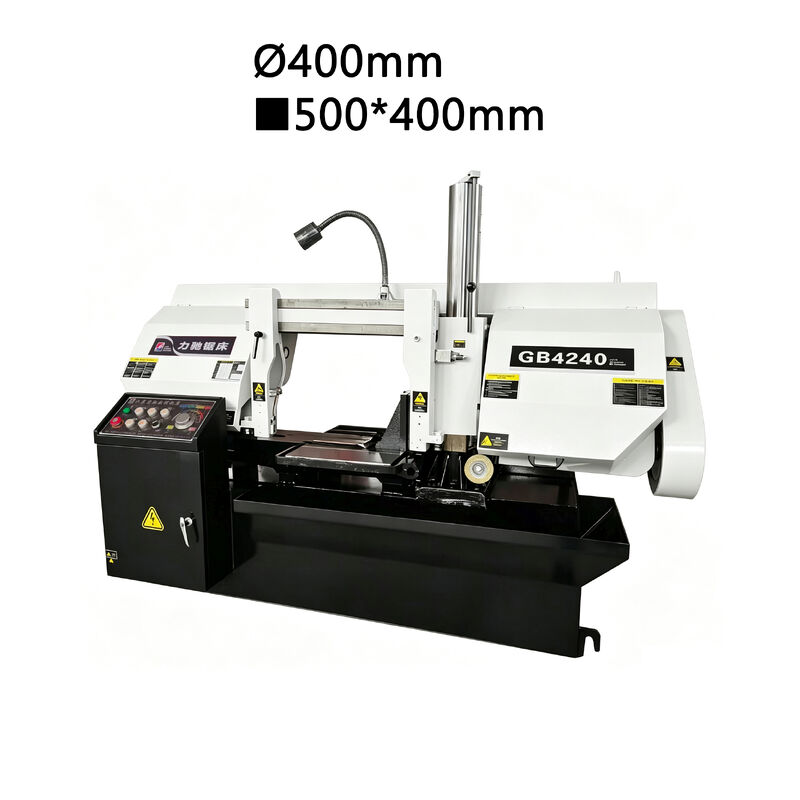

| Square bar &angle bar | mm | 400*400 |

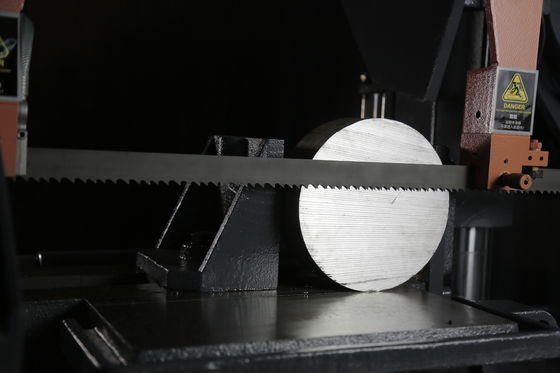

| Bar stock | mm | Φ400 |
| Saw band speed | m/min | 30,45,60,80 |
| Saw band size | | 4700*41*1.3 |
| Main motor power | kw | 4 |
| Hydraulic motor power | kw | 0.75 |
| Cooling motor power | kw | 0.06 |
| Hydraulic fluid capacity | L | 50 |
| Cutting fluid capacity | L | 40 |
| Saw band tension | | Manual |
| Clamping method | | Maunal-Hydraulic combination |
| Feeding method | | Manual |
Applications
The GB4240 Horizontal Metal Band Saw Machine is widely used in various metal processing industries that require efficient, accurate, and reliable cutting performance. With its strong structure, hydraulic clamping system, and adjustable cutting speed, it is an ideal solution for medium and small batch production, fabrication workshops, and industrial manufacturing applications.
1. Metal Fabrication Workshops
The GB4240 is suitable for daily metal fabrication operations, including cutting raw metal materials into required sizes before welding, assembly, or further machining processes. It helps improve production efficiency while maintaining consistent cutting quality.
2. Steel Structure Manufacturing
This machine is widely applied in steel structure production for cutting structural steel components, pipes, and profiles. Its stable cutting performance ensures accurate material preparation for construction frameworks, support structures, and industrial steel projects.
3. Machinery Manufacturing
For machinery manufacturers, the GB4240 provides reliable cutting of metal components used in equipment frames, mechanical parts, and fabricated assemblies. The hydraulic feeding and clamping system help achieve stable operation during continuous production.
4. Pipe and Profile Cutting

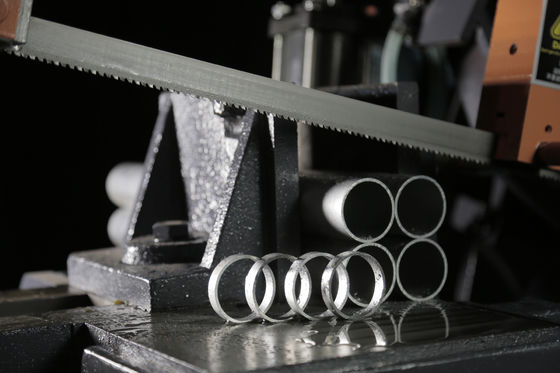

Designed for cutting various metal sections, the machine is suitable for processing round pipes, square tubes, rectangular tubes, and different steel profiles. It delivers clean and precise cuts for applications requiring accurate dimensions and good surface quality.
5. Plate Material Cutting
The GB4240 can also be used for cutting different types of metal plates and rectangular workpieces. Its large cutting capacity allows users to process medium-sized metal materials efficiently.
6. General Metal Processing Industries
The machine is widely used in general metalworking industries, including workshops and factories involved in steel processing, equipment manufacturing, maintenance, and custom metal fabrication.
FAQ
Q1: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q2: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.
Q3: How does the machine ensure stable cutting performance?
A: The machine features a rigid welded box-type structure with vibration stress relief treatment, which improves frame stability, reduces deformation, and ensures accurate cutting performance.
Q4: Is the machine easy to operate?
A: Yes. The GB4240 is designed with a simple control system. Operators can easily control machine functions through the electrical control panel, making daily operation convenient and efficient.
