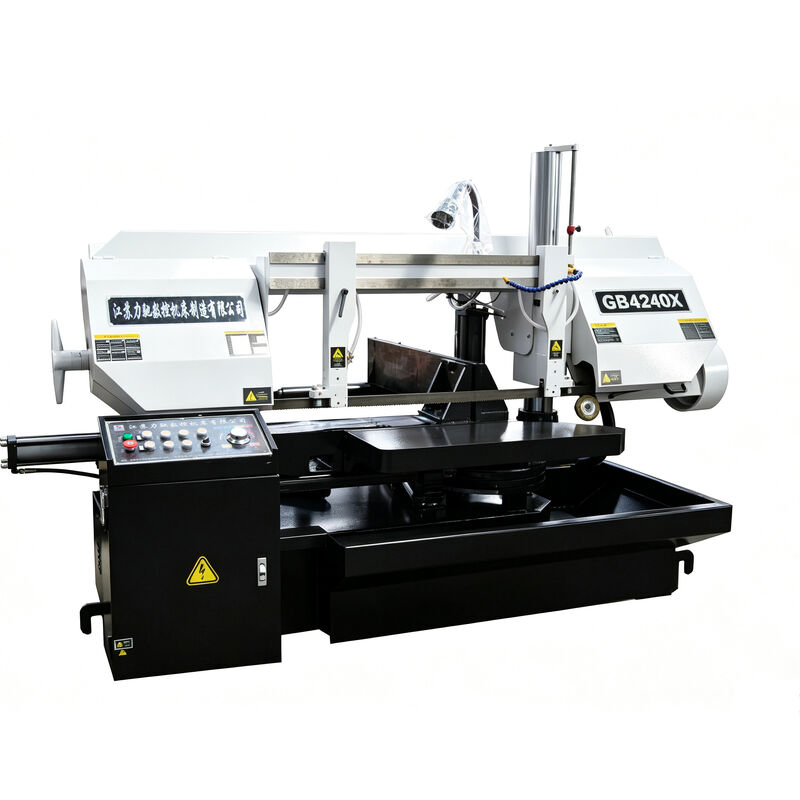

The GB4240X 45° Angle Cutting Horizontal Band Saw Machine is a heavy-duty metal cutting solution designed for high-precision angle cutting applications. With a rotary saw frame structure, the machine enables flexible cutting from 0° to 45°, making it suitable for processing various metal profiles, pipes, bars, and structural materials.
Equipped with a hydraulic clamping system, hydraulic feeding control, automatic return function, and four-speed blade adjustment, the GB4240X delivers stable cutting performance, high efficiency, and excellent reliability for industrial metal fabrication.
The machine adopts a welded box-type structure with high rigidity, ensuring stable operation during heavy-duty cutting. The integrated hydraulic and cooling systems help improve cutting efficiency, extend saw blade life, and maintain cutting accuracy.
Key Features
1. 0°-45° Adjustable Angle Cutting
The saw frame can rotate between 0° and 45°, allowing flexible angle cutting for different workpiece requirements. The angle adjustment system is equipped with positioning control for accurate operation.

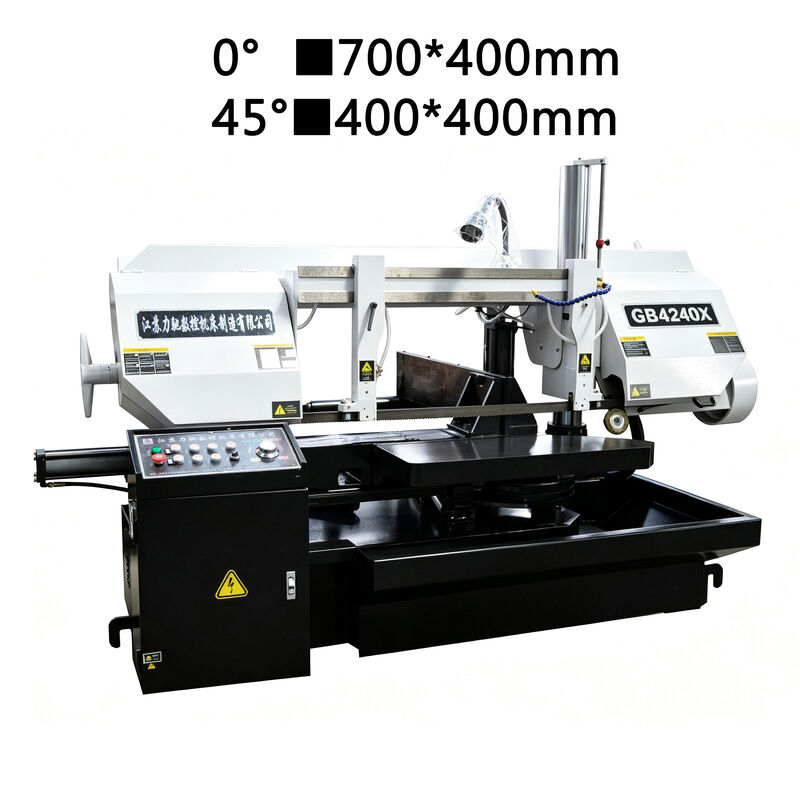

2. Large Cutting Capacity
The GB4240X provides strong cutting capability, supporting large-section metal materials with a maximum cutting capacity of:
- 0° cutting: 700mm * 400mm
- 45° cutting: 400mm * 400mm
3. Hydraulic Clamping System
The hydraulic clamping mechanism securely fixes workpieces during cutting, reducing vibration and improving cutting stability. The vise clamping and releasing operations are controlled through the operation panel.
4. Hydraulic Stepless Feeding Control
The hydraulic system provides stepless adjustment of feeding speed, allowing operators to optimize cutting parameters according to different materials.
5. Four-Speed Blade Adjustment
The transmission system provides four blade speeds (30/45/60/80 m/min) to meet different cutting requirements for various metal materials.
6. Heavy-Duty Welded Structure
The welded box-type machine bed provides excellent rigidity and durability, ensuring stable performance during continuous industrial operation.
7. Efficient Cooling System
The cooling system supplies coolant directly to the cutting area, improving cutting performance, extending blade service life, and enhancing cutting surface quality.

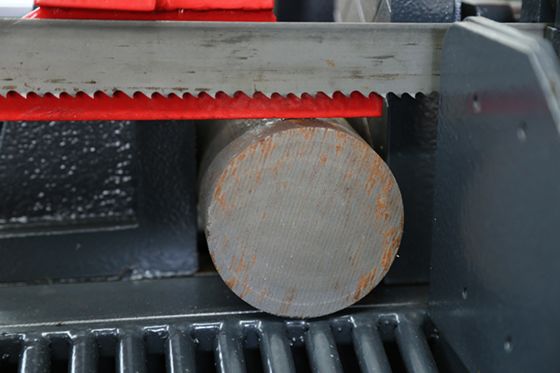

8. Reliable Blade Guide & Tension System
The adjustable guide system and blade tension mechanism maintain stable blade operation, helping prevent blade deviation and improve cutting precision.
Technical specifications
| Model | Unit | GB4240X |
|---|
| Machine size | mm | 1000*1800*1200 |
| Square bar& angle bar | mm | 45°400*400 |
| Saw band speed | m/min | 30,45,60,80 |
| Main motor power | kw | 4 |
| Hydraulic motor power | kw | 0.75 |
| Cooling motor power | kw | 0.6 |
| Hydraulic fluid capacity | L | 50 |
| Cutting fluid capacity | L | 40 |
| Saw band tension | | Manual |
| Clamping method | | Hydraulic |
| Feeding method | | Manual |
| Saw blade width | mm | 41 |
Applications
The GB4240X 45° Angle Cutting Horizontal Band Saw Machine is widely used in:
Steel Structure Fabrication
Suitable for cutting structural steel, beams, profiles, and large metal components used in construction projects.
Metal Processing Industry
Ideal for cutting carbon steel, stainless steel, alloy steel, and other industrial metal materials.
Machinery Manufacturing
Used for manufacturing machine parts, shafts, frames, and customized metal components.
Pipe & Profile Cutting
Perfect for processing pipes, square tubes, rectangular tubes, and various metal profiles requiring angle cutting.
Fabrication Workshops
A reliable solution for workshops requiring flexible angle cutting and high-capacity metal processing.
FAQ
Q1: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q2: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q3: Where is your factory located?
A: Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.
Q4: How do I choose the correct blade speed?
The machine offers four blade speeds (30/45/60/80 m/min), allowing users to select suitable speeds according to different materials and cutting requirements
Q5: What kind of maintenance does the machine require?
Regular maintenance includes checking hydraulic oil, cleaning the cooling system, adjusting blade tension, and replacing worn saw blades when necessary.
