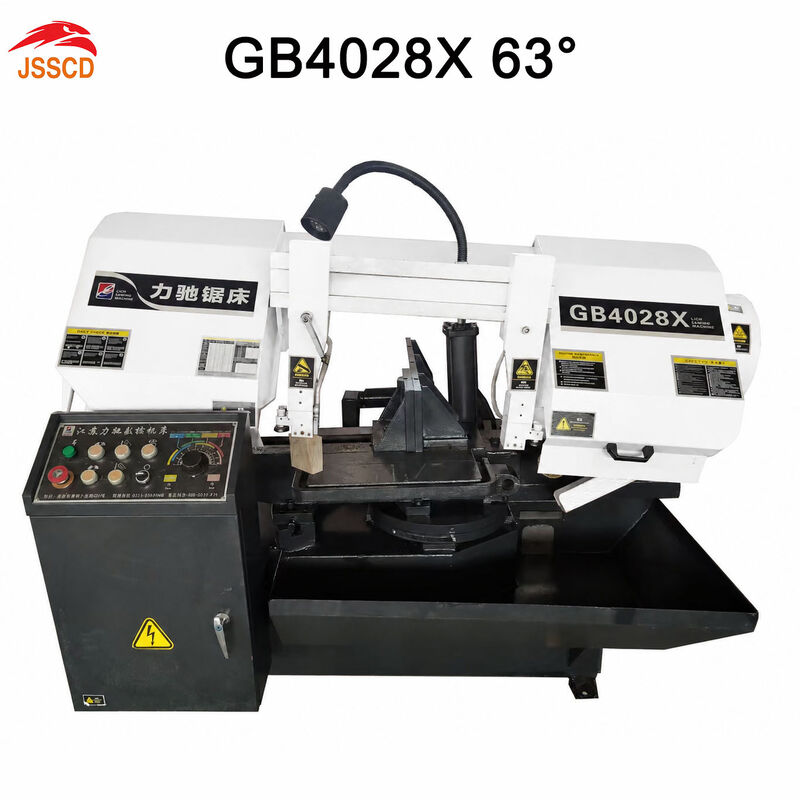

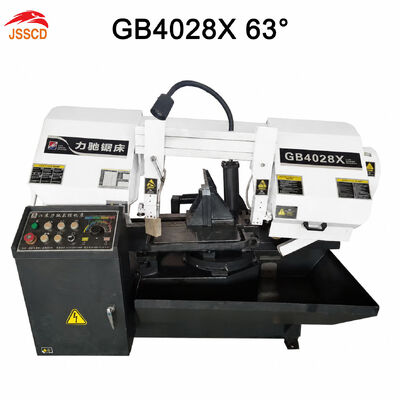

The GB4028X63° Angle Cutting Band Saw Machine is a high-performance horizontal metal cutting bandsaw designed for accurate angle cutting applications. The saw head can be manually rotated from 0° to 63°, allowing flexible cutting operations for different workpiece requirements.
With automatic sawing operation, mechanical and electrical control, and hydraulic stepless feed speed adjustment, this machine provides stable cutting performance, high cutting accuracy, material saving, and improved production efficiency.
The machine adopts a welded box-type bed structure, hydraulic clamping system, adjustable blade guide device, and efficient cooling system to ensure reliable operation and longer saw blade service life.
Technical specifications
| Model |
Unit |
GB4028X63° |
| Machine size |
mm |
1000*1800*1200 |

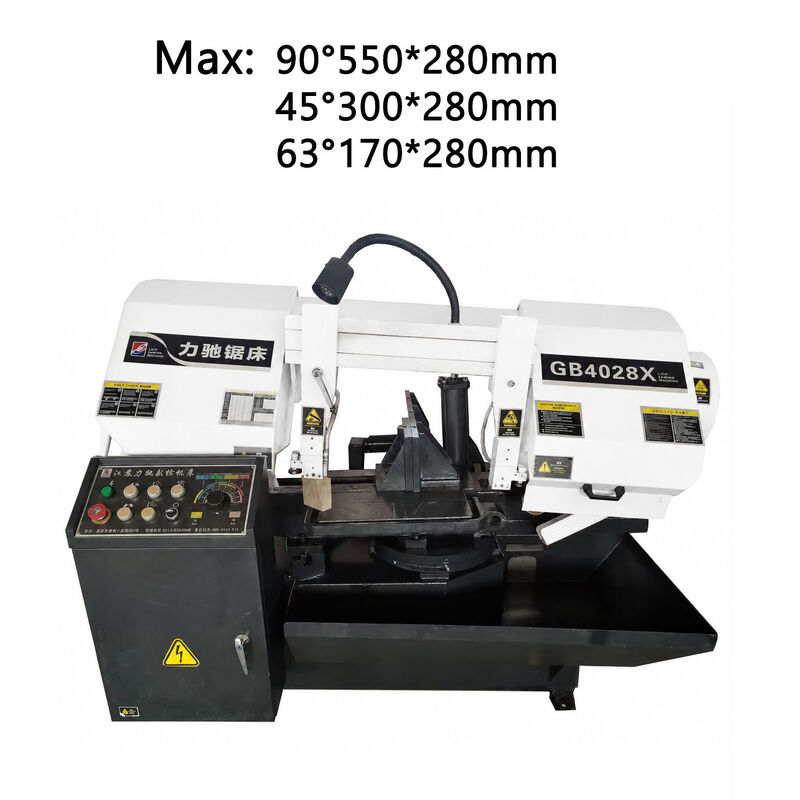

| Square bar& angle bar |
mm |
63°170mm*280mm |
| Saw band speed |
M/min |
30,45,60,80 |
| Main motor power |
kw |
3 |
| Hydraulic motor power |
kw |
0.55 |
| Maximum sawing effective height |
mm |
280 |
| Water cooling power |
kw |
40 |
| Saw band tesion |
|
Manual |
| Clamping method |
|
Manual |
| Feeding method |
|
Manual |
Key Features
1. Adjustable Angle Cutting Capability
- Manual swivel cutting from 0° to 63° for flexible angle processing.
- Suitable for different cutting requirements without additional fixtures.
2. High Cutting Accuracy & Material Saving

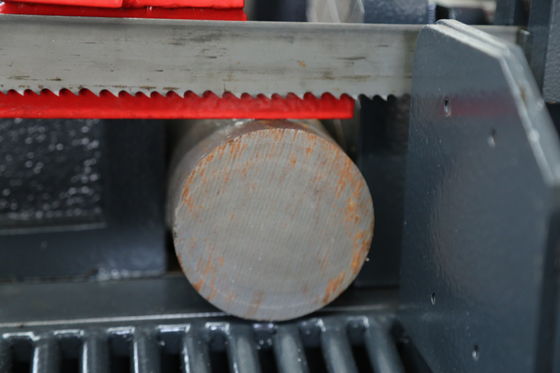

- Narrow saw kerf reduces material waste.
- Stable structure ensures precise cutting performance.
- Designed for efficient and economical metal processing.
3. Hydraulic Feed Control System
- Hydraulic cylinder provides stable feeding movement.
- Stepless adjustment of feed speed supports different material cutting conditions.
4. Heavy-Duty Welded Machine Bed
- Box-type welded bed structure improves rigidity and stability.
- The internal space integrates hydraulic oil tank and coolant tank design.
5. Adjustable Blade Guide System
- Left and right blade guide arms with guide rollers improve blade stability.
- Guide position can be adjusted according to workpiece size.
6. Efficient Cooling System
- Continuous coolant supply improves cutting performance.
- Helps extend blade service life and improves cutting surface quality.
7. Multiple Blade Speed Options
- Four blade speed settings:
30 / 45 / 60 / 80 m/min
- Suitable for different metal materials and cutting requirements.
Applications
The GB4028X63° Angle Cutting Band Saw Machine is widely used for precision cutting of various metal materials, including:
Metal Fabrication
- Steel structures
- Metal frames
- Fabricated components
Pipe & Profile Cutting
- Steel pipes
- Square tubes
- Rectangular profiles
- Various metal sections
Industrial Manufacturing
- Machinery manufacturing
- Equipment production
- General metal processing workshops
The machine is suitable for applications requiring flexible angle cutting, stable operation, and high cutting efficiency.
FAQ
Q1: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q2: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international certification.
Q3: How about the payment term?
A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q4: What cutting angle can this band saw machine achieve?
A: The GB4028X63° angle band saw machine supports manual angle adjustment from 0° to 63°, allowing flexible miter cutting operations.
Q5: Is the machine suitable for industrial production?
A: Yes. The machine features automatic sawing operation, hydraulic feeding control, adjustable blade speed, and stable mechanical structure, making it suitable for industrial metal cutting applications.
Q6: How is the workpiece clamped?

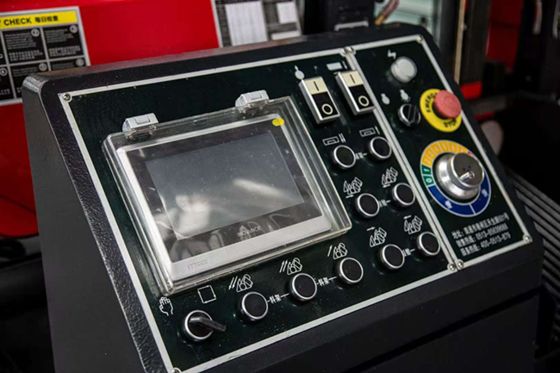

A: The machine uses a hydraulic clamping system controlled through the operation panel, including a fixed vise, movable jaw, and clamping cylinder.
