CNC Circular Saw Cutting Machine with φ30–φ100 mm Cutting Range, ±0.05 mm Feed Accuracy, and Automatic Loading System

CNC Circular Saw Cutting Machine with φ30–φ100 mm Cutting Range, ±0.05 mm Feed Accuracy, and Automatic Loading System
CNC Circular Saw Cutting Machine with φ30–φ100 mm Cutting Range, ±0.05 mm Feed Accuracy, and Automatic Loading System CNC Circular Saw Cutting Machine with φ30–φ100 mm Cutting Range, ±0.05 mm Feed Accuracy, and Automatic Loading System CNC Circular Saw Cutting Machine with φ30–φ100 mm Cutting Range, ±0.05 mm Feed Accuracy, and Automatic Loading System CNC Circular Saw Cutting Machine with φ30–φ100 mm Cutting Range, ±0.05 mm Feed Accuracy, and Automatic Loading System

Large Image :  CNC Circular Saw Cutting Machine with φ30–φ100 mm Cutting Range, ±0.05 mm Feed Accuracy, and Automatic Loading System

Product Details:
Place of Origin: China
Brand Name: JSSCD
Certification: HB24Q00435R0S HB24E00258R0S HB24S00242R0S
Model Number: JSSCD-120
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: depending on the machine model
Delivery Time: 7-60 work days
Payment Terms: FOB
Supply Ability: 500 Sets Per Year
Contact Now Chat Now

CNC Circular Saw Cutting Machine with φ30–φ100 mm Cutting Range, ±0.05 mm Feed Accuracy, and Automatic Loading System

Description
Model: 100NC Cutting Range – Round Bar: φ30 – φ100 Mm
Cutting Range – Square Bar: 30 – 85 Mm Blade Speed: 30 – 120 Rpm
Feed Accuracy: ±0.05 Mm Single Feed Length: 30 – 800 Mm
Cutting Length Tolerance: ≤ ±0.20 Mm Cutting Squareness: ≤ ±0.25 Mm / 100 Mm

30-100MM CNC Circular Saw Cutting Machine Medium Diameter Metal Cutting

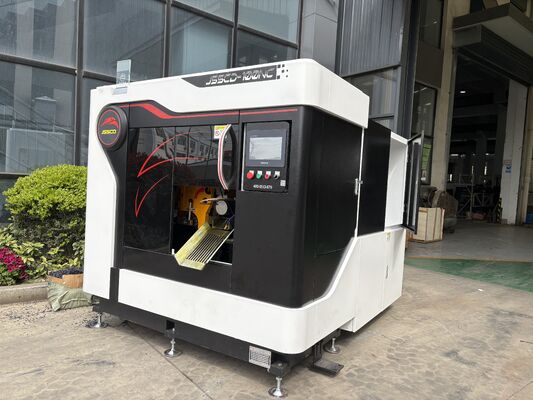

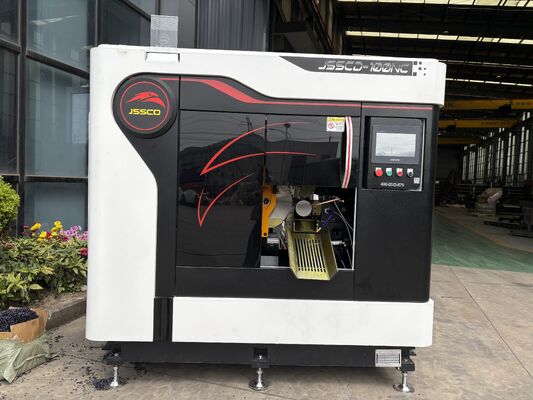

The JSSCD-100NC High Speed Intelligent Circular Saw is a precision cutting solution designed for medium diameter metal materials. With a cutting range of φ30 mm to φ100 mm for round bars and 30 mm to 85 mm for square bars, this machine is ideally suited for automotive parts manufacturing, fastener production, hardware processing, and general metal fabrication.
Engineered with a robust HT250 cast iron base that has undergone high-temperature annealing and aging treatment, the JSSCD-100NC delivers exceptional stability and vibration resistance. The push-type servo-driven feed system with precision ball screw ensures smooth, consistent cutting action, while the integrated automatic loading system and front discharge conveyor create a seamless production workflow.
Key Features
  • Advanced Gearbox Design - SKF precision bearings and magnetic powder damper for zero-backlash transmission
  • MQL Mist Cooling System - Minimum quantity lubrication reduces cutting heat and extends blade life
  • Automatic Chip Removal - Chain plate conveyor continuously removes chips from the cutting area
  • PLC Control with Touch Screen - User-friendly interface with programmable batch production
  • Complete Material Handling - Standard 7-meter loading rack and 2.5-meter front discharge conveyor
Technical Specifications
Specification Value
Main Motor Power 11 kW / 4P (variable frequency)
Hydraulic System Pressure 6 MPa
Hydraulic Tank Capacity 80 L
Cooling System MQL mist cooling
Chip Removal Automatic chain plate conveyor
Raw Material Rack Capacity 4000 - 7000 mm
Front Discharge Conveyor 2.5 m with push-off mechanism
Power Supply 380V / 50Hz / 3Phase
CNC Circular Saw Cutting Machine with φ30–φ100 mm Cutting Range, ±0.05 mm Feed Accuracy, and Automatic Loading System 0 CNC Circular Saw Cutting Machine with φ30–φ100 mm Cutting Range, ±0.05 mm Feed Accuracy, and Automatic Loading System 1
Applications
The JSSCD-100NC is widely used across industries requiring precision cutting of medium diameter materials.
  • Automotive Parts Manufacturing - Cuts transmission shafts, steering components, and chassis hardware with ±0.20 mm accuracy.
  • Fastener Production - High-volume cutting of bolts, screws, and nuts with bundle cutting capability.
  • Hardware Processing - Processes shafts, pins, and precision hardware components from carbon and alloy steel.
  • General Metal Processing - Handles carbon steel, alloy steel, and stainless steel for fabrication shops and steel service centers.
Frequently Asked Questions
Q1: What is the cutting range of the JSSCD-100NC?
A: The machine cuts round bars from φ30 mm to φ100 mm and square bars from 30 mm to 85 mm.
Q2: What is the cutting accuracy?
A: Cutting length tolerance is ≤ ±0.20 mm with feed accuracy of ±0.05 mm.
Q3: What materials can be cut?
A: Carbon steel, alloy steel, stainless steel, and other ferrous metals with hardness up to HRC42.
Q4: Is the machine fully automatic?
A: Yes, it features automatic loading, servo-driven feeding, and front discharge with push-off mechanism.
