Heavy-Duty Circular Sawing Machine For Large-Diameter Steel Bars

Heavy-Duty Circular Sawing Machine For Large-Diameter Steel Bars
Heavy-Duty Circular Sawing Machine For Large-Diameter Steel Bars Heavy-Duty Circular Sawing Machine For Large-Diameter Steel Bars Heavy-Duty Circular Sawing Machine For Large-Diameter Steel Bars Heavy-Duty Circular Sawing Machine For Large-Diameter Steel Bars Heavy-Duty Circular Sawing Machine For Large-Diameter Steel Bars

Large Image :  Heavy-Duty Circular Sawing Machine For Large-Diameter Steel Bars

Product Details:
Place of Origin: China
Brand Name: JSSCD
Certification: HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Model Number: JSSCD-300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: depending on the machine model
Delivery Time: 7-60 work days
Payment Terms: FOB
Supply Ability: 500 Sets Per Year
Contact Now Chat Now

Heavy-Duty Circular Sawing Machine For Large-Diameter Steel Bars

Description
Technical Parameter Specification TCT Circular Saw Blade: φ840 X 4.0 Mm Cutting Capacity: Round Bar: φ100–310 Mm / Square: 40–260 Mm
Feeding Accuracy: ±0.1 Mm Clamping Method: Horizontal + Vertical Hydraulic Clamping
Feed System: Horizontal Feed Cutting Drive: Servo Motor + Precision Ball Screw + Linear Guide
Saw Blade Speed: 30–80 Rpm (Variable Frequency Control) Main Motor Power: 45 KW (4P, Variable Frequency)
Highlight:

Heavy-duty circular saw machine

,

Large-diameter steel bar saw

,

CNC circular sawing machine

Heavy-Duty Circular Sawing Machine For Large-Diameter Steel Bars

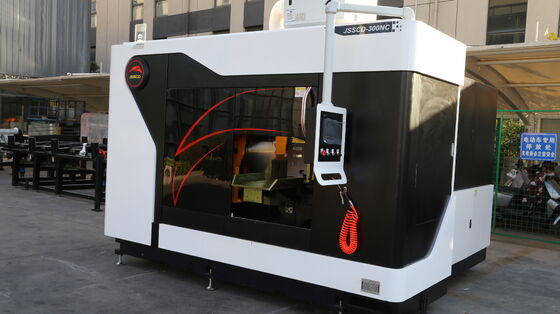

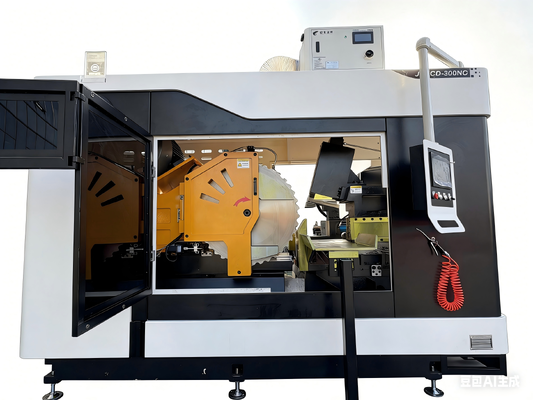

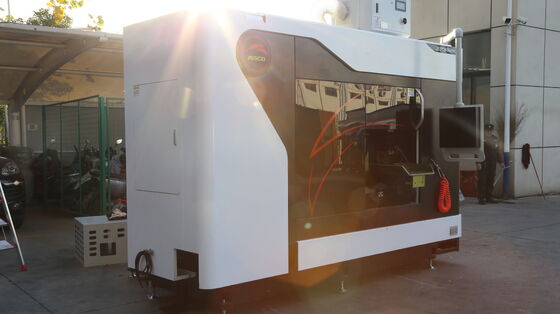

The JSSCD-300NC High-Speed Intelligent Circular Sawing Machine is a heavy-duty cutting solution developed by Saskide Intelligent Machinery Technology Co., Ltd. Featuring a robust horizontal feed structure, this machine is specifically designed for large-diameter round bars and square materials up to 310 mm. Built with a HT250 cast iron base, precision-ground gears, and SKF bearings, it delivers exceptional stability, cutting accuracy, and long-term reliability. Ideal for mass production environments in steel service centers, heavy machinery manufacturing, and automotive industries requiring high-volume precision cutting.
Key Features
  • Horizontal Feed Design: Provides stable and powerful cutting for large-diameter materials
  • High-Rigidity Cast Iron Base: HT250 cast iron with heat treatment for maximum stability and vibration dampening
  • Precision Ground Gears & SKF Bearings: Ensures quiet operation, high transmission efficiency, and extended service life

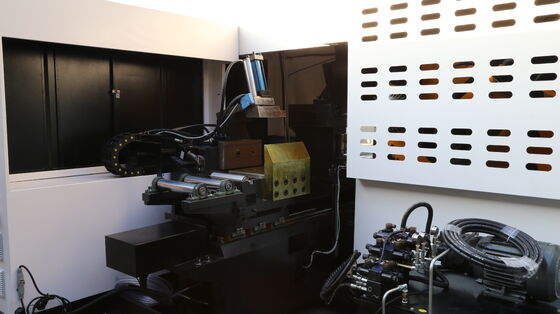

  • Dual Clamping System: Horizontal + vertical hydraulic clamping for secure workpiece holding

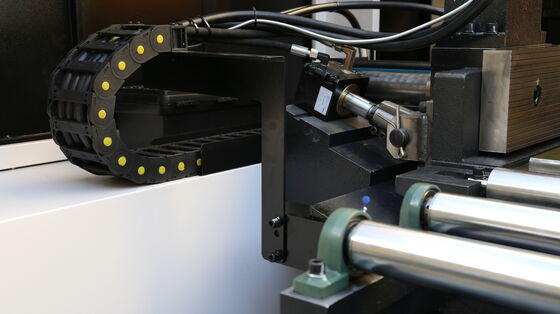

  • Heavy-Duty Servo Feed System: 7.5 kW servo motor + precision ball screw for accurate and powerful cutting
Technical Specifications
Cutting Vertical Accuracy ≤ ±0.2 mm / 100 mm
Cutting Length Accuracy ≤ ±0.15 mm
Kerf Loss ≤ 4.0 mm
Material Rack Capacity 4000-7000 mm
Hydraulic System Pressure 6 MPa
Hydraulic Tank Capacity 150 L
Cooling Method Mist Lubrication Cooling (US SUCCKEY)
Compressed Air Requirement 4-6 bar
Heavy-Duty Circular Sawing Machine For Large-Diameter Steel Bars 0 Heavy-Duty Circular Sawing Machine For Large-Diameter Steel Bars 1
Applications
  • Mass production cutting of large-diameter steel bars and tubes
  • Steel service centers and metal stockists
  • Heavy machinery manufacturing
  • Automotive axle and shaft production
  • Oil and gas industry pipe cutting
  • Construction equipment manufacturing
  • Die and mold material preparation
Frequently Asked Questions
Q1: What materials can the JSSCD-300NC cut?
A: It is designed for large-diameter carbon steel, alloy steel, stainless steel, and tool steel bars with hardness up to HRC42 and strength ≤1800 N/mm².
Q2: What is the maximum cutting capacity?
A: The machine can cut round bars from 100 mm to 310 mm diameter and square materials from 40 mm to 260 mm.
Q3: Can the machine run continuously for mass production?
A: Yes, it is designed for 24/7 operation with a 60-ton heavy-duty material rack holding 6-8 pieces of 300 mm bars, automatic feeding, cutting, chip removal, and part separation.
Q4: What is the daily production capacity?
A: For φ280 mm steel pipe, the machine can produce approximately 1,370 pieces per 20-hour working day.
Q5: What is the minimum cut length?
A: The minimum head cut length is 8 mm (adjustable), and the tail remnant is ≤120 mm plus cutting length.
Q6: Do you provide after-sales service?
A: Yes, we provide installation, training, and 12-month warranty. Technical support is available 24/7 with 24-hour response time for on-site service.
