2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash

2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash
2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash
2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash 2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash 2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash 2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash 2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash 2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash

Large Image :  2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash

Product Details:
Place of Origin: China
Brand Name: JSSCD
Certification: HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Model Number: JSSCD-160NC/P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: depending on the machine model
Delivery Time: 7-60 work days
Payment Terms: FOB
Supply Ability: 500 Sets Per Year
Contact Now Chat Now

2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash

Description
Name: JSSCD-160NC/P CNC High Speed Circular Saw Machine(Horizontal-Push) Color: Red，Black
Condition: New Dimension: 2240x2320x2040
Use: Material Cutting Cuttable Material: Carbon Steel，Stainless Steel，Alloy Steel，Aluminum，Aluminum Alloy，Copper，Copper Alloy，Titanium Alloy，PA
Application: Automobile Manufacturing，Aerospace，Rail Transit，Mechanical Equipment，Hardware Tools，Ship Building，Building Material，Pipeline Engineering，Mold Manufacturing，Electronics Manufacturing Mechanical Control: Intelligent Control，Automation
Saw Type: Straight Cut Cutting Precision: ±0.05mm
Feeding Precision: ±0.1mm FAT: Sample Trial Cutting Verification
Safety Protection Devices: Emergency Braking，Anti-splash Shield Hydraulic Oil: Reusable
Cutting Debris Removal Device: Chain Plate Chip Conveyer
Highlight:

2320MM multifunctional circular saw

,

2040MM multifunctional circular saw

,

circular wood saw Anti splash

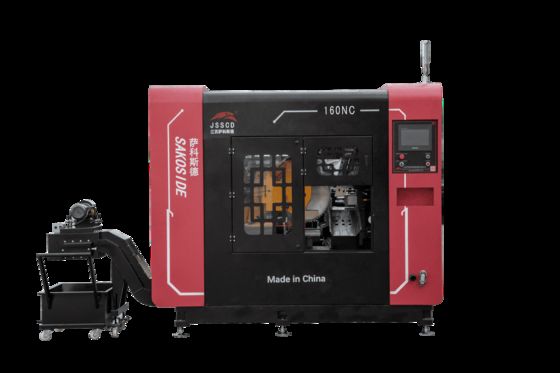

JSSCD-160NC/P CNC High Speed Circular Saw Machine (Horizontal-Push)
Achieving demanding standards in modern metal fabrication requires cutting solutions that combine exceptional speed with unwavering precision. This advanced CNC horizontal circular saw meets this critical need, delivering rapid cutting cycles, automated accuracy, and efficient energy usage for productive metal processing operations.
Core Capabilities & Intelligent Design
  • Innovative horizontal insertion cutting system with AC Servo Motor and precision ball-screw drive
  • Robust hydraulic clamping system (horizontal/vertical hold-down) for diverse material shapes
  • High-strength construction ensures material stability at peak operating speeds
  • Consistent cut quality and high repeatability for intensive continuous production
Sustained Precision & Dependable Operation
  • Integrated backlash compensation mechanism maintains precision during prolonged use

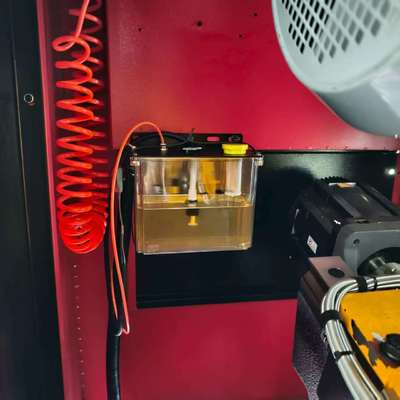

  • Dual lubrication system (self-lubricating and micro-lubrication) minimizes wear
  • Efficient chip conveyor with magnetic particle brake enhances safety and maintenance
  • Carbide-tipped parallel guides ensure orderly workpiece discharge
Boosting Throughput with Automation
Optional high-capacity automated material handling system enables continuous, unattended feeding for maximum output. This integration supports uninterrupted batch processing, maximizing machine utilization and production line efficiency.
Technical Specifications
Model Unit JSSCD-160NC/P
Mainframe dimensions mm 2240*2320*2040
Bar & round pipe mm 40-160
Angle bar & square bar mm 40-130
Saw blade size mm φ480*2.7*φ50
Spindle motor power KW 18.5/15
Spindle speed rpm 20-110
Feed servo motor power KW 2.3
Feeding servo motor power KW 2.7
Material removal length at the front end mm 10-99
Single feeding length (repeatable) mm 10-800
Hydraulic drive motor power KW 3.75(4p)
Rated pressure of the hydraulic system mpa 5.5
Hydraulic oil capacity L 110
Smart Control & Simplified Operation
The sophisticated CNC control system precisely governs cutting parameters for consistent quality. The intuitive operator interface (HMI) allows for straightforward setup and operation, with program management capabilities that reduce operator workload and minimize errors.
2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash 0 2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash 1 2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash 2 2240 X 2320 X 2040MM Multifunctional Circular Saw Circular Wood Saw Anti Splash 3
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
What is your factory acceptance test method?
We perform test cuts with sample materials you provide and share detailed cutting data along with video documentation.
What is your method of transaction?
We typically use FOB (Free On Board) transactions, with 30% deposit and 70% balance before shipment.
Does the band saw blade have any international certifications?
Yes, we have obtained CE and ISO international certifications.
