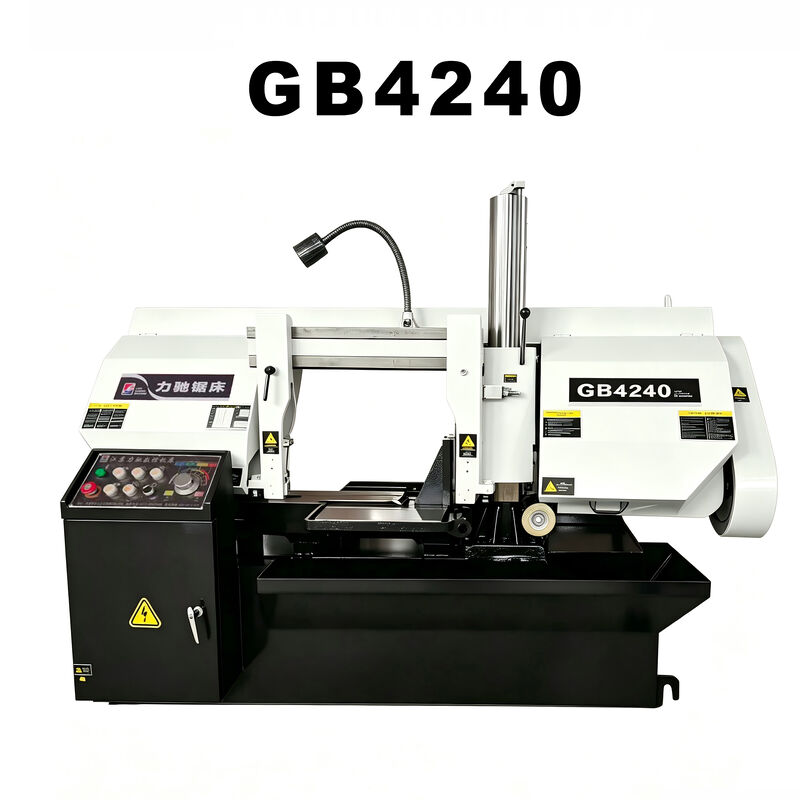

GB4240 Main Auxiliary Column Horizontal Bandsaw Metal Sawing Machine

The GB4240 Horizontal Bandsaw Machine is designed for cutting round bars, pipes, square and rectangular sections, plates, and other common metal materials. With a maximum round cutting diameter of 400 mm and a maximum rectangular cutting capacity of 500 * 400 mm, it is suitable for metal processing workshops and small to medium-batch production operations.

The machine features a hydraulic workpiece clamping system, hydraulically driven saw frame lifting, and steplessly adjustable hydraulic cutting feed. Its belt-pulley speed adjustment system provides four blade speed settings to accommodate different cutting requirements.

Built with a rigid welded structure, a precision worm gear transmission system, and an adjustable blade guide assembly, the GB4240 is designed to support stable operation and reliable cutting performance. The standard roller-type material support rack facilitates material handling, while the integrated hydraulic and cooling systems support routine industrial cutting operations.

The GB4240 is a practical solution for manufacturers seeking a versatile horizontal bandsaw machine for metal stock preparation, component manufacturing, and general metal fabrication.

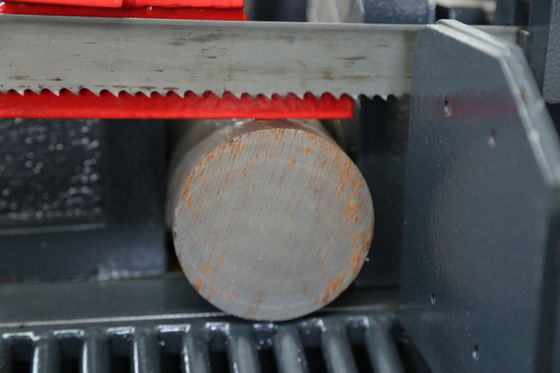

Large Cutting Capacity: Cuts round workpieces up to Ø400 mm and rectangular sections up to 500 * 400 mm.

Hydraulic Workpiece Clamping: Uses a hydraulic cylinder-operated clamping system to secure workpieces during cutting.

Stepless Hydraulic Feed Adjustment: Allows the cutting feed to be adjusted continuously according to material characteristics and cutting conditions.

Four Blade Speed Settings: Provides blade speeds of 30, 45, 60, and 80 m/min through belt-pulley adjustment.

Hydraulic Saw Frame Lifting: The saw frame moves vertically through hydraulic cylinder actuation, with adjustable travel positioning from 0 to 400 mm.

Adjustable Blade Guide Arms: Movable guide arms accommodate different workpiece widths and help maintain blade alignment.

Rigid Welded Construction: The welded machine base and saw frame undergo vibration-aging treatment to help relieve residual welding stress.

Precision Worm Gear Transmission: Precision-machined worm gear components support reliable power transmission.

Roller-Type Material Support: Comes with a standard roller-type material rack measuring 1,000 mm in length.

Integrated Cooling System: A 60 W cooling pump supports the cutting process.

Convenient Push-Button Operation: Centralized electrical controls simplify routine machine operation.

Optional Upper Clamping Device: An additional upper clamping assembly can be selected according to workpiece requirements.

The GB4240 Horizontal Bandsaw Machine is suitable for cutting common metal stock in a variety of industrial applications.

Steel Processing: Cutting round steel bars, square bars, rectangular sections, and other steel stock to length.

Pipe and Tube Manufacturing: Cutting metal pipes and tubes for further processing and assembly.

Metal Fabrication: Preparing metal sections and plates for fabrication projects.

Machinery Manufacturing: Producing cut-to-length materials for machine components and mechanical assemblies.

Building Materials: Cutting metal profiles and structural sections used in construction-related applications.

Industrial Equipment Manufacturing: Preparing metal raw materials for equipment production and component fabrication.

General Metalworking Workshops: Supporting routine stock cutting and small to medium-batch production.

Q1: Are you a manufacturer or a trading company?

A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.

Q2: What is your factory acceptance test method?

A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)

Q3: How about your delivery time?

A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.

Q4: Is the GB4240 suitable for batch cutting?

A: Yes. The machine is described as suitable for small and medium-batch material cutting. Its hydraulic clamping, adjustable blade speeds, and stepless hydraulic feed help support routine production operations.

Q5:What maintenance does the GB4240 require?

A:Routine maintenance includes inspecting the saw blade and its tension, cleaning chips from the machine, checking coolant levels, inspecting hydraulic components for leaks, and maintaining the transmission and guide components according to the manufacturer's maintenance instructions.

Q6:Can an upper clamping device be added?

A:Yes. The technical document lists an upper clamping device as an optional accessory. Please specify your workpiece shape and cutting requirements so that the appropriate configuration can be confirmed.
