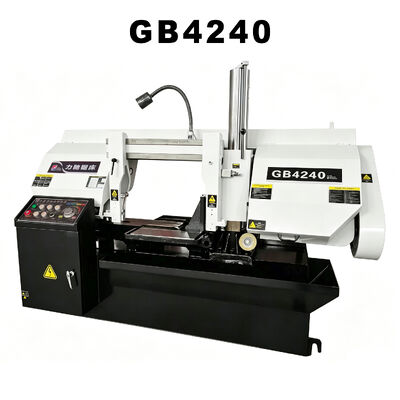

GB4240 Horizontal Band Saw for Carbon Steel Stainless Steel Alloy Steel Cutting

The GB4240 Horizontal Metal Band Saw Machine is designed for cutting metal pipes, square tubes, plates, and other common metal materials. Featuring a dual-column structure, hydraulic workpiece clamping, and adjustable hydraulic feed, this machine provides a practical solution for metal cutting operations in small and medium-sized production environments.

The machine uses a hydraulic system to control the saw frame movement and workpiece clamping, helping simplify daily operation. Its roller-type material support rack facilitates workpiece positioning and handling, while the adjustable band saw speed allows operators to select a suitable cutting speed according to the material and cutting requirements.

The GB4240 is equipped with a 4 kW main motor, a 0.75 kW hydraulic motor, and a 60 W coolant pump. With a maximum cutting capacity of Ø400 mm for round materials and 500 * 400 mm for rectangular materials, it is suitable for workshops and manufacturing facilities that require reliable metal cutting for small and medium-sized batches.

The machine also features a welded saw frame, band saw blade guiding components, and a hydraulic clamping system to support stable cutting operations. Installation assistance, operator training, maintenance documentation, and after-sales technical support are available according to the manufacturer's service terms.

The dual-column design supports the saw frame during cutting operations, providing a stable structural arrangement for metal cutting applications.

The hydraulic clamping system securely holds the workpiece during cutting. Operators can control clamping and releasing through buttons on the control panel.

The hydraulic feed speed can be adjusted continuously to suit different materials and cutting conditions, helping operators select appropriate feed settings for their applications.

The machine offers four band saw speed settings: 30, 45, 60, and 80 m/min. These options allow operators to select a suitable blade speed according to the material and cutting requirements.

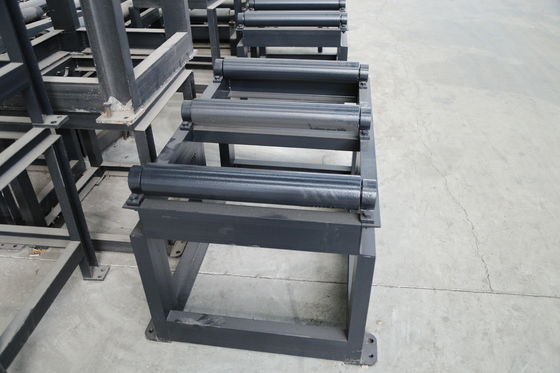

The standard roller-type support rack is 1,000 mm long. It supports material positioning and handling before cutting.

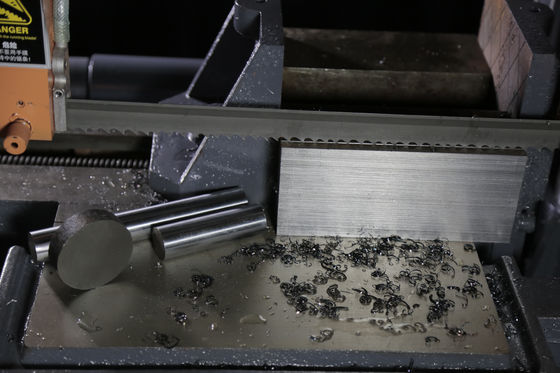

The left and right guide arms can be adjusted along the guide structure to accommodate different workpiece dimensions. The guiding system includes rolling bearings and wear-resistant guide blocks to help maintain blade alignment and reduce vibration.

The saw frame is constructed from welded steel plates with reinforcing ribs and undergoes vibration aging treatment to help relieve welding stress and improve structural stability.

The hydraulic system controls saw frame movement and workpiece clamping. It consists of a pump, valves, cylinders, an oil tank, pipelines, and related hydraulic components.

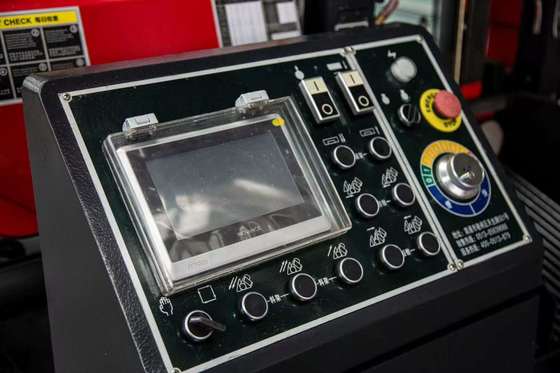

The machine uses a button-operated control panel. The manufacturer provides installation and commissioning assistance, operator training, and technical documentation according to the agreed service arrangements.

The GB4240 Horizontal Metal Band Saw Machine is suitable for metal cutting operations involving common metal materials, particularly in small and medium-sized production batches.

Suitable for cutting round pipes, square tubes, and other tubular metal materials within the machine's cutting capacity.

Can be used for cutting suitable metal plate workpieces, subject to the machine's cutting capacity and workpiece configuration.

Suitable for cutting compatible metal stock into required lengths for subsequent machining, fabrication, or assembly processes.

Applicable to workshops and manufacturing facilities that require routine metal cutting for component preparation and production.

Designed for production environments that require practical operation, hydraulic clamping, and adjustable cutting feed for repeated cutting tasks.

Material Compatibility: The machine is intended for common metal materials. The appropriate blade specification and cutting parameters should be selected according to the material type, hardness, workpiece dimensions, and required cutting results.

Q1: How about your delivery time?

A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.

Q2: How about the payment term?

A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)

Q3: Does the band saw blade have any international certifications?

A: Yes, we have obtained CE, ISO international

Routine maintenance should follow the manufacturer's instructions. Typical checks include inspecting the band saw blade, cleaning accumulated chips, checking the coolant system, inspecting hydraulic components, and verifying that the blade guides remain in good condition.

The GB4240 uses a dual-column structure to support the saw frame. The suitability of this design depends on the workpiece dimensions, cutting requirements, and production conditions. Customers should compare the cutting capacity and configuration of the specific models before making a selection.
