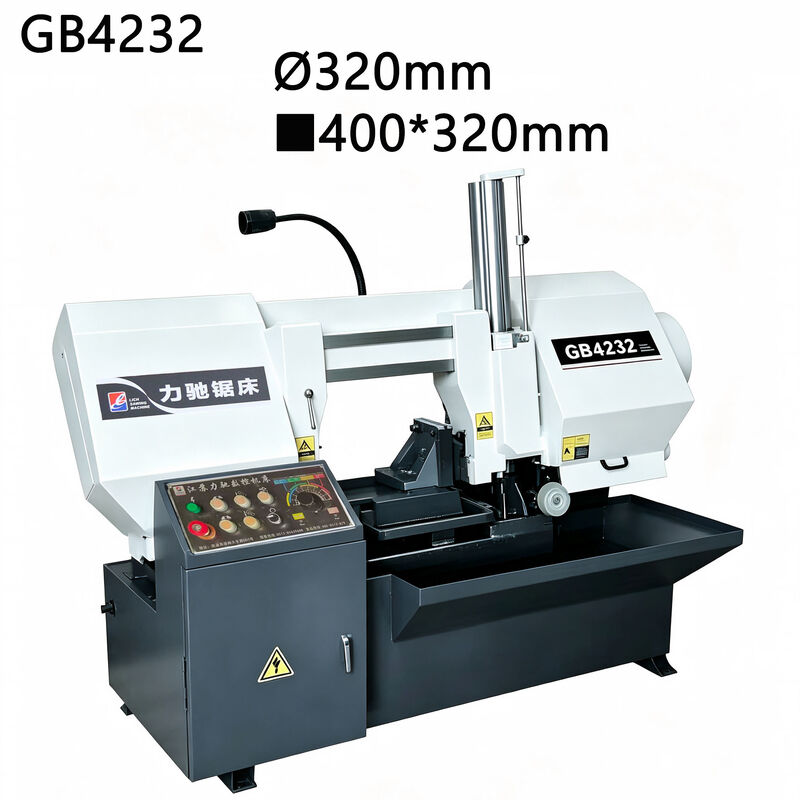

GB4232 Twin Column Horizontal Band Saw Machine For Metal Cutting Manufacturer

Product Introduction

The GB4232 Double-Column Horizontal Band Saw Machine is designed for efficient and accurate cutting of various metal materials, including round tubes, square tubes, plates and other common metal workpieces.

As a mature horizontal band sawing machine, the GB4232 has been continuously improved by incorporating advanced technologies from similar machines. It combines high cutting accuracy, reliable operation and efficient sawing performance, making it particularly suitable for small- and medium-batch material cutting applications.

The machine adopts a hydraulic clamping system, a rigid welded saw frame, adjustable blade guide assemblies and hydraulic control for saw-frame movement and workpiece handling. The roller-type material support rack makes workpiece positioning and feeding more convenient.

With its practical structure and straightforward operation, the GB4232 is suitable for metal fabrication, structural steel processing, tube cutting and general industrial material preparation.

Key Features

1. Rigid Welded Saw Frame

The saw frame adopts a welded steel-plate structure reinforced with properly arranged ribs. After vibration stress-relief treatment, welding stress is redistributed and reduced, helping improve the stability of the saw frame during operation.

2. Hydraulic Workpiece Clamping

The hydraulic clamping system combines a quality hydraulic cylinder with precision guide rods to securely clamp the workpiece during sawing. The left vise can be adjusted according to the workpiece size, while hydraulic clamping and releasing are controlled through the operating panel.

3. Adjustable Blade Guide System

The left and right blade guide arms can be moved along the dovetail structure to accommodate different workpiece sizes. The guide system helps maintain the blade perpendicular to the worktable and reduce vibration during cutting.

4. Hydraulic Saw Frame Lifting

The saw frame uses a combination of columns and hydraulic cylinders for vertical movement. The hydraulic system controls saw-frame lifting as well as workpiece clamping, feeding and return operations.

5. Multi-Speed Blade Selection

The GB4232 provides four selectable band saw blade speeds:

• 30 m/min
• 45 m/min
• 60 m/min
• 80 m/min

This allows operators to select an appropriate cutting speed according to the material and cutting requirements.

6. Hydraulic Cutting Feed

The saw blade cutting feed is hydraulically controlled, with a feed range of 0–280 mm/min, allowing the cutting process to be adjusted according to different workpiece conditions.

7. Reliable Main Transmission

The main transmission uses a worm gear and worm drive. The worm gear is manufactured from tin bronze and precision-machined, while the hardened worm is ground on a precision worm grinding machine. The worm gear housing is made of Meehanite cast iron.

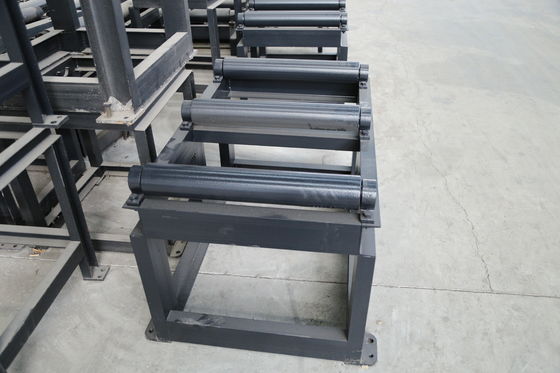

8. Roller-Type Material Support

A roller-type material support rack is provided to support workpieces during cutting and make material positioning more convenient.

9. Integrated Hydraulic and Electrical Control

The hydraulic system consists of pumps, valves, cylinders, oil tank, pipelines and integrated components. Together with the electrical control system, it performs saw-frame lifting, workpiece clamping, feeding and return operations.

Technical Specifications

Applications

The GB4232 horizontal metal band saw machine is suitable for cutting a wide range of metal workpieces, particularly:

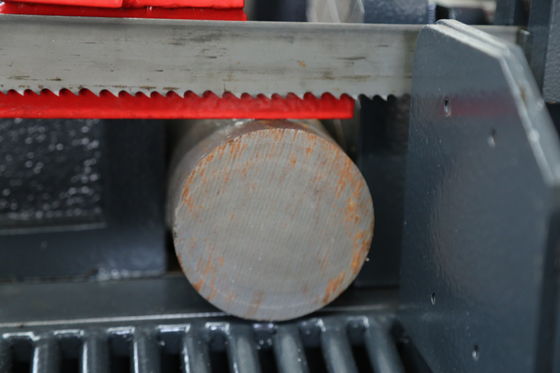

Round Tubes

Suitable for cutting various round tube materials used in general metal fabrication and manufacturing.

Square & Rectangular Tubes

The machine can be used for cutting square and rectangular tube sections for structural and fabrication applications.

Metal Plates

The machine can also be applied to the cutting of various plate-type metal workpieces.

General Metal Materials

The GB4232 is designed for cutting various common metal materials and is particularly suitable for small- and medium-batch material preparation.

Typical Industries

• Metal Fabrication
• Steel Structure Manufacturing
• Tube & Pipe Processing
• Machinery Manufacturing
• General Metalworking
• Industrial Material Preparation
• Small- and Medium-Batch Production

FAQ

Q1: Are you a manufacturer or a trading company?

A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.

Q2: What is your factory acceptance test method?

A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)

Q3: How about the payment term?

A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)

Q4:What materials can the GB4232 band saw machine cut?

A:The GB4232 is designed for sawing various metal workpieces, including round tubes, square tubes, plates and other common metal materials.

Q5:Is the saw frame hydraulically controlled?

A:Yes. The saw frame is driven vertically by a combination of columns and hydraulic cylinders. The hydraulic system also controls workpiece clamping, feeding and return operations.
