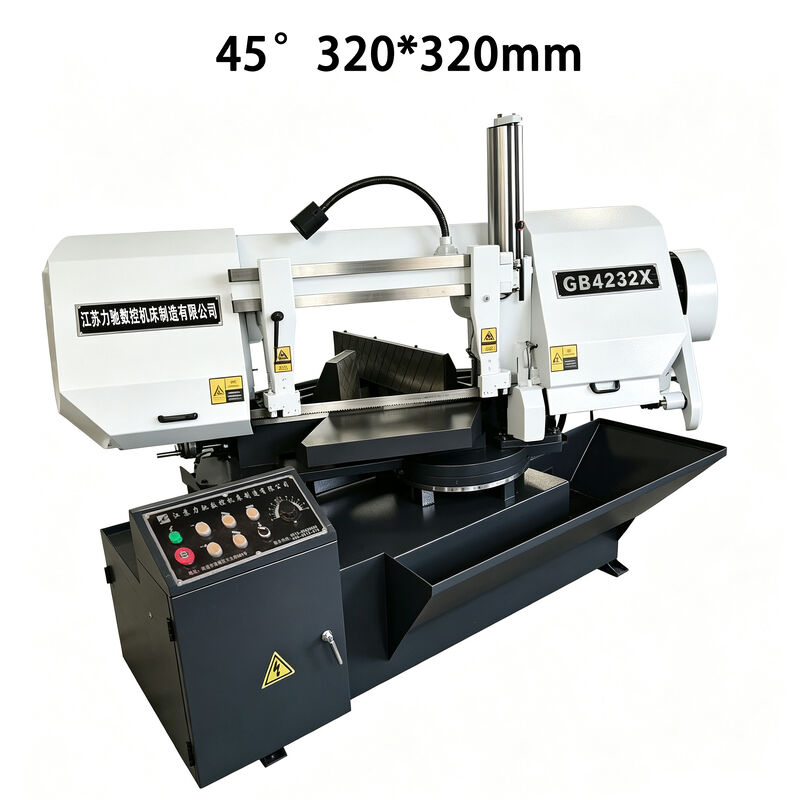

The GB4232X45° Angle Cutting Horizontal Band Saw Machine is a horizontal metal band saw designed for precision angle cutting of metal workpieces. The saw frame can be manually rotated from 0° to 45°, allowing operators to perform straight and angled cuts according to different processing requirements.
The machine adopts a hydraulic workpiece clamping system, hydraulic saw-frame feeding, manual blade tensioning and a four-speed blade drive system. The blade cutting direction is vertical, while the saw frame provides adjustable angle positioning for 45° angle cutting.
With hydraulic stepless feed-speed adjustment, adjustable blade speed of 30/45/60/80 m/min, and a maximum 45° angle cutting capacity of 320 * 320 mm, the GB4232X45° is suitable for metal fabrication and applications requiring both straight and angled cuts.
2. Key Features
1. 0°–45° Adjustable Cutting Angle
The saw frame can be manually rotated and positioned at any angle between 0° and 45°, providing flexibility for different angle-cutting requirements.

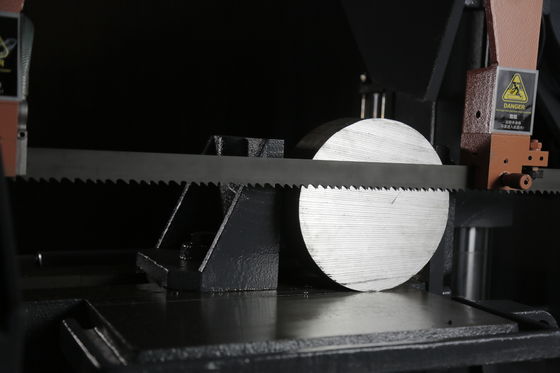

2. Hydraulic Workpiece Clamping
The machine uses a hydraulic clamping system consisting of a worktable, hydraulic cylinder, movable jaw and fixed vise. The vise can be controlled from the operation panel for convenient workpiece clamping and release.
3. Hydraulic Stepless Feed Control
The saw-band feed speed is controlled hydraulically. The feed speed can be continuously adjusted through the control panel, allowing operators to select a suitable cutting feed according to the workpiece and cutting conditions.
4. Four-Speed Blade Speed Selection
The blade speed can be selected from 30, 45, 60 and 80 m/min, providing different cutting speeds for different materials and processing requirements.
5. Adjustable Saw Blade Guide System
The blade guide system consists of left and right guide arms and guide heads. The left guide arm can be adjusted according to the size of the workpiece to help maintain appropriate blade guidance during cutting.
6. Efficient Cooling System
The cooling system supplies coolant to the cutting area through a coolant tank, pump, pipes, valves and nozzles. The system helps improve cutting performance, extend blade life, maintain cutting quality and remove chips from the teeth.
7. Rigid Welded Box-Type Machine Bed
The machine bed adopts a welded box-type structure designed to support the columns, saw frame and hydraulic components. The internal space of the machine bed also serves as the hydraulic oil tank and coolant reservoir.
8. Integrated Hydraulic and Electrical Control
The hydraulic system controls functions including saw-frame movement, workpiece clamping, angle positioning and other operating functions through the control panel and electromagnetic valves.
Technical specifications
| Model |
Unit |
JSSCD-GB4232X45° |
| Maximum 45°Angle Cutting Capacity |
mm |
320*320 |
| Blade Speed |
m/min |
30/45/60/80 |
| Band Saw Blade Size |
mm |
4550*34 |
| Main Motor Power |
kw |
4 |
| Hydraulic Motor Power |
kw |
0.75 |
| Coolant Pump Motor |
w |
40 |
| Saw Frame Rotation |
|
0°-45° |
| Machine Dimensions |
mm |
2300*1500*1500 |

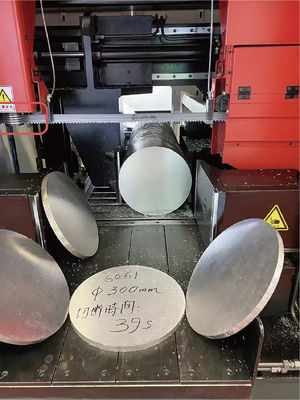

4. Applications
The GB4232X45° Angle Cutting Horizontal Band Saw Machine is suitable for metal cutting applications where both straight cutting and angled cutting are required.
Metal Fabrication
Suitable for cutting metal workpieces to required lengths and angles during fabrication processes.
Structural Metal Processing
The adjustable 0°–45° saw-frame rotation makes the machine suitable for applications involving angled cuts in structural metal components.
General Machinery Manufacturing
The hydraulic clamping, adjustable blade speed and hydraulic feed system make the machine suitable for general metal component processing.
Angle Cutting Operations
The machine is particularly suitable for applications requiring 45° angle cutting, with a specified maximum 45° angle cutting capacity of 320 * 320 mm.
Metal Stock Preparation
With a standard roller material rack and automatic saw-frame return, the machine can be used for repetitive metal stock cutting operations.
FAQ
Q1: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q3: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international
Q4: How is the cutting angle set on the GB4232X45°?
A: The cutting angle is adjusted through the machine's manual rotation mechanism. The saw frame can be positioned at any required angle between 0° and 45°.
Q5: How does the machine maintain the saw blade position during cutting?
A: The machine is equipped with left and right blade guide arms and guide heads. The guide system includes guide rollers and guide blocks, while the left guide arm can be adjusted according to workpiece size.
