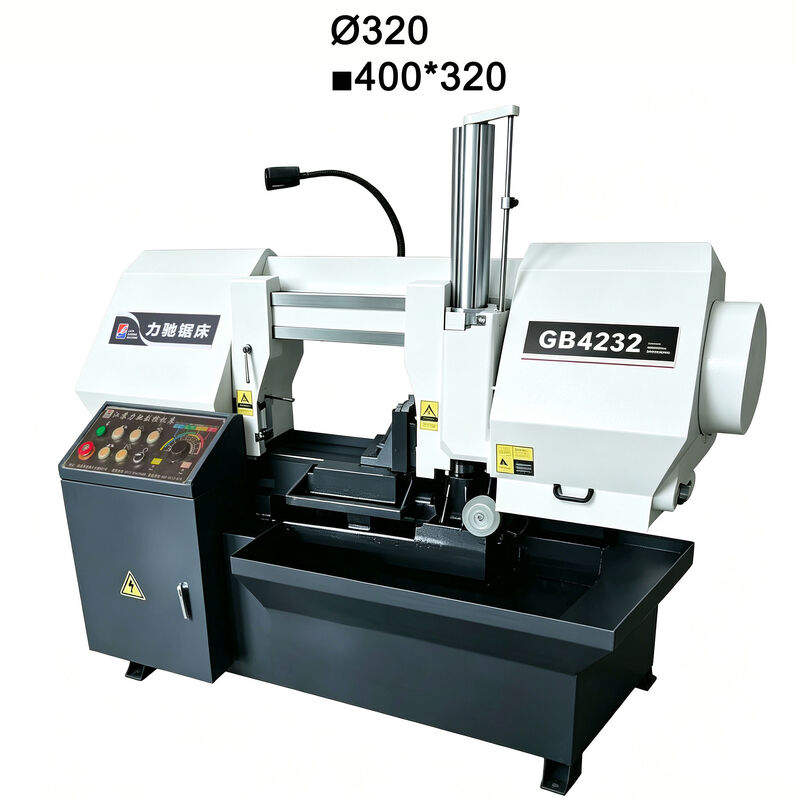

The GB4232 Horizontal Metal Band Saw Machine is a horizontal band saw designed for efficient and accurate cutting of various metal workpieces, including round tubes, square tubes, plates, and other common metal materials.

As a mature model developed and continuously improved by the manufacturer, GB4232 incorporates proven sawing technologies and a robust mechanical structure. It is characterized by high cutting accuracy, stable operation, and high working efficiency, making it particularly suitable for small- and medium-batch metal cutting applications.

The machine adopts a hydraulic clamping system and hydraulic lifting mechanism. The workpiece can be loaded from the rear side of the machine and positioned for cutting. Electrical and hydraulic systems work together to complete workpiece clamping, positioning, feeding, and saw frame movement.

Its welded box-type base, reinforced saw frame, adjustable blade guide system, hydraulic clamping, and integrated cooling system provide a stable foundation for reliable metal cutting operations.

Key Features

1. High-Strength Welded Machine Base

The machine base adopts a welded box-type steel plate structure. The welded structure undergoes vibration stress relief treatment to reduce welding deformation and improve structural stability.

2. Rigid Reinforced Saw Frame

The saw frame adopts an arched structure consisting of left and right saw frames and a crossbeam. It is fabricated from high-quality steel plates with reinforced ribs and subjected to vibration stress relief treatment.

3. Adjustable Blade Guide System

The guide system helps maintain the blade installation angle and keeps the blade perpendicular to the worktable. Guide bearings, wear-resistant guide blocks, and rear blade support bearings work together to reduce vibration and support cutting accuracy.

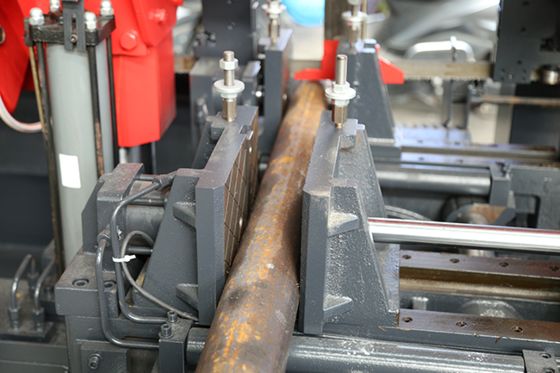

4. Hydraulic Workpiece Clamping

GB4232 uses a hydraulic clamping system combined with a high-quality hydraulic cylinder and precision guide components.

The workpiece can be securely clamped before cutting, while the clamping mechanism is operated through the control panel for convenient operation. An upper clamping device is available as an option.

5. Hydraulic Saw Frame Lifting

The saw frame is lifted by a column-and-hydraulic-cylinder mechanism. The hydraulic system controls saw frame lifting as well as workpiece clamping, feeding, and return operations.

6. Multiple Blade Speed Options

The GB4232 supports four saw blade line speeds:

• 30 m/min
• 45 m/min
• 60 m/min
• 80 m/min

This allows the machine to be adapted to different metal cutting requirements.

7. Hydraulic Cutting Feed

The saw cutting feed speed can be adjusted from 0 to 280 mm/min, allowing operators to control the cutting process according to workpiece conditions.

8. Integrated Cooling System

The machine is equipped with a water cooling system with a 40 W cooling pump, helping provide coolant during the sawing process.

Technical specifications

Applications

The GB4232 Horizontal Metal Band Saw Machine is suitable for a wide range of metal cutting applications, particularly small- and medium-batch material preparation.

Typical applications include:

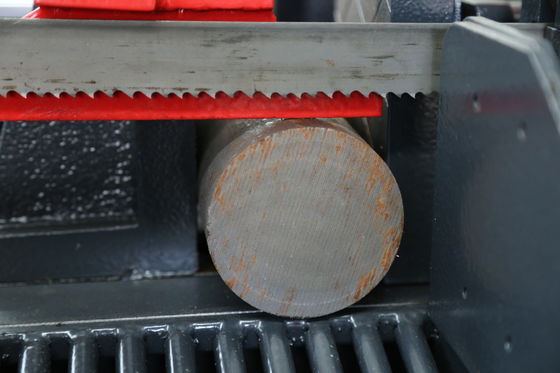

• Round tube cutting
• Square tube cutting
• Metal plate cutting
• Common metal material cutting
• Metal stock preparation
• Small-batch production cutting
• Medium-batch production cutting
• General metal fabrication

The manufacturer specifically describes GB4232 as suitable for cutting various round tubes, square tubes, plates, and common metal materials, with high cutting accuracy and efficiency for small- and medium-batch production.

Recommended Industries

• Metal fabrication
• Steel processing
• Machinery manufacturing
• General manufacturing
• Metal component production
• Structural metal processing
• Material preparation

FAQ

Q1: What is your method of transaction?

A: We adopt the FOB(Free ON Board) transaction.

Q2: Where is your factory located?

A: Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.

Q3: Does the band saw blade have any international certifications?

A: Yes, we have obtained CE, ISO international

Q4: What type of blade tensioning system does it use?

A: The technical documentation specifies manual blade tensioning.

Q5: How is the saw frame lifted?

A: The saw frame uses a column combined with a hydraulic cylinder for vertical movement. The hydraulic system also handles workpiece clamping, feeding, and return operations.
