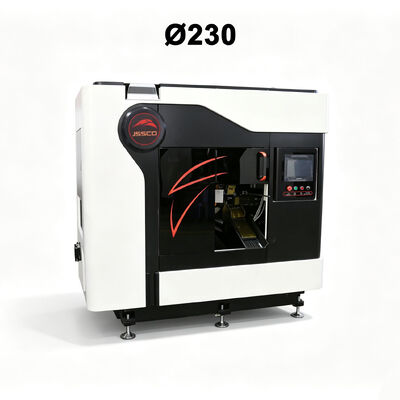

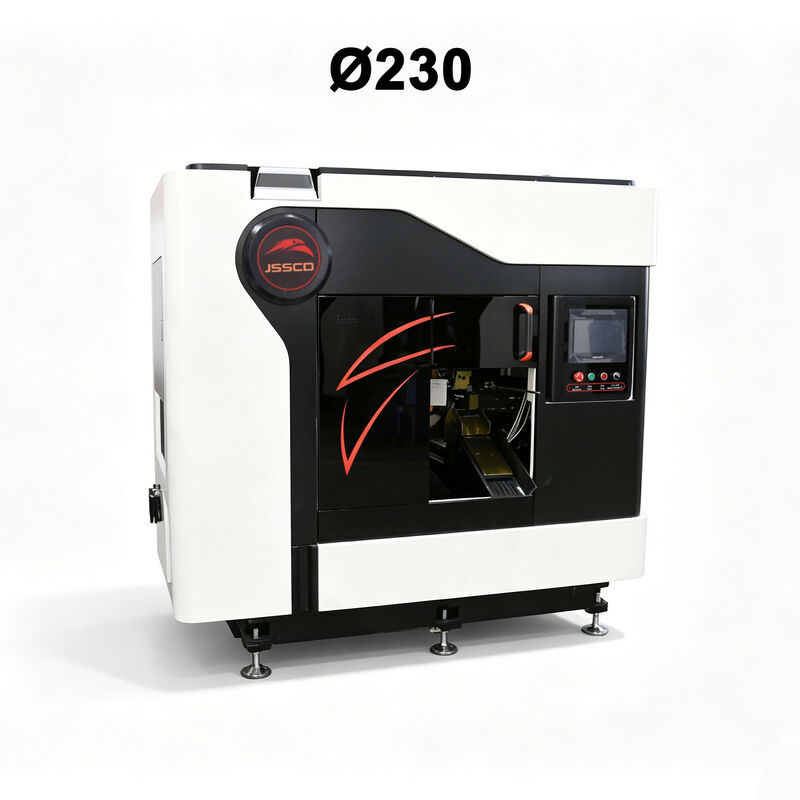

JSSCD-230NC High-Speed Intelligent CNC Circular Saw Machine
The JSSCD-230NC High-Speed Intelligent CNC Circular Saw Machine is a high-performance metal cutting solution designed for high-volume production, precision cutting, and automated metal processing.
With a maximum round bar cutting capacity of Ø230 mm and square material cutting capacity of 80–175 mm, the JSSCD-230NC is designed for medium- and large-section metal bar cutting applications. The machine is equipped with a 30 kW wide-frequency main motor, servo-driven cutting and feeding systems, hydraulic clamping, automatic feeding, automatic material loading, automatic sorting, micro-spray lubrication, and automatic chip removal.

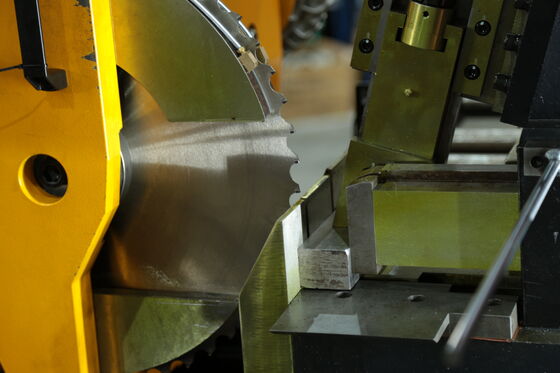

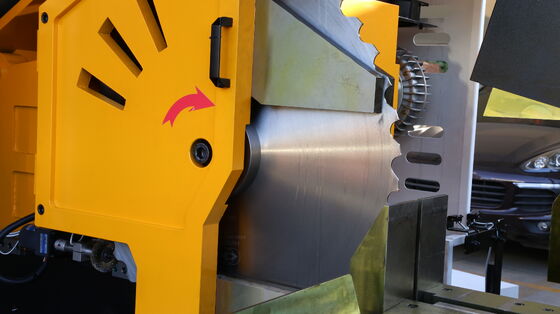

The machine adopts a horizontal push-feed cutting structure, in which a servo motor and precision ball screw drive the saw head. This structure provides stable saw blade feeding while allowing the cutting feed speed to be continuously adjusted according to material type and cross-sectional dimensions.
The JSSCD-230NC is designed for automated production. Except for loading and removing bundled raw materials, the machine can automatically complete material feeding, clamping, cutting, head and tail material handling, and finished-product processing. Ethernet communication and reserved communication interfaces also allow the machine to be integrated into automated production lines.
Key Features
1. High-Rigidity Horizontal Push-Feed Structure
The JSSCD-230NC uses a horizontal push-feed cutting structure designed to provide stable saw blade movement during cutting.
The saw head is driven by a servo motor combined with a precision ball screw, enabling precise control of the cutting feed rate and feed amount. The structure helps reduce vibration and improve cutting stability, while also reducing stress on the ball screw and extending its service life.
2. Ø230 mm Maximum Round Bar Cutting Capacity
The JSSCD-230NC provides a larger cutting capacity for medium- and large-diameter metal stock.
Cutting range:
- Round bars: Ø80–Ø230 mm
- Square materials: 80–175 mm
This makes the machine suitable for applications involving large steel bars, alloy steel, structural materials, and other metal workpieces.
3. 30 kW High-Power Main Motor
The machine is equipped with a 30 kW / 6P wide-frequency main motor, providing the cutting power required for large-section metal materials.
The saw blade speed is adjustable from 30 to 80 rpm, allowing cutting parameters to be adapted to different material types and workpiece dimensions.
4. Servo-Driven Precision Feeding
The feeding system uses a servo motor and precision ball screw to provide fast and accurate material positioning.
The system supports continuous adjustment of feeding speed according to material type and cross-sectional dimensions. A high-response position feedback system provides a repeat positioning accuracy of up to ±0.01 mm, helping maintain consistent cutting dimensions during continuous production.
The feeding system also includes overload protection. When abnormal resistance is detected, the machine can automatically pause and issue an alarm to help protect the equipment.

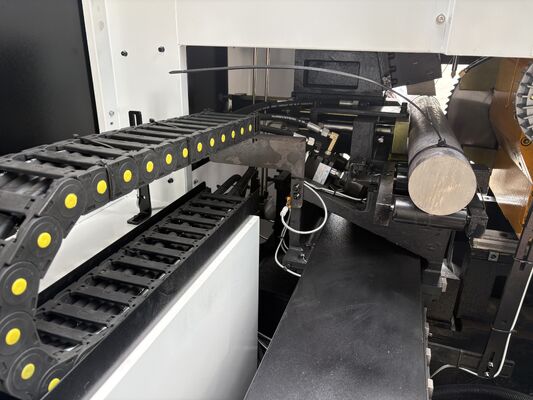

5. Automatic Feeding and Quantity Counting
The automatic feeding system is driven by an AC servo motor and precision ball screw.
The feeding speed can reach 5–20 m/min, while the single feeding length is 10–750 mm, with reciprocating feeding available.
6. Fully Automatic Material Loading
The JSSCD-230NC can automatically load individual bars from bundled raw materials.
The automatic detection system monitors the front end of the material to improve feeding consistency.
This configuration is particularly suitable for high-volume and continuous production, reducing manual material handling and auxiliary production time.
7. High-Rigidity Cast Iron Machine Bed
The machine bed is manufactured from HT250 high-quality cast iron and undergoes high-temperature tempering and aging treatment.
According to the technical documentation, the cast iron machine bed provides better rigidity and stability than conventional welded steel structures.
8. High-Precision Gearbox and Spindle System
The gearbox housing is manufactured from high-strength castings, while the transmission gears undergo special heat treatment and precision grinding.
The machine uses SKF and NSK high-precision bearings in the main gearbox system to ensure smooth and reliable power transmission.

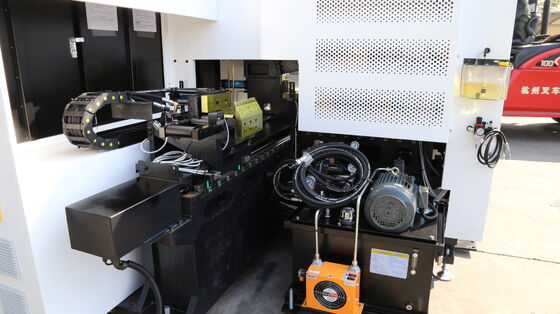

9. Hydraulic Multi-Point Clamping
The JSSCD-230NC uses an integrated clamping structure with horizontal hydraulic clamping and an upper pressing device.
The front and rear clamps can operate simultaneously, while clamping pressure can be adjusted according to workpiece requirements.
10. Automatic Head and Tail Material Sorting
This eliminates repetitive manual sorting and improves the overall automation level of the production process.
11. Micro-Spray Cooling and Lubrication
The machine uses a micro-spray lubrication system combined with forced-air cooling.
Environmentally friendly cutting oil is sprayed directly toward the saw teeth and both sides of the saw blade.
12. Automatic Saw Blade Chip Cleaning
A steel-wire brush cleaning device automatically removes metal chips attached to the saw teeth during cutting.
This helps prevent residual chips from causing secondary cutting, reduces unnecessary saw blade wear, and extends blade service life.
13. Automatic Lubrication System
The machine is equipped with an independent enclosed automatic lubrication system for bearings, guideways, and other mechanical transmission components.
Automatic lubrication reduces manual maintenance requirements and helps extend the service life of critical mechanical components.
14. CNC Control and Production Line Integration
The system supports Ethernet communication and reserved communication interfaces, making the JSSCD-230NC suitable for integration with automated production lines.
Technical specifications
| Model |
Unit |
JSSCD-230NC |
| Saw blade size |
mm |
Ø680*2.7*3.4*80 |
| Round bar cutting range |
mm |
Ø80-Ø230 |
| Square material cutting range |
mm |
80-175 |
| Saw blade speed |
rpm |
30-80 |
| Main motor power |
kw |
30/6P |
| Cutting servo motor |
kw |
5.5 |
| Feeding servo motor |
kw |
4.4 |
| Feeding accuracy |
mm |
±0.05 |
| Feeding speed |
m/min |
5-20 |
| Minimum head cutting length |
mm |
≥10 |
| Raw material rack length |
mm |
4,000-7,000 |
| Hydraulic motor |
kw |
5.5 |
| Hydraulic Oil tank capacity |
196L |
|
| Machine dimensions |
mm |
3230*2842*2315 |
| Machine weight |
kg |
Approx. 7,000kg |
Applications
The JSSCD-230NC High-Speed Intelligent CNC Circular Saw Machine is designed for high-precision and high-volume metal cutting applications, particularly where automated feeding and consistent cutting performance are required.
Typical Applications
- Steel bar cutting
- Round steel bar processing
- Large-diameter metal bar cutting
- Square steel cutting
- Alloy steel processing
- Metal tube cutting
- Structural steel preparation
- Forged component preparation
- Automotive component manufacturing
- Machinery component manufacturing
- Steel fabrication
- Metal processing
- High-volume bar cutting
- Automated metal cutting production lines
With a cutting capacity of Ø80–Ø230 mm for round bars and 80–175 mm for square materials, the JSSCD-230NC is especially suitable for medium- and large-section metal stock.
The combination of 30 kW main power, servo feeding, automatic loading, hydraulic clamping, automatic sorting, micro-spray lubrication, automatic chip removal, and CNC control makes it particularly suitable for continuous production environments.
FAQ
Q1: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q3: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international
Q4: Is an oil mist collector available?
A: Yes. An oil mist recovery unit is available as an optional configuration. The technical documentation states that the system can achieve an oil-fume removal rate of more than 95% under the specified treatment conditions.
Q5: What is the machine suitable for?
A: The JSSCD-230NC is particularly suitable for high-volume, continuous metal bar cutting, especially applications involving medium- and large-diameter round bars and square materials. Its automatic feeding, loading, sorting, and CNC control functions reduce manual intervention and improve production efficiency.
