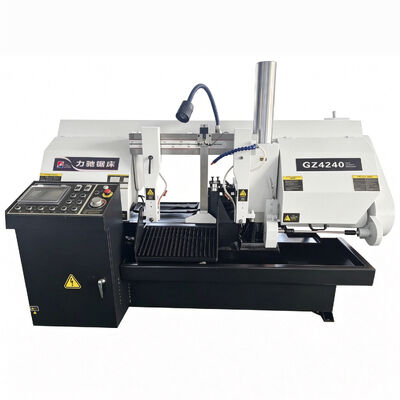

The GZ4240 CNC Horizontal Band Saw Machine is a high-performance automatic metal cutting machine designed for efficient and precise cutting of medium and large-sized metal materials.
With a maximum cutting capacity of 400mm diameter for round materials and 400mm for plate materials, the GZ4240 is suitable for a wide range of industrial cutting applications, including steel bars, pipes, profiles, and other metal components.
The machine integrates mechanical structure, hydraulic transmission, PLC control system, and human-machine interface technology to achieve safe, efficient, stable, and energy-saving cutting performance.
Equipped with hydraulic feeding, hydraulic clamping, automatic and manual operation modes, and precision positioning through a grating ruler system, the GZ4240 provides reliable performance for both batch production and flexible manufacturing requirements.
Key Features
1. Large Cutting Capacity for Industrial Applications
The GZ4240 CNC band saw machine is designed for heavy-duty metal cutting, with a maximum cutting capacity of:
- Round material: Φ400mm
- Plate material: 400mm
It is suitable for processing larger metal components used in machinery manufacturing, automotive parts, bearing production, and other industries.
2. High-Rigidity Machine Structure
The machine adopts a robust structural design consisting of:
- Base
- Machine bed
- Column structure
- Saw frame
- Transmission system
- Blade guiding device
- Workpiece clamping mechanism
The machine base adopts a box-type welded steel structure with vibration aging treatment, reducing welding deformation and improving long-term stability.
The saw frame adopts a welded steel plate structure with reinforced ribs and stress-relief treatment, ensuring excellent rigidity and stable operation during cutting.
3. Automatic CNC Cutting System
The GZ4240 is equipped with a PLC control system, touchscreen interface, grating ruler, and sensors to control:
- Saw blade rotation
- Saw frame lifting
- Workpiece clamping
- Feeding and return movement
The system enables automatic cutting cycles according to preset parameters, improving production efficiency and reducing operator workload.
The machine supports both automatic and manual cutting modes, allowing flexible operation according to different production requirements.
4. Hydraulic Feeding and Precision Positioning
The GZ4240 adopts hydraulic rear feeding with grating ruler positioning, ensuring stable and accurate material positioning during continuous cutting.
The feeding system supports:
- Single feeding length up to 600mm
- Multiple feeding operations for longer materials
This design improves cutting efficiency and ensures consistent processing results.

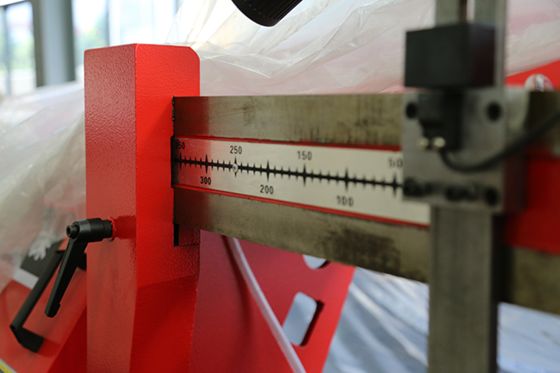

5. Stable Hydraulic Clamping System
The machine uses hydraulic clamping to firmly secure the workpiece during cutting.

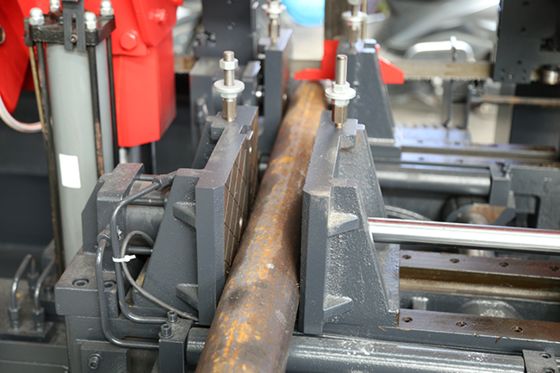

The front and rear clamping system works together to maintain material stability during operation.
During cutting, at least one clamping mechanism keeps the workpiece fixed, reducing movement and improving cutting accuracy.
6. Precision Blade Guidance System
The blade guide system uses adjustable guide arms, guide rollers, and wear-resistant guide blocks to improve blade stability.
The guide structure helps maintain blade verticality, reduce vibration, and improve cutting precision.
The machine also uses high-precision blade wheels and reinforced tungsten steel clamping pieces to ensure cutting accuracy.
7. Efficient and Material-Saving Cutting
The GZ4240 uses bimetal band saw blades, which provide:
- Narrow cutting kerf
- Lower material waste
- Higher cutting efficiency
- Longer blade service life
The machine is suitable for continuous production and batch cutting applications.
8. Intelligent Operation and Easy Maintenance

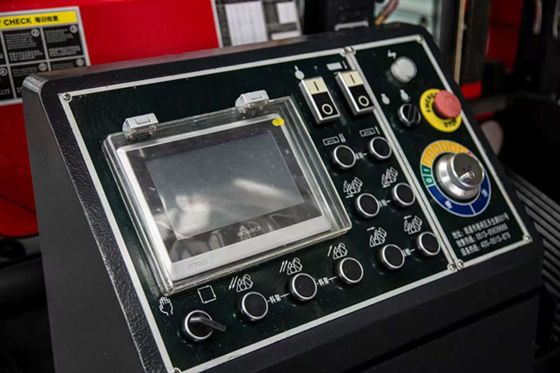

The PLC control system with touchscreen operation allows operators to easily set cutting parameters and monitor machine status.
The system supports setting multiple cutting programs and automatic counting functions, significantly reducing labor intensity.
Technical specifications
| Model |
Unit |
GZ4240 |
| Square bar& angle size |
mm |
400*400 |
| Bar stock |
mm |
Φ400 |
| Saw band speed |
m/min |
25,35,50,65 |
| Saw band size |
|
4700*41*1.3 |
| Main motor power |
kw |
4 |
| Hydraulic motor power |
kw |
0.75 |
| Cooling motor power |
kw |
0.06 |
| Hydraulic fluid capacity |
L |
80 |
| Cutting fluid capacity |
L |
50 |
| Saw band tension |
|
Manual |
| Clamping method |
|
Manual-Hydraulic combination |
| Feeding method |
|
Hydraulic feeding |
| Machine size |
mm |
2400*2300*1600 |
| Loading capacity |
tons |
5 |
| Speed adjustment |
|
4-speed adjustment |
| Maximum single feeding length |
mm |
600 |
Applications
The GZ4240 CNC Horizontal Band Saw Machine is widely used in industries requiring efficient and stable metal cutting, including:
Mechanical Manufacturing
Suitable for cutting steel bars, shafts, and structural components used in machinery production.
Automotive Parts Manufacturing
Ideal for batch cutting of metal components requiring consistent dimensions and stable quality.
Bearing Manufacturing
The automatic cutting system makes it suitable for continuous production of bearing-related components.
Steel Fabrication Industry
Suitable for cutting large-diameter metal materials, pipes, and profiles.
Standard Parts Production
The CNC automatic cutting function improves efficiency for repeated cutting operations.
The machine is widely applied in industries such as bearing manufacturing, standard parts production, and automotive parts manufacturing.
FAQ
Q1: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q3: How about the payment term?
A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q4. Can the GZ4240 perform bundle cutting?
A: Yes. The machine can be equipped with a bundle cutting device, allowing multiple workpieces to be cut together for improved production efficiency.
Q5. What is the expected cutting accuracy of the GZ4240?
A: The machine achieves a post-cut dimensional accuracy of approximately ±0.2mm, with cutting surface perpendicularity meeting national standards.
