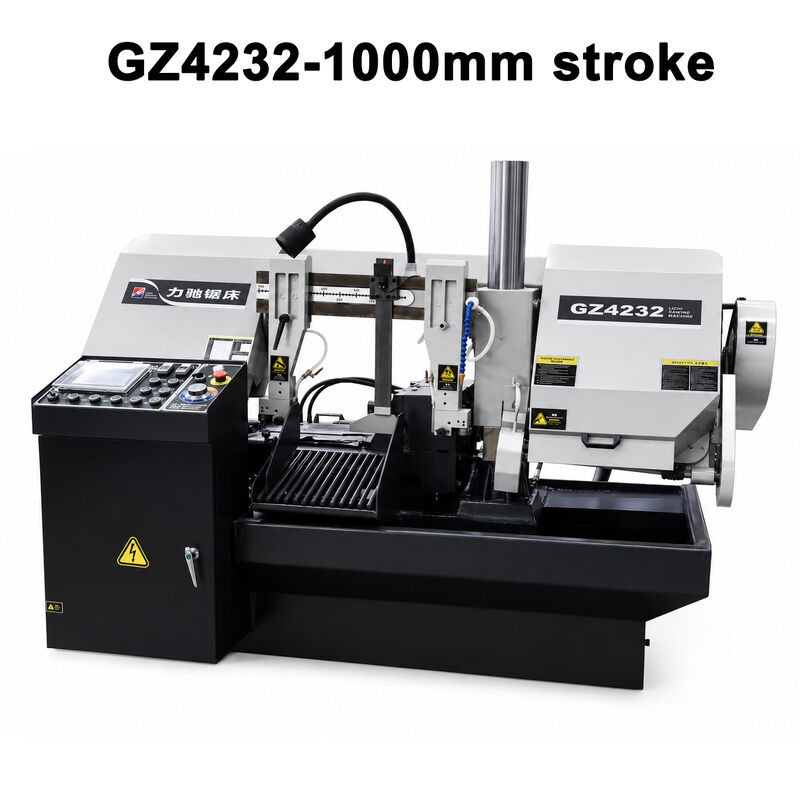

The GZ4232 CNC Horizontal Band Saw Machine is a high-performance automatic metal cutting solution designed for cutting medium-sized bars, pipes, plates, and various ferrous metal materials.
With the combination of mechanical structure, hydraulic system, PLC control technology, and intelligent operation, this CNC band saw machine delivers high cutting efficiency, stable performance, energy saving, and reduced material waste.
The machine is specially designed for industries requiring continuous and precise metal cutting. It features automatic clamping, automatic feeding, automatic cutting, and automatic blade return functions, significantly reducing manual operation and improving production efficiency.
Equipped with hydraulic feeding control, intelligent speed adjustment, hydraulic workpiece clamping, and PLC + touchscreen control, the GZ4232 provides reliable performance for both batch production and flexible cutting applications.
Key Features
1. Automatic CNC Cutting System
The GZ4232 CNC band saw machine integrates PLC control, touchscreen operation, and hydraulic systems to achieve automated cutting processes.
The system can control:
- Automatic feeding
- Automatic workpiece clamping
- Automatic cutting
- Automatic return after cutting
This reduces operator workload and improves production consistency.
2. High-Rigidity Machine Structure
The machine adopts a strong structural design with a cast iron machine bed and reinforced components.
The bed and saw frame are designed to minimize deformation and vibration during operation, ensuring long-term cutting stability and accuracy.
The saw frame adopts a welded steel plate structure with reinforced ribs and stress-relief treatment, improving overall rigidity and durability.
3. Hydraulic Feeding and Intelligent Cutting Control
The GZ4232 uses hydraulic feed control combined with intelligent speed adjustment technology.
The hydraulic system allows stepless adjustment of feeding speed, enabling optimized cutting conditions for different materials and improving blade life and cutting efficiency.
4. Stable Hydraulic Clamping System
The machine adopts hydraulic workpiece clamping to securely hold materials during cutting.
The front and rear clamping system helps prevent workpiece movement during operation, improving cutting stability and ensuring better dimensional accuracy.
5. Precision Blade Guidance System
The blade guide system uses adjustable guide arms with guide rollers and wear-resistant guide blocks to improve blade stability.
This design helps maintain blade verticality, reduce vibration, and improve cutting accuracy.
6. Efficient Material Saving Cutting

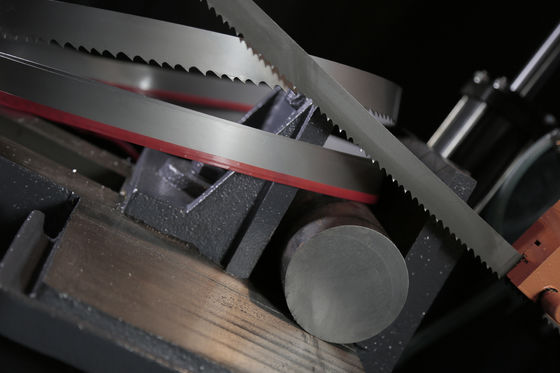

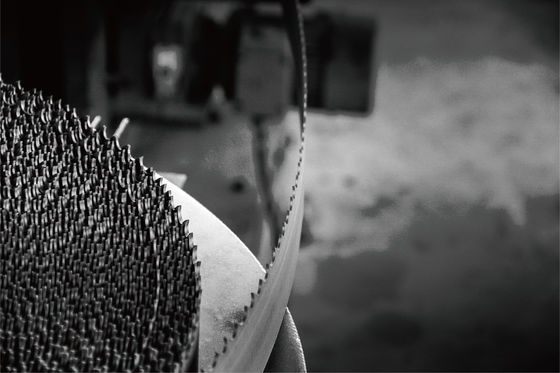

The CNC band saw machine uses narrow kerf band saw blades, which reduce material loss compared with traditional cutting methods.
The imported bimetal band saw blade design provides:
- Lower material waste
- Higher cutting efficiency
- Longer blade service life
7. User-Friendly CNC Operation
The GZ4232 is equipped with a PLC control system combined with touchscreen and button operation.
Operators can easily set cutting parameters, monitor machine status, and switch between automatic and manual cutting modes.
Technical specifications
| Model |
Unit |
GZ4232 |

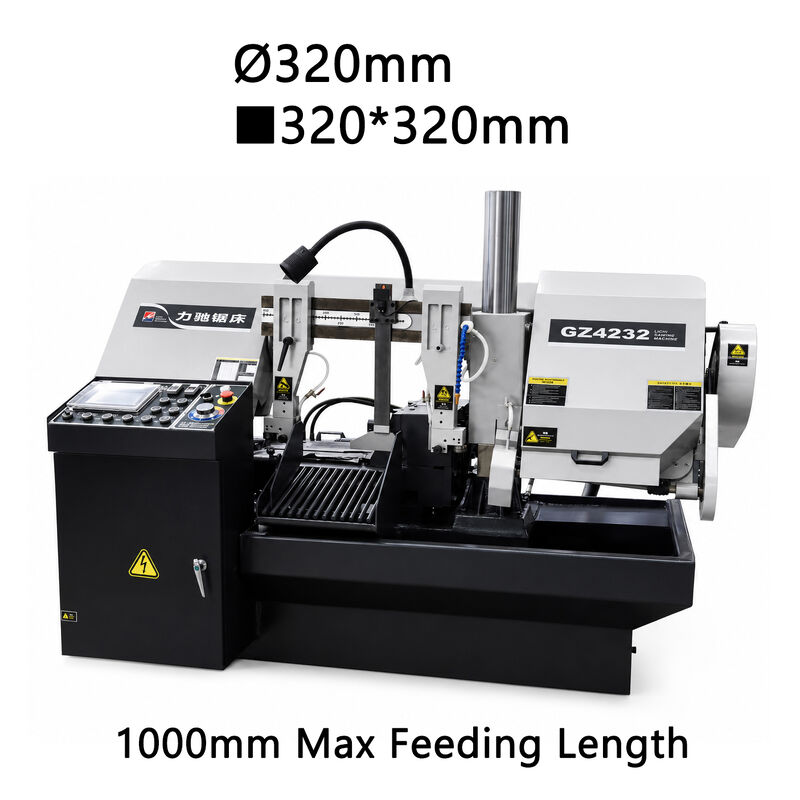

| Square bar&angle size |
mm |
320*320 |
| Bar stock |
mm |
Φ320 |
| Saw band speed |
m/min |
30,45,60,80 |
| Main motor power |
kw |
4 |
| Hydraulic motor power |
kw |
0.75 |
| Cooling motor power |
kw |
0.06 |
| Hydraulic fluid capacity |
L |
80 |
| Cutting fluid capacity |
L |
50 |
| Saw band tension |
|
Manual |
| Clamping method |
|
Manual-Hydraulic combination |
| Feeding method |
|
Hydraulic Feeding |
| Band saw blade size |
|
4115x34x1.1 |
| Machine dimensions |
mm |
2000*2100*1500 |
| Machine weight |
t |
Approx 1.5 |
Applications
The GZ4232 CNC Horizontal Band Saw Machine is widely used for precision metal cutting applications, including:

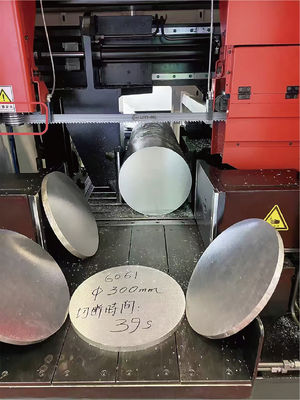

Steel Bar Cutting
Suitable for cutting round steel bars used in mechanical manufacturing and metal processing industries.
Pipe Cutting
Ideal for cutting various metal pipes with stable performance and high efficiency.
Plate Material Cutting
Capable of processing medium-sized metal plates for fabrication and industrial applications.
Automotive Parts Manufacturing
The machine is suitable for industries requiring repeated and consistent cutting of metal components.
Bearing and Standard Parts Production
The automatic CNC cutting function makes it suitable for batch production environments requiring stable cutting performance.
FAQ
Q1: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q2: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international certification.
Q3: Where is your factory located?
A: Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.
Q4: Does the machine support manual operation?
A: Yes. The GZ4232 supports both automatic and manual cutting modes, allowing flexible operation according to production requirements.
Q5: How does the machine reduce material waste?
A: Compared with traditional cutting methods, band saw cutting uses a narrower kerf blade, which reduces material loss and improves material utilization, especially in batch production.
