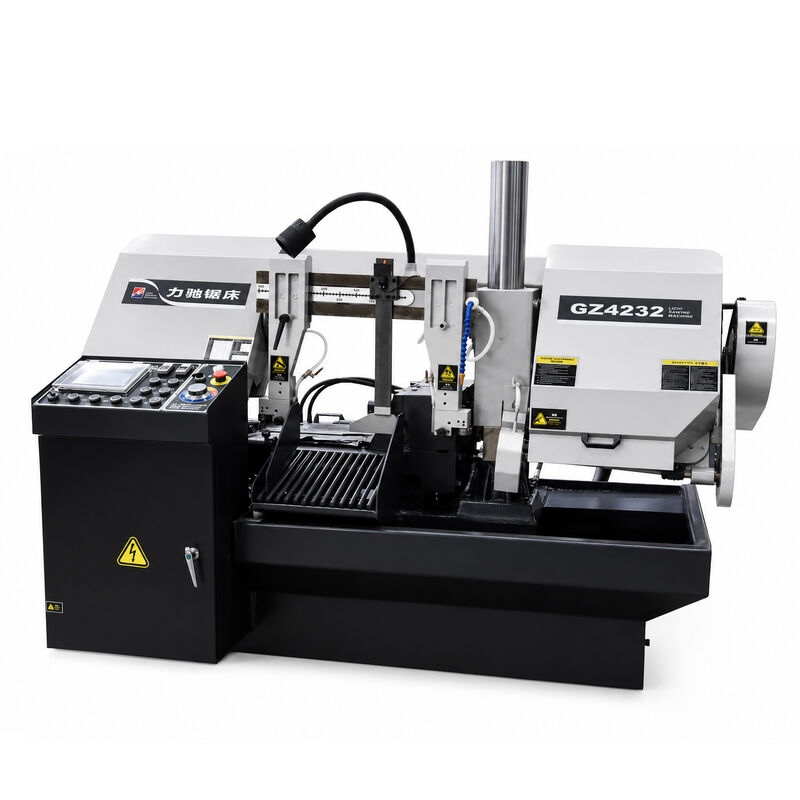

The GZ4232 CNC Horizontal Band Saw Machine is a compact and efficient automatic metal cutting solution designed for cutting small- and medium-sized bars, pipes, plates, and various ferrous metal materials.
With a maximum cutting capacity of Ø320 mm for round materials and 320 mm for plate materials, the GZ4232 combines hydraulic feeding, hydraulic clamping, PLC control, touchscreen operation, and automatic cutting functions to deliver stable and efficient cutting performance.
The machine supports both automatic and manual cutting modes. Operators can set the required cutting length and quantity through the touchscreen, after which the machine automatically completes the cutting cycle and stops when the preset quantity has been reached. This makes the GZ4232 particularly suitable for batch production and continuous cutting applications.
The machine adopts a rigid welded structure, precision cylindrical guiding, worm gear transmission, hydraulic feed-speed control, and a two-vise clamping system. These features help improve cutting stability, accuracy, and operating efficiency.
Key Features

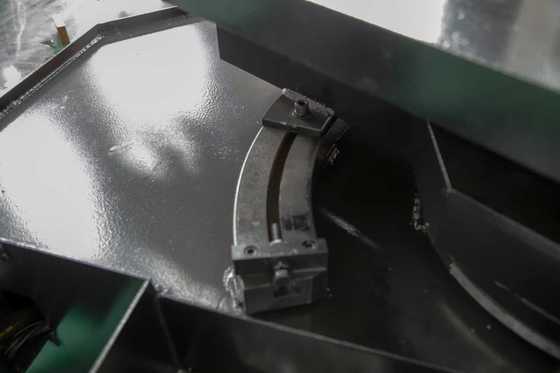

Hydraulic Feeding System
The rear feeding table uses a hydraulic feeding system with linear scale positioning. The single feeding stroke can be set from 2 to 400 mm, while longer lengths can be achieved through multiple feeding cycles.
Hydraulic Infinitely Variable Feed Control
The saw feed speed is controlled hydraulically with stepless adjustment. This allows operators to select an appropriate feed rate according to different workpiece materials and cutting requirements.
Four-Level Saw Band Speed
The saw band speed can be selected from 30, 45, 60, and 80 m/min, providing different cutting speeds for different material and production requirements.
Precision Guiding System

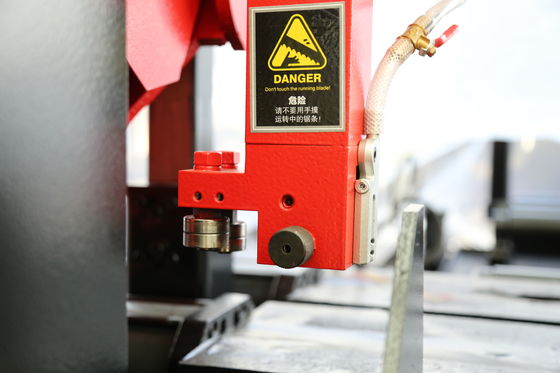

The machine uses precision cylindrical guiding components with good wear resistance. Adjustable guide arms and guide wheels help maintain proper blade positioning and reduce vibration during cutting.
Stable Worm Gear Transmission
The main transmission uses a worm gear drive, with the motor transferring power through belt transmission and the worm gear box to the drive wheel. The system provides stable blade movement during cutting.
Automatic Blade Cleaning
A passive wire-wheel chip removal system cleans residual chips from the saw band. Coolant is also used to wash chips away from the blade teeth, helping prevent chip accumulation and extend saw blade service life.
Automatic Saw Frame Return
After the cutting process is completed, the saw frame automatically returns quickly, reducing auxiliary operation time and improving overall production efficiency.
Automatic Blade Breakage Protection
The machine is equipped with an automatic shutdown function in case of saw band breakage. This helps protect the machine and improve operator safety.
Suitable for Batch Production
The CNC automatic system can be used for continuous cutting and batch production. Multiple pieces of material can also be arranged for bundled cutting within the machine's specified working range, helping improve production efficiency.
Technical specifications
| Model | Unit | GZ4232 |
|---|
| Machine size | mm | 2100*2000*1500 |
|---|
| Square bar&angle bar | mm | 320*320 |
|---|
| Saw band speed | m/min | 31,47,60,85 |
|---|
| Saw band size | | 4115*34*11 |
|---|
| Main motor power | kw | 4 |
|---|
| Cooling motor power | kw | 0.75 |
|---|
| Cooling motor power | kw | 0.06 |
|---|
| Hydraulic fluid capacity | L | 80 |
|---|
| Cutting fluid capacity | L | 50 |
|---|
| Saw band tension | | Manual |
|---|
| Clamping method | | Manual-Hydraulic combination |
|---|
| Feeding method | | Hydraulic feeding |
|---|
| Hydraulic system pressure | Mpa | 2-2.5 |
|---|
| Power supply | | AC 380V,50Hz |
|---|
| Feeding rack | mm | 600 x 2 |
|---|
| Single feeding length | mm | 2-400 |
|---|
| Machine weight | | Approx. 1.5 tons |
|---|
Applications
The GZ4232 is designed for efficient cutting of small- and medium-sized metal materials, particularly where repeatable cutting dimensions and batch production are required.
Round Bar Cutting

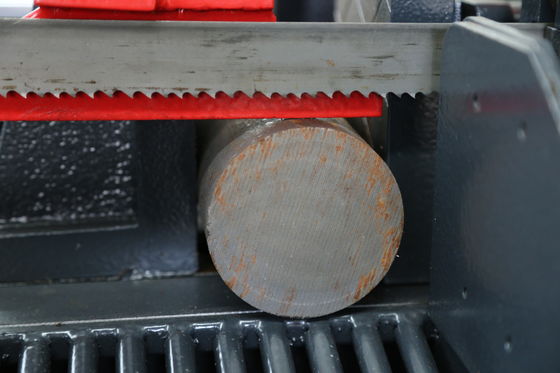

The machine can cut round bars up to Ø320 mm, making it suitable for preparing metal bars for subsequent machining and manufacturing processes.
Pipe and Tube Cutting
The GZ4232 can be used for cutting metal pipes and tubular materials within its specified cutting capacity.
Plate Cutting
The machine supports plate materials with a maximum specified cutting capacity of 320 mm.
Ferrous Metal Processing
The machine is designed to accommodate various ferrous metal materials and can be used for general metal cutting applications.
Batch Production
With CNC control, automatic feeding, automatic clamping, automatic cutting, and automatic counting, the GZ4232 is well suited to repetitive batch cutting and continuous production.
