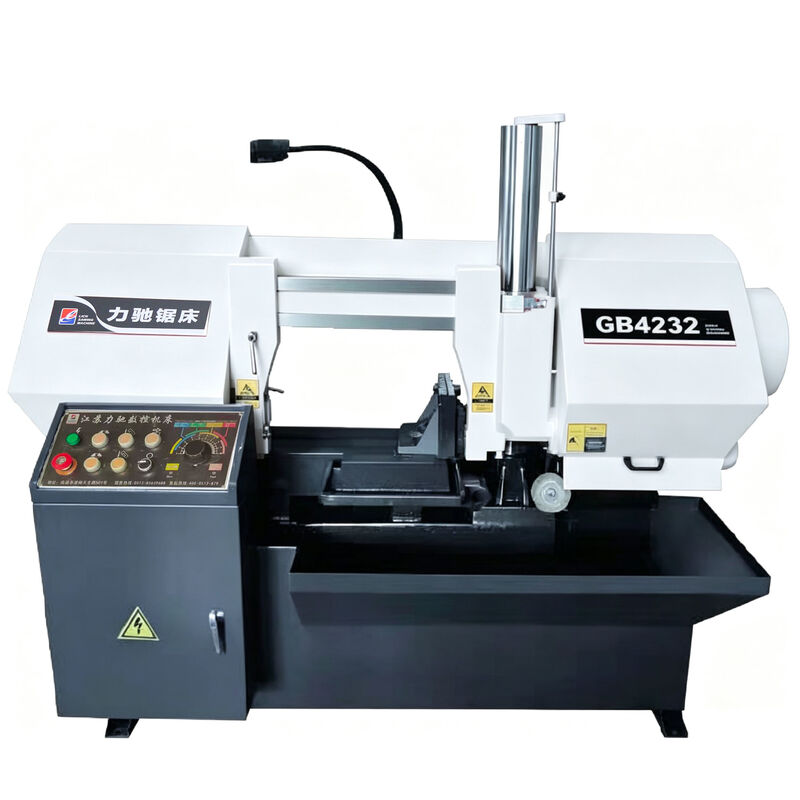

The GB4232 Double Column Horizontal Band Saw Machine is a heavy-duty metal cutting bandsaw designed for cutting various round pipes, square tubes, plates, and common metal materials. It is an ideal solution for medium and small batch production with high cutting accuracy, stable performance, and excellent efficiency.
This machine adopts advanced and mature sawing technology, combining hydraulic and electrical control systems to achieve reliable operation, simple mechanical operation, and high production efficiency. The GB4232 has been continuously improved by integrating advantages from similar products worldwide, making it suitable for industrial metal processing applications.

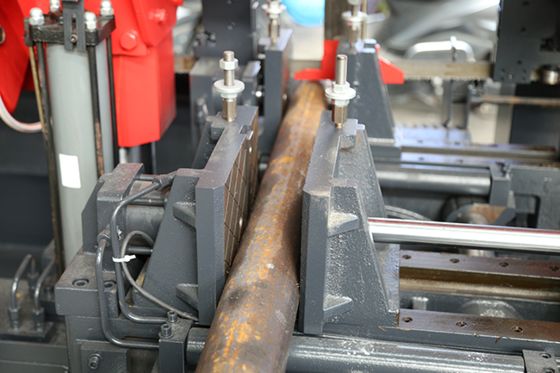

The hydraulic clamping system uses high-quality cylinders and precision guide rods to securely clamp workpieces. Materials can be loaded from the rear side of the machine into the cutting position, improving operation convenience and efficiency.
Key Features
1. Double Column Structure for High Stability
- Heavy-duty double column design provides excellent rigidity.
- The saw frame adopts welded steel plate construction with reinforced ribs.
- Vibration stress relief treatment reduces welding stress and improves cutting stability.
2. High Precision Metal Cutting

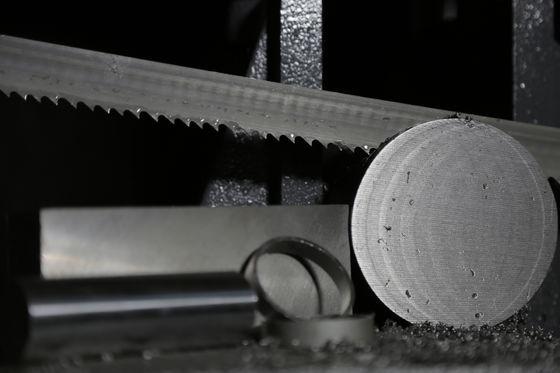

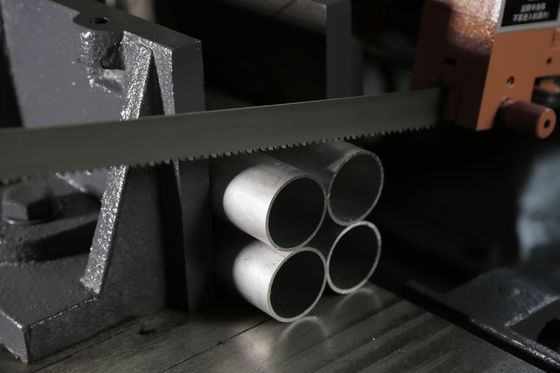

- Designed for accurate cutting of pipes, tubes, plates, and various metal materials.
- Stable saw blade guidance reduces vibration and improves cutting precision.
3. Hydraulic Clamping System
- Hydraulic clamping with high-quality cylinder and precision guide rod.
- Ensures firm workpiece positioning during cutting.
- Simple operation through control buttons.
4. Hydraulic Control System
- Hydraulic system controls:
- Saw frame lifting
- Workpiece clamping
- Feeding and returning operations
- Hydraulic components use reliable domestic brands.
5. Adjustable Blade Guide System
- Left and right guide arms can move along dovetail rails.
- Adjustable according to different workpiece sizes.
- Guide rollers and wear-resistant guide blocks improve blade stability.
6. Efficient Material Supporting System
- Equipped with roller-type material support rack.
- Makes workpiece positioning and feeding easier.
7. Reliable Transmission System
- Worm gear transmission system uses precision-machined components.
- High accuracy and long service life.
Technical specifications

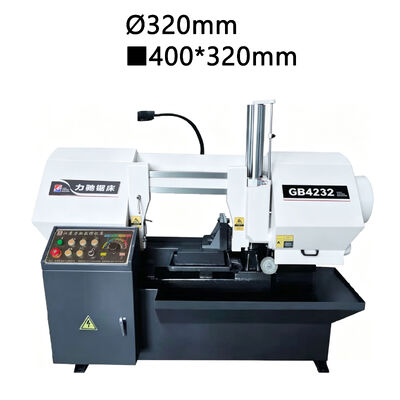

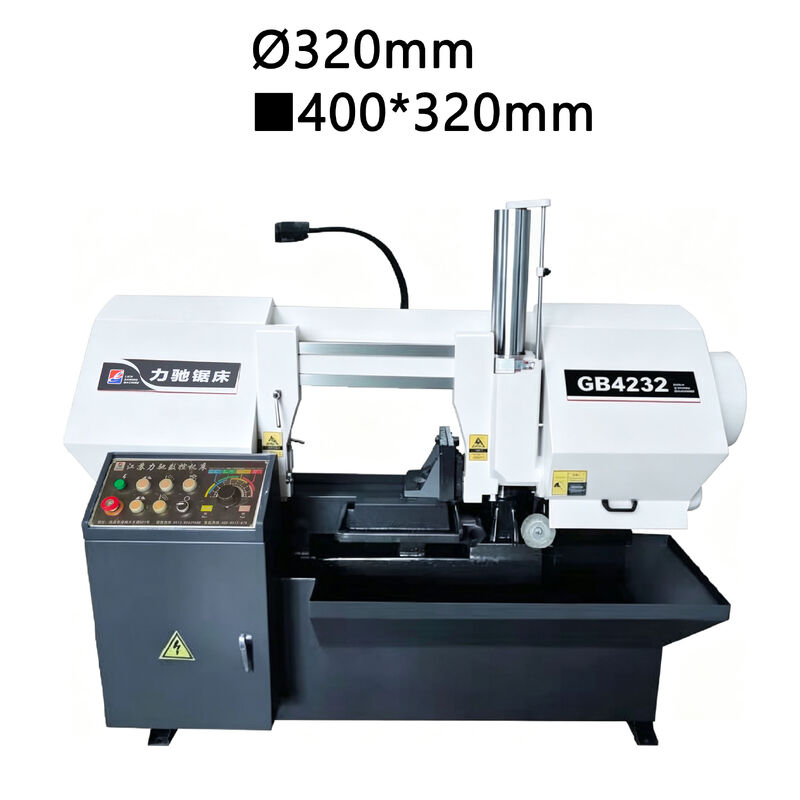

| Model | Unit | GB4232 |
|---|
| Machine size | mm | 1000*2000*1300 |
| Square bar & angle bar | mm | 400*320 |
| Bar stock | mm | Φ400 |
| Saw band speed | M/min | 22,43,64,72 |
| Saw band size |
| 4115*34*1.1 |
| Main motor power | kw | 3 |
| Hydraulic motor power | kw | 0.55 |
| Cooling motor power | kw | 0.04 |
| Hydraulic fluid capacity | L | 50 |
| Cutting fluid capacity | L | 30 |
| Saw band tension |
| Manual |
| Clamping method |
| Manual-Hydraulic combination |
| Feeding method |
| Manual |
Applications
The GB4232 Double Column Horizontal Band Saw Machine is widely used for:
Metal Fabrication Industry
- Steel structure manufacturing
- Metal frame production
- Fabricated metal components
Pipe and Profile Processing
- Round pipes
- Square tubes
- Rectangular profiles
- Various steel sections
Machinery Manufacturing
- Mechanical parts production
- Equipment manufacturing
- General industrial metal cutting
Small & Medium Batch Production
- Suitable for factories requiring stable cutting performance and efficient material preparation.
FAQ
Q1: Where is your factory located?
A: Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q2: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Q3: What is your factory acceptance test method?
A: You can send sample material for test cutting. We will provide detailed cutting data and a video of the operation.
Q4: What materials can the GB4232 band saw cut?
A: The GB4232 is designed for cutting round pipes, square tubes, plates, and various common metal materials.
Q5: What type of structure does this band saw use?
A: The machine adopts a double column horizontal structure, with a reinforced welded saw frame designed for high stability and precision cutting.
Q6: Does this machine have hydraulic clamping?
A: Yes. The machine uses a hydraulic clamping system with cylinder and precision guide rod to securely hold the workpiece during cutting.
Q7: What is the blade speed range?
A: The blade speed can be adjusted among: 30 / 45 / 60 / 80 m/min to meet different cutting requirements.
