170NC/P High-Speed CNC Circular Saw for Aerospace & Rail Transit

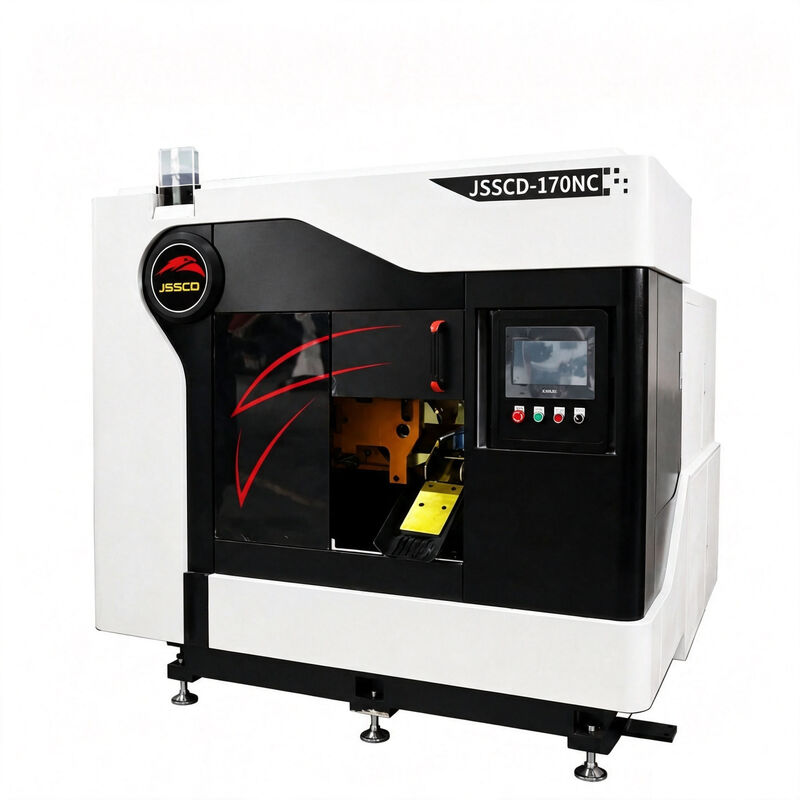

The JSSCD-170NC high-speed CNC circular saw machine is designed for accurate, efficient and fully automatic cutting of medium- and large-diameter metal bars. It supports round bars from Ø40 to Ø170 mm and square materials from 40 to 140 mm, making it suitable for batch blanking of carbon steel, alloy steel and other metal materials with hardness up to HRC42.

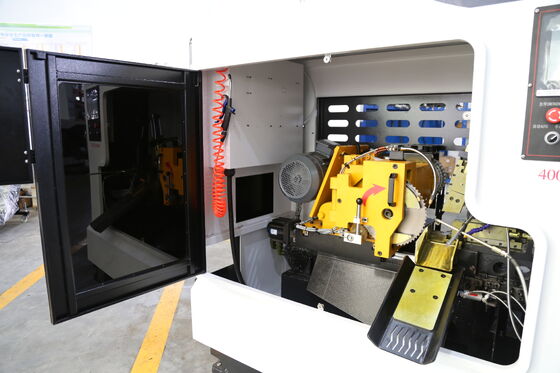

The machine adopts a stable horizontal push-type sawing structure, driven by an AC servo motor, precision screw and high-precision guide rails. This rigid feeding system provides smooth cutting, reliable blade control and consistent accuracy, with feeding accuracy of ±0.05 mm, cutting-length tolerance within ±0.1 mm and perpendicularity tolerance within ±0.1/100 mm.

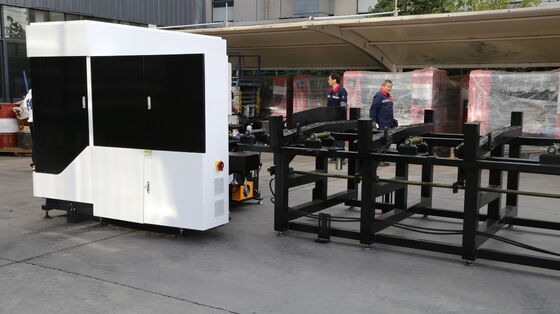

Automatic loading, servo feeding, hydraulic clamping, workpiece counting, head-and-tail separation, spray lubrication and chain-type chip removal are integrated into one production system. The heavy-duty HT250 cast-iron machine base, precision gearbox and blade stabilization system help reduce vibration, extend saw-blade life and support continuous industrial production.

The JSSCD-170NC is an ideal solution for manufacturers producing shafts, bearings, gears, forgings, automotive components and CNC-machined blanks. Send us your material grade, bar size, cutting length and required output to receive a suitable cutting solution and quotation.

1. The bed base is made of high-quality NO.250 cast iron. It features excellent overall rigidity, high strength, impact resistance, and not easy to deform.
2. Equipped with world-class brand SKF high-precision bearings The entire high-precision work piece sawing with no burrs, the perpendicularity within 0.25/100mm and the cut section is approximately Ra 3.2

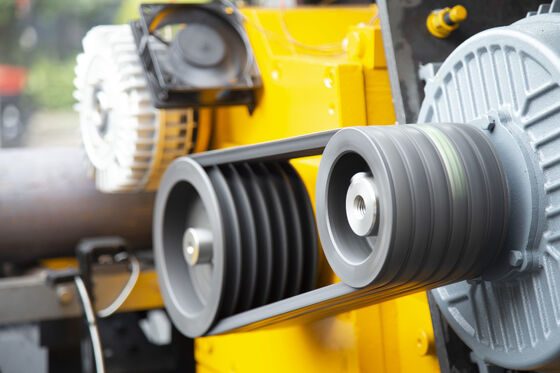

3. The roller screw drives the gearbox to perform horizontal feeding, enabling high-precision and rapid cutting of the clamped workpiece.
4. The clamping jaws’s surface hardness after carburizing treatment of over HRC58 The clamping force on the workpiece can be adjusted arbitrarily as needed, ensuring stability during the sawing process.
5. The meticulously designed nozzles spray the high-performance cutting oil onto both sides of the saw blade for lubrication purposes. This design not only improves production efficiency, reduces manufacturing costs, and prevents environmental pollution, but also improves cut quality and extends the service life of the saw blade.

Q1: Are you a manufacturer or a trading company?

A: We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.

Q2: What is your factory acceptance test method?

A: We perform test cuts with customer-provided samples and supply detailed cutting data along with operation videos.

Q3: What are your payment terms?

A: Standard terms are 30% deposit by T/T with 70% balance paid before shipment. Other methods available upon request.

Q4: Does the band saw blade have any international certifications?

A: Yes, our products have obtained CE and ISO international certifications.

Q5: What materials can this JSSCD-170NC saw machine cut?

A: It cuts carbon steel, stainless steel, alloy steel, aluminum, copper, titanium alloy and PA plastic, suitable for bar stock with hardness up to HRC42.

Q6: Does this machine have environmental protection and safety functions?

A: It equips spray lubrication cooling system. Optional oil mist collector achieves over 95% purification rate. Multiple auto-alarm & shutdown functions for low oil, hydraulic and air pressure.
