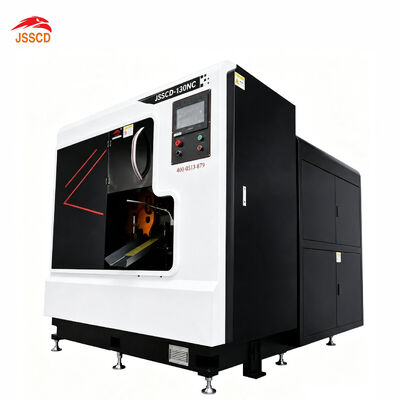

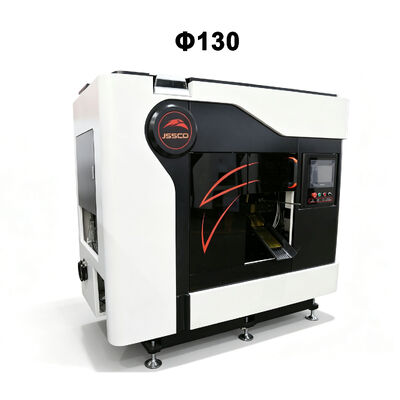

130NC Industrial CNC Metal Circular Sawing Equipment for Multi Industry Metal Bar Processing

Self developed fully automatic CNC metal cold saw with heavy duty HT250 cast iron rigid frame and dual servo drive. Max cutting capacity Ø135 mm round bar /105 mm square stock. High precision cutting at ±0.05 mm positioning accuracy, burr free clean cutting surface. Comes with integrated auto loading, hydraulic clamping, spray cooling, chip removal and automatic material sorting systems, world class branded core parts and multi safety protection alarms. Perfect for mass precision metal blanking across automotive, aerospace, rail transit, mold, electronics and other industries. 12 month full warranty together with complete after sales training and global technical support.

• Self-developed high-speed CNC metal circular saw, stable cutting operation to reduce blade vibration and extend saw blade service life
• Dual servo independent drive for saw cutting and feeding, high-precision ball screw transmission, feeding positioning accuracy up to ±0.05mm
• Large cutting range: round bar Ø40–135mm, square stock 40–105mm, length tolerance ≤±0.20mm, smooth burr-free cutting surface Ra3.2
• 15kW variable frequency main motor, adjustable spindle speed 30–120rpm, suitable for materials hardness ≤HRC42, tensile strength ≤1800N/mm²
• Full automatic integrated configuration: 6–7m long loading rack, auto chip cleaning brush, chain plate chip conveyor, automatic material separating device for finished parts & scrap sorting
• Independent micro-spray lubrication cooling system reduces cutting heat and improves cutting finish; optional two-stage electrostatic oil mist collector with over 95% purification rate
• Closed automatic lubrication system with low lubricant level alarm; centralized hydraulic station with auto shutdown & alarm for low hydraulic oil
• Complete PLC touch screen CNC control, reserved Ethernet communication interface for docking intelligent automated production lines
• Unmanned full-cycle automatic operation from feeding, clamping, cutting to chip removal & sorting, built-in counting function with auto-stop when reaching set quantity

1. Magnetic powder damping eliminates gear clearance for smoother cutting
2. Auto wire brush cleans saw tooth chips to protect saw blade
3. Auto sorting device separates finished products and scrap materials
4. Closed auto lubrication system with low oil level alarm reminder
5. Optional high-efficiency electrostatic oil mist purifier for eco-friendly workshop
6. Built-in cutting quantity counter with auto-stop function
7. Raw material position sensor ensures uniform cutting dimension
8. Patented micro-spray cooling nozzle improves cutting surface quality
9. Ethernet port reserved for intelligent production line docking
10. Multi safety alarm system for hydraulic, air and lubrication faults
11. 6-meter standard loading rack supports long raw bar storage

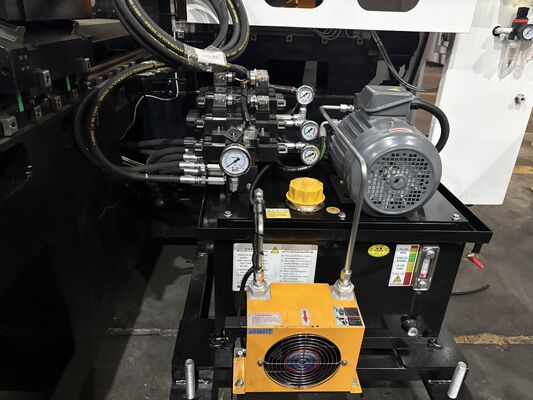

12. Standardized hydraulic layout for simple daily maintenance
