Circular Sawing Machines for Precision Auto Parts Manufacturing

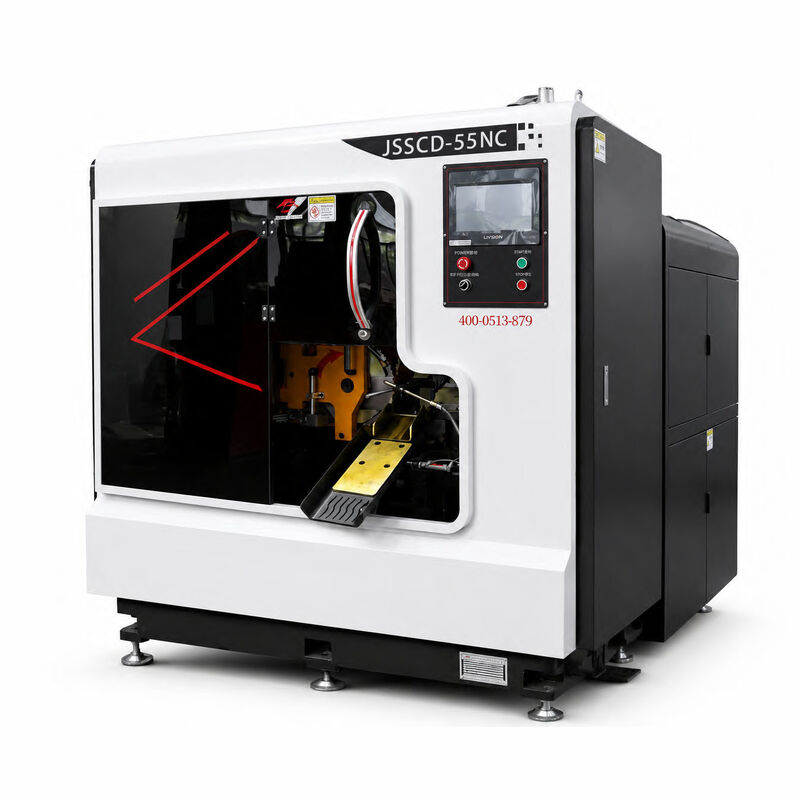

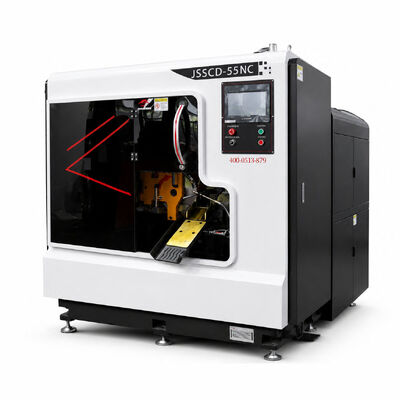

The JSSCD-55NC Automatic High-Speed Circular Saw Machine is an intelligent CNC sawing solution specifically engineered for high-volume precision cutting of round bars and square bars. Designed with an advanced flat-push servo feeding system, high-rigidity machine structure, and precision gearbox transmission, the machine delivers exceptional cutting accuracy, stable operation, and long saw blade life.
Equipped with automatic loading, servo ball screw feeding, hydraulic clamping, PLC touchscreen control, automatic lubrication, mist cooling, and chip conveyor systems, the JSSCD-55NC minimizes manual intervention while maximizing production efficiency.
Multi-scene application, multi-range cutting
Suitable for carbon steel, alloy steel, bearing steel, stainless steel, tool steel, and other metal materials up to HRC42, the machine is widely used in automotive manufacturing, forging plants, bearing production, fastener factories, hydraulic component processing, and metal service centers.
Whether your goal is to increase production capacity, improve cutting consistency, or reduce labor costs, the JSSCD-55NC offers a reliable and cost-effective intelligent sawing solution for modern manufacturing.
Technical Specifications
| Model |
Unit |
JSSCD-55NC/P |
| Mainframe dimensions |
mm |
1950*1700*1700 |
| Bar & round pipe |
mm |
10-55 |
| Angle bar & square bar |
mm |
10-40 |
| Saw blade size |
mm |
φ285*2.0*φ32 |
| Single feeding length (repeatable) |
mm |
4-780 |
| Spindel motor power |
KW |
5.5(4P) |
| Cut off feed method |
AC servo motor & ball screw |
| Feeding drive method power |
AC servo motor & ball |
| Feding clamp method |
Hydraulic type (Hydraulic clamping) |
Frequently Asked Questions
What is your method of transaction?
We typically use FOB (Free On Board) transactions, with 30% deposit and 70% balance before shipment.
Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
What materials can the JSSCD-55NC cut?
The JSSCD-55NC is suitable for carbon steel, alloy steel, stainless steel, bearing steel, tool steel, and other metal bars with hardness up to HRC42.
Is the machine fully automatic?
Yes. It features automatic loading, servo feeding, hydraulic clamping, automatic cutting, counting, and chip removal to reduce labor and improve productivity.
Can the machine be customized?
Yes. We offer customized solutions based on your material size, production capacity, automation level, and factory requirements.
