CNC Automatic Horizontal Band Saw For Heavy-Duty Metal Cutting

CNC Automatic Horizontal Band Saw For Heavy-Duty Metal Cutting
CNC Automatic Horizontal Band Saw For Heavy-Duty Metal Cutting CNC Automatic Horizontal Band Saw For Heavy-Duty Metal Cutting CNC Automatic Horizontal Band Saw For Heavy-Duty Metal Cutting CNC Automatic Horizontal Band Saw For Heavy-Duty Metal Cutting CNC Automatic Horizontal Band Saw For Heavy-Duty Metal Cutting

Large Image :  CNC Automatic Horizontal Band Saw For Heavy-Duty Metal Cutting

Product Details:
Place of Origin: China
Brand Name: JSSCD
Certification: HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Model Number: JSSCD-5040
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: depending on the machine model
Delivery Time: 7-60 work days
Payment Terms: FOB
Supply Ability: 500 Sets Per Year
Contact Now Chat Now

CNC Automatic Horizontal Band Saw For Heavy-Duty Metal Cutting

Description
Model: JSSCD-5040NC Blade Size: 6830 X 41 X 1.3 Mm
Blade Speed Range: 15–150 M/min (Variable Frequency Control) Max. Cutting Capacity (Round): φ400 Mm
Max. Cutting Capacity (Square): 500 Mm X 400 Mm Feeding Method: Servo Motor + Ball Screw
Blade Tension Control: Hydraulic Automatic Compensation Blade Guiding: Carbide Inserts + Ball Bearings
Highlight:

CNC automatic horizontal band saw

,

heavy-duty metal cutting band saw

,

CNC circular saw machine with warranty

CNC Automatic Horizontal Band Saw For Heavy-Duty Metal Cutting

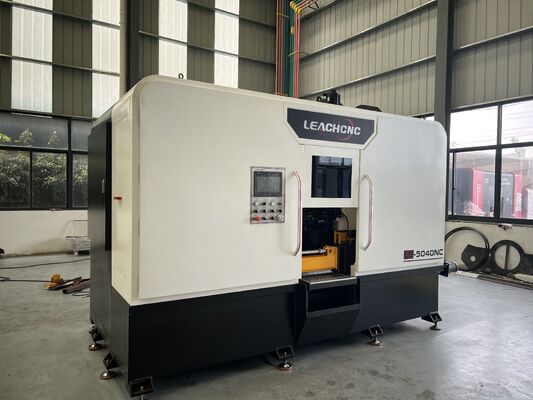

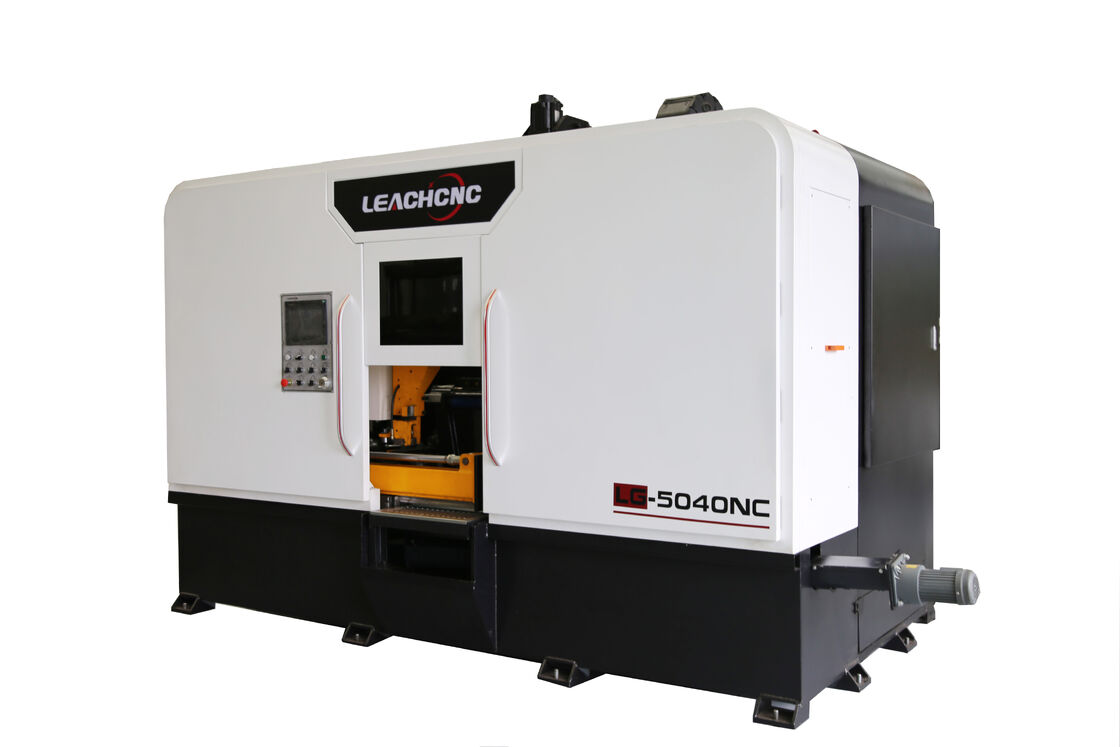

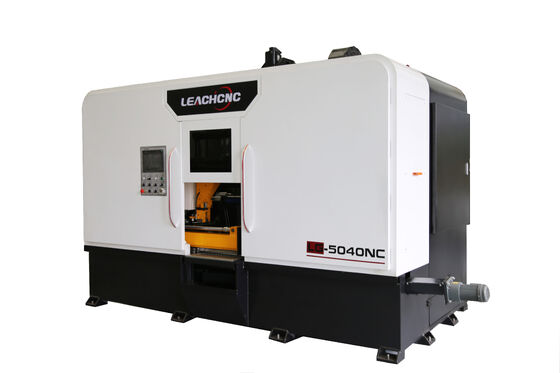

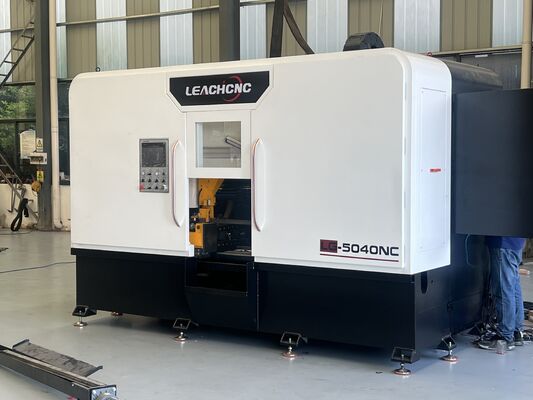

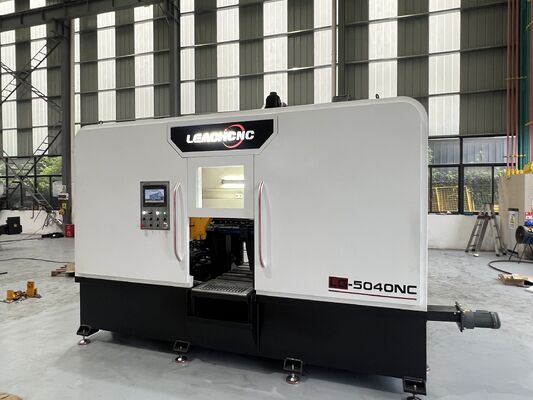

The LC-5040NC CNC Automatic Horizontal Band Saw is a high-performance cutting solution designed for industrial applications involving carbon steel, mold steel, and stainless steel. Equipped with a 7.5 kW German-made geared motor and a 41 mm wide blade, this saw delivers precision, stability, and efficiency for demanding cutting tasks. Its robust structure and servo-controlled feeding system ensure consistent performance and extended blade life. Ideal for manufacturers and metalworking workshops seeking automation, accuracy, and reliability.
Key Features
  • German high-performance helical gear motor (7.5 kW) for heavy-duty cutting
  • 41 mm blade compatible with bimetal or carbide-tipped bandsaw blades
  • PLC control system with saw deviation and clamp pressure sensing
  • Servo motor + ball screw feeding system for high precision
  • Hydraulic blade tensioning with automatic release when idle
  • Dynamic nylon brush system for effective chip removal
  • Optional bundle cutting function for increased productivity
Technical Specifications
Technical Parameter Specification
Max. Cutting Capacity Round: φ400 mm / Square: 500 x 400 mm
Blade Speed 15-150 m/min (variable)
Blade Size 6830 x 41 x 1.3 mm
Main Motor 7.5 kW (10 HP)
Hydraulic Motor 2.2 kW (3 HP)
Coolant Motor 180 W
Hydraulic Tank Capacity 90 L
Coolant Tank Capacity 130 L
Feeding Accuracy ±0.1 mm / 450 mm
Vertical Accuracy ±0.1 mm / 100 mm
Machine Weight 5600 kg
Dimensions (W x L x H) 3500 x 2000 x 2650 mm
CNC Automatic Horizontal Band Saw For Heavy-Duty Metal Cutting 0 CNC Automatic Horizontal Band Saw For Heavy-Duty Metal Cutting 1
Applications
  • Cutting of solid bars and profiles in steel service centers
  • Mold and die manufacturing
  • Structural steel fabrication
  • Automotive and heavy machinery parts production
  • Batch cutting of similar or mixed materials
  • Precision cutting for stainless steel and alloy materials
Frequently Asked Questions
What materials can the LC-5040NC cut?
It is ideal for cutting carbon steel, mold steel, stainless steel, and other medium-to-hard metals.
Can the machine perform automatic feeding?
Yes, it features a servo motor + ball screw feeding system with up to 99 programmable cutting lengths.
Is the blade tension adjustable?
Yes, hydraulic blade tensioning is included and automatically releases when the machine is idle to extend blade life.
What is the minimum residual length?
The minimum residual material length is ≥50 mm, ensuring efficient material usage.
