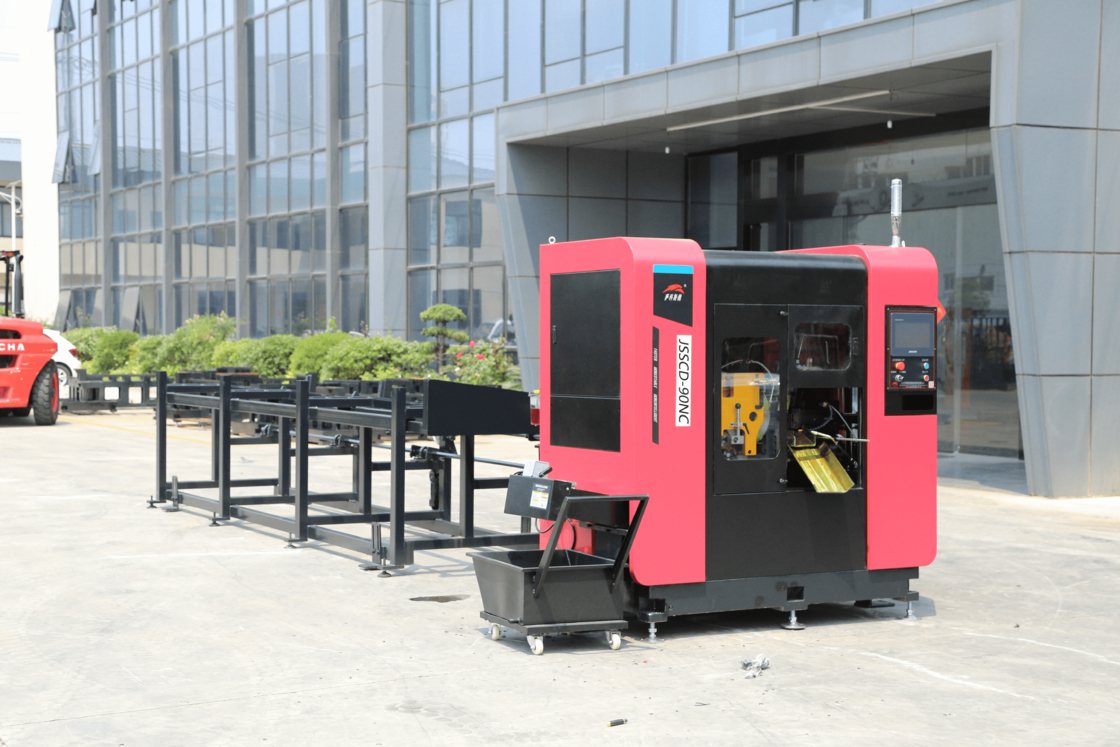

JSSCD-90NC/X CNC High Speed Circular Saw for Metal Cutting(Angled-Push)
The JSSCD-160NC/X CNC high-speed circular saw is a cutting-edge solution designed for precision metal profile cutting, with exceptional capabilities in angled cuts. Its innovative 15° top-to-bottom cutting technique sets it apart, delivering high efficiency, automation, and environmental sustainability.
Versatile and Efficient Performance
Engineered to handle diverse profiles such as round tubes, angle steels, and square tubes, this machine eliminates the hassle of frequent fixture adjustments. The unique 15° cutting method disperses stress evenly during the cutting process, minimizing workpiece deformation and producing cleaner, more precise edges.
Advanced Technology for Unmatched Precision
Equipped with a robust transmission and clamping system, the machine utilizes high-strength materials and precision engineering to secure workpieces firmly. An intelligent control module meticulously adjusts cutting speed, angle, and other parameters to achieve flawless results every time.
Specifications
| Model |
Unit |
JSSCD-90NC/P |
| Mainframe dimensions |
mm |
2250*1790*1760 |
| Bar & round pipe |
mm |
15-90 |
| Angle bar & square bar |
mm |
15-70 |
| Saw blade size |
mm |
φ315*2.25*φ32 |
| Pin holes and hole diameters |
mm |
4*φ11*63φ32 |
| Spindle motor power |
KW |
11/(4P) |
| Spindle speed |
rpm |
20-168 |
| Feed servo motor power |
KW |
1.5 |
| Feeding servo motor power |
KW |
1.5 |
| Material removal length at the front end |
mm |
10-99 |
| Single feeding length(repeatable) |
mm |
6-860 |
| Hydraulic drive motor power |
KW |
1.5(4p) |
| Rated pressure of the hydraulic system |
mpa |
5.5 |
| Hydraulic oil capacity |
L |
70 |
User-Friendly Automation
The machine's high-precision CNC control system features an intuitive human-machine interface, allowing operators to easily program and save multiple cutting configurations. This automation reduces manual intervention and streamlines production workflows.
Boosting Productivity and Sustainability
By integrating intelligent control and high-speed cutting technology, the JSSCD-160NC/X maximizes material utilization, reduces waste, and shortens production cycles. Its ability to handle both large-scale and high-precision tasks makes it an ideal choice for metal processing enterprises.
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.
Q3: What is your factory acceptance test method?
You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q4: What is your method of transaction?
We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.
Q6: How about the payment term?
T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q7: Does the band saw blade have any international certifications?
Yes, we have obtained CE, ISO international certification.
