Intelligent 22KW High Speed Circular Saw Machine Precision Industrial Circular Saw Machine

Intelligent 22KW High Speed Circular Saw Machine Precision Industrial Circular Saw Machine
Intelligent 22KW High Speed Circular Saw Machine Precision Industrial Circular Saw Machine Intelligent 22KW High Speed Circular Saw Machine Precision Industrial Circular Saw Machine Intelligent 22KW High Speed Circular Saw Machine Precision Industrial Circular Saw Machine Intelligent 22KW High Speed Circular Saw Machine Precision Industrial Circular Saw Machine Intelligent 22KW High Speed Circular Saw Machine Precision Industrial Circular Saw Machine

Large Image :  Intelligent 22KW High Speed Circular Saw Machine Precision Industrial Circular Saw Machine

Product Details:
Place of Origin: China
Brand Name: JSSCD
Certification: HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Model Number: JSSCD-180NC/P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: depending on the machine model
Delivery Time: 7-60 work days
Payment Terms: FOB
Supply Ability: 500 Sets Per Year
Contact Now Chat Now

Intelligent 22KW High Speed Circular Saw Machine Precision Industrial Circular Saw Machine

Description
Name: JSSCD- 180NC/P CNC High Speed Circular Saw Machine Color: Red，Black
Condition: New Dimension: 2240x1790x1800
Use: Material Cutting Cuttable Material: Carbon Steel，Stainless Steel，Alloy Steel，Aluminum，Aluminum Alloy，Copper，Copper Alloy，Titanium Alloy，PA
Application: Automobile Manufacturing，Aerospace，Rail Transit，Mechanical Equipment，Hardware Tools，Ship Building，Building Material，Pipeline Engineering，Mold Manufacturing，Electronics Manufacturing Mechanical Control: Intelligent Control，Automation
Saw Type: Straight Cut Cutting Precision: ±0.05mm
Feeding Precision: ±0.1mm FAT: Sample Trial Cutting Verification
Safety Protection Devices: Emergency Braking，Anti-splash Shield Hydraulic Oil: Reusable
Cutting Debris Removal Device: Chain Plate Chip Conveyer
Highlight:

Intelligent High Speed Circular Saw Machine

,

22KW High Speed Circular Saw Machine

,

22KW industrial circular saw machine

JSSCD-180NC/P CNC High Speed Professional Circular Saw(Horizontal-Push)
The JSSCD-180NC/P CNC High Speed Circular Saw Machine (Horizontal-Push) is engineered for high-efficiency, high-precision cutting of metal profiles, particularly for horizontal cutting operations. This advanced equipment combines high-speed cutting capability, automated control, precision machining efficiency, and environmental features to deliver outstanding performance and reliability in modern metal processing production lines.
Key Features
  • Horizontal plunge cutting technology - Powered by AC Servo Motor and ball screw for smooth, controllable cutting process
  • Optimized workpiece clamping - Hydraulic horizontal/vertical clamps reduce fixture changes and enhance material compatibility

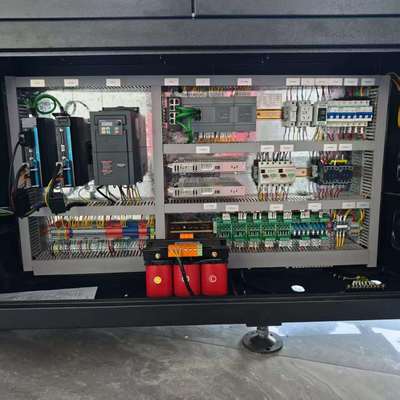

  • Intelligent CNC module - Precisely regulates cutting speed, angle, and process parameters for consistent results
  • High-performance automatic feeding system (optional) - Enables continuous automatic material feeding for batch processing

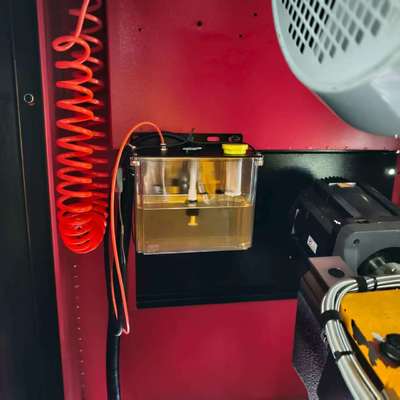

  • Precision assurance systems - Includes gear backlash compensation, self-lubrication, and micro-lubrication systems
  • Efficient chip removal - Hollow external rotation magnetic powder brake keeps work area clean
  • Part separation device - Equipped with carbide parallel blocks for orderly workpiece separation
Technical Specifications
Model Unit JSSCD-180NC/P
Mainframe dimensions mm 2240*1790*1800
Bar & round pipe mm 50-180
Angle bar & square bar mm 50-155
Saw blade size mm φ520*3.0*φ50
Pin holes and hole diameters mm 4*φ16*80 φ50
Spindle motor power KW 22(6P)
Spindle speed rpm 20-100
Feed servo motor power KW 2.8
Feeding servo motor power KW 2.8
Material removal length at the front end mm 10-99
Single feeding length(repeatable) mm 10-800
Hydraulic drive motor power KW 3.75
Rated pressure of the hydraulic system mpa 5.5
Hydraulic oil capacity L 110
Cut off feed mode AC servo motor & ball screw / horizontal entry
Main clamping method Hydraulic type / one set each for horizontal and 15°
Residual material length at the rear end mm 90&a(a represents the length less than one cut-off workpiece)

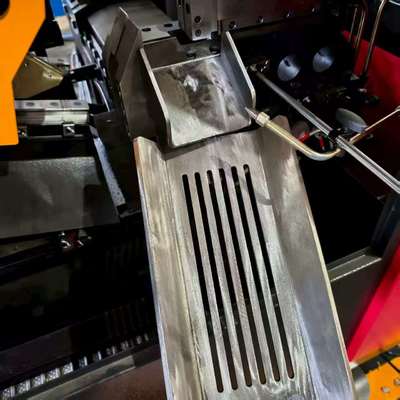

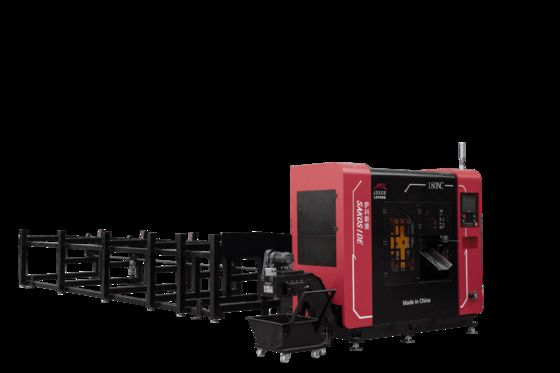

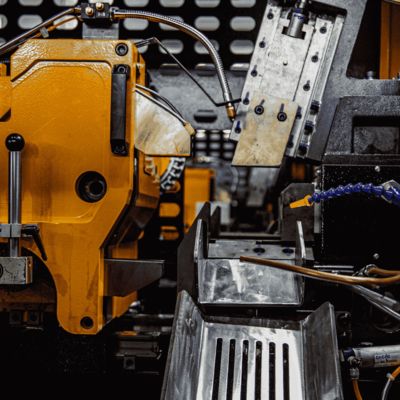

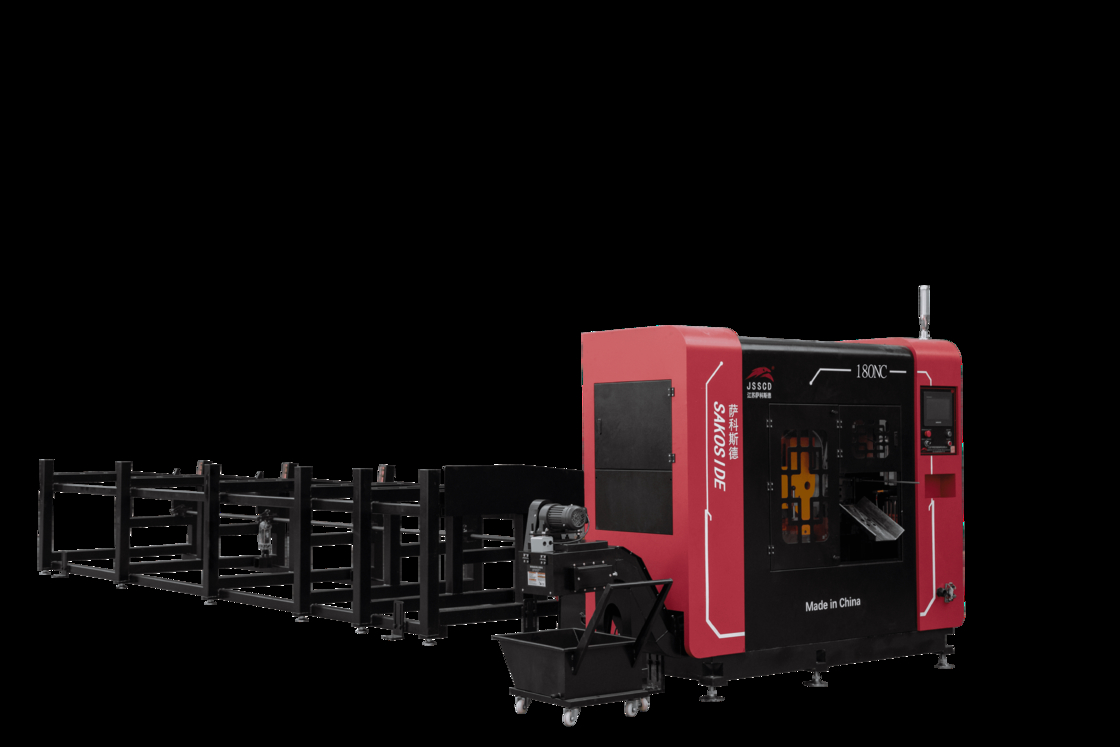

Product Images
Intelligent 22KW High Speed Circular Saw Machine Precision Industrial Circular Saw Machine 0 Intelligent 22KW High Speed Circular Saw Machine Precision Industrial Circular Saw Machine 1 Intelligent 22KW High Speed Circular Saw Machine Precision Industrial Circular Saw Machine 2 Intelligent 22KW High Speed Circular Saw Machine Precision Industrial Circular Saw Machine 3
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2: Where is your factory located?
A: Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.
Q3: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q4: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.
Q6: How about the payment term?
A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q7: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international certification.
