Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw

Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw
Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw
Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw

Large Image :  Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw

Product Details:
Place of Origin: China
Brand Name: JSSCD
Certification: HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Model Number: JSSCD-170NC/P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: depending on the machine model
Delivery Time: 7-60 work days
Payment Terms: FOB
Supply Ability: 500 Sets Per Year
Contact Now Chat Now

Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw

Description
Name: JSSCD-170NC/P CNC High Speed Circular Saw Machine(Horizontal-Push) Color: Red，Black
Condition: New Dimension: 2240x2320x2040
Use: Material Cutting Cuttable Material: Carbon Steel，Stainless Steel，Alloy Steel，Aluminum，Aluminum Alloy，Copper，Copper Alloy，Titanium Alloy，PA
Application: Automobile Manufacturing，Aerospace，Rail Transit，Mechanical Equipment，Hardware Tools，Ship Building，Building Material，Pipeline Engineering，Mold Manufacturing，Electronics Manufacturing Mechanical Control: Intelligent Control，Automation
Saw Type: Straight Cut Cutting Precision: ±0.05mm
Feeding Precision: ±0.1mm FAT: Sample Trial Cutting Verification
Safety Protection Devices: Emergency Braking，Anti-splash Shield Hydraulic Oil: Reusable
Cutting Debris Removal Device: Chain Plate Chip Conveyer
Highlight:

Intelligent control drill bit circular saw

,

drill bit circular saw 20RPM

,

110RPM mini compact circular saw

JSSCD-170NC/P CNC High Speed Circular Saw Machine (Horizontal-Push)

Meeting the rigorous demands of modern metalworking requires high-efficiency, high-precision cutting solutions, especially for horizontal operations. This CNC high-speed circular sawing machine delivers precisely that, combining rapid cutting performance, automated precision, and eco-friendly operation.

Key Features
  • Advanced horizontal plunge-cutting technology with AC Servo Motor and ball screw drive
  • Optimized hydraulic workholding system with horizontal/vertical clamps
  • High-strength construction for workpiece stability at peak operating speeds
  • Sophisticated CNC module for precise control of cutting parameters
  • Intuitive Human-Machine Interface (HMI) for easy operation
  • Optional high-capacity automatic feeding system for maximum throughput
  • Gear backlash compensation mechanism for enduring precision
  • Integrated saw chip removal device for clean workspace
  • Part separation device with carbide parallel blocks
Technical Specifications
Model Unit JSSCD-170NC/P
Mainframe dimensions mm 2240*2320*2040
Bar & round pipe mm 40-170
Angle bar & square bar mm 40-140
Saw blade size mm φ485*2.7*φ50
Spindle motor power KW 18.5
Spindle speed rpm 20-110
Feed servo motor power KW 2.3
Hydraulic drive motor power KW 3.75
Rated pressure of the hydraulic system mpa 5.5
Hydraulic oil capacity L 110
Additional Features
  • Cut off feed mode: AC servo motor & ball screw / horizontal entry
  • Main clamping method: Hydraulic type / one set each for horizontal and 15°
  • Saw blade debris removal device: Passive/active circular wire brush (optional)
  • Gear backlash compensation device: Hollow external rotating magnetic powder brake
  • Feeding drive mode: AC servo motor & ball screw
  • Self-lubrication oil system: Timed and quantitative forced oil supply

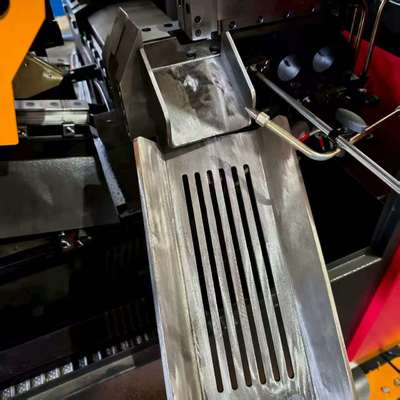

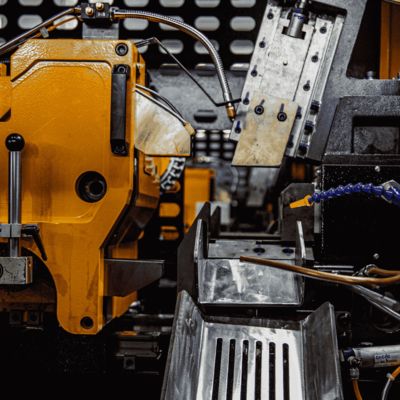

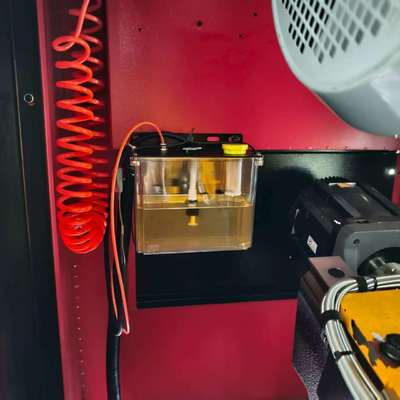

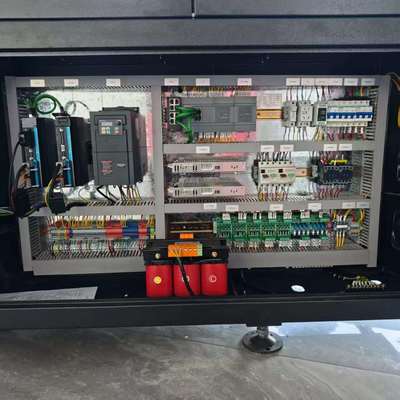

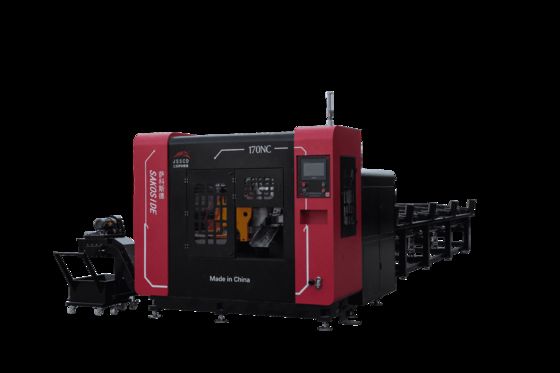

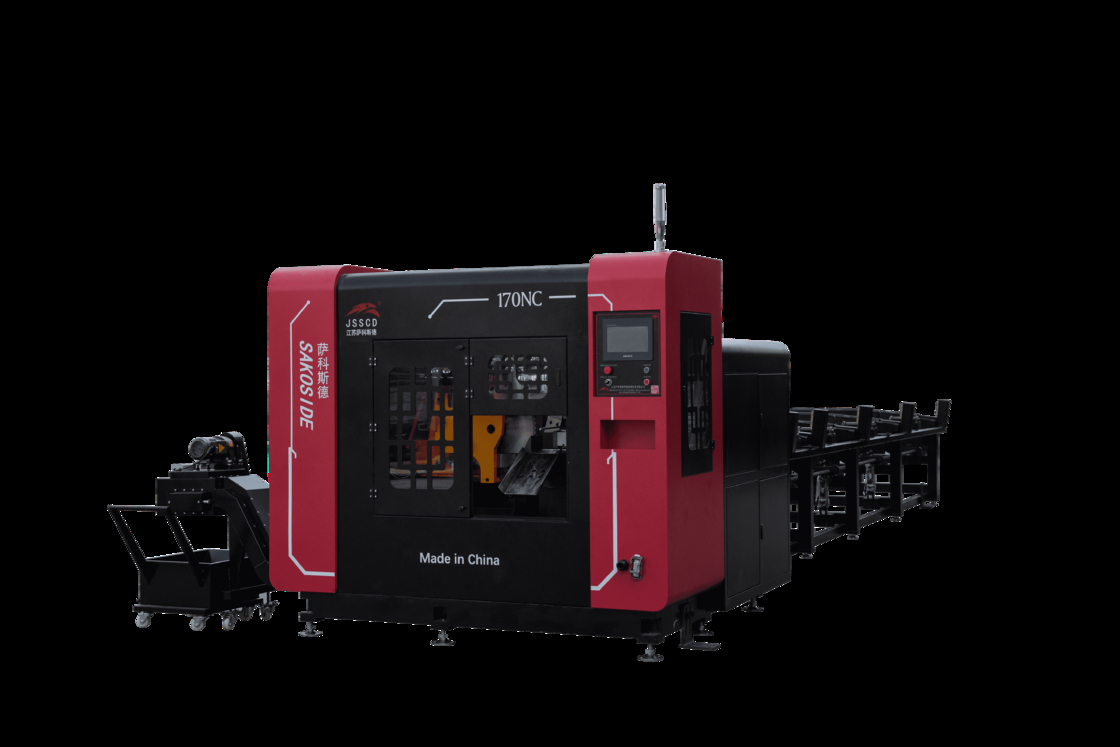

Product Images
Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw 0 Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw 1 Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw 2 Intelligent Control Drill Bit Circular Saw 20 - 110RPM Mini Compact Circular Saw 3
Summary

This high-speed horizontal circular saw confidently handles the pressures of large-scale continuous production while meeting stringent precision requirements. It stands as an exceptional solution for businesses focused on boosting efficiency, enhancing product quality, and lowering operational costs.

Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
You can send sample material for test cutting. We'll provide detailed cutting data and a video of the operation.
Q4: What is your method of transaction?
We use FOB (Free On Board) transaction terms.
Q5: How about your delivery time?
Typically 7-60 work days after order confirmation, depending on items and quantity.
Q6: How about the payment term?
T/T 30% deposit, 70% balance before shipment. Other methods available upon request.
Q7: Does the band saw blade have any international certifications?
Yes, we have obtained CE and ISO international certifications.
