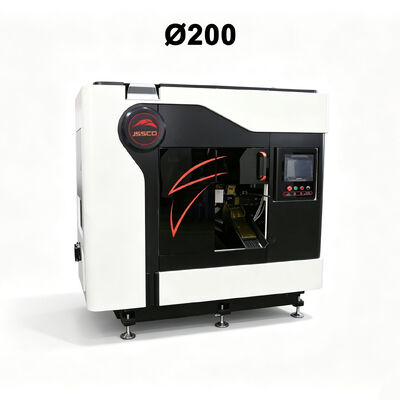

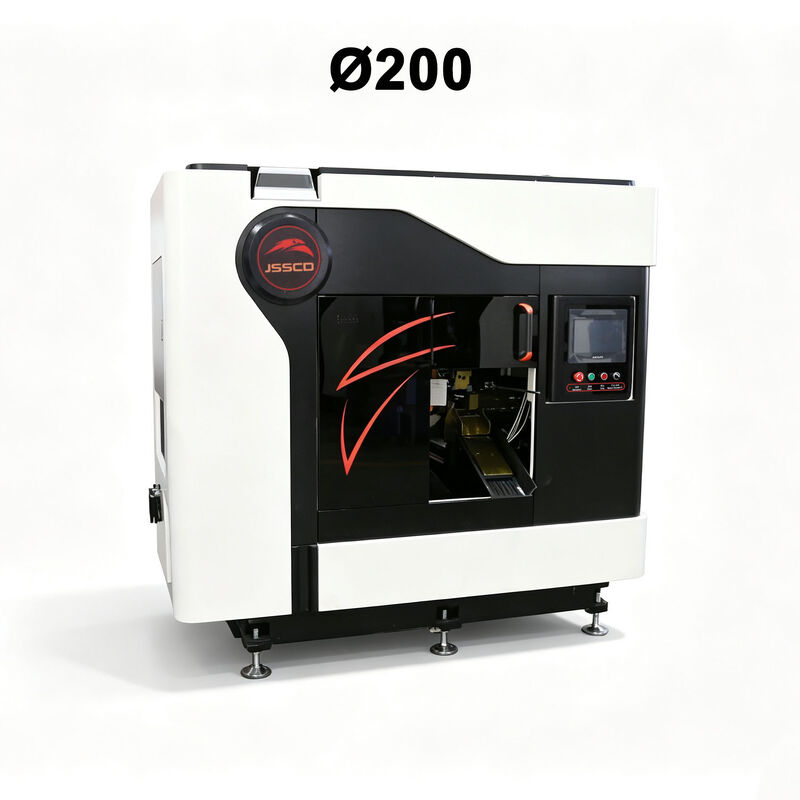

The JSSCD-200NC High-Speed Intelligent CNC Circular Saw Machine is a high-performance metal cutting solution designed for precision, efficiency, and continuous automated production.
With a cutting capacity of Ø70–Ø200 mm for round bars and 70–170 mm for square materials, the machine is suitable for medium- to large-diameter metal bar cutting applications. It features a 22 kW wide-frequency main motor, servo-driven cutting and feeding systems, automatic material loading, hydraulic clamping, automatic sorting, automatic chip removal, and CNC control.

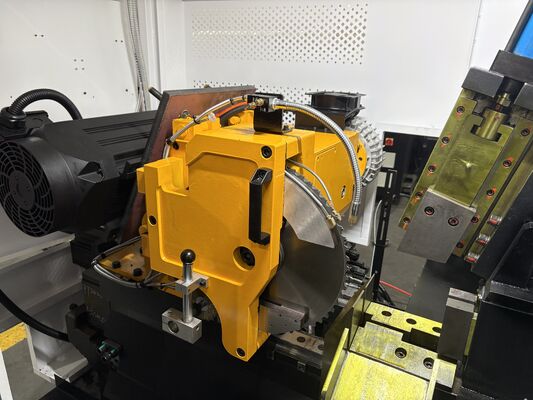

The JSSCD-200NC adopts a horizontal push-feed cutting structure. The saw head is driven by a servo motor and precision ball screw, providing stable cutting performance and precise control of cutting speed and feed rate. Its servo-driven feeding system provides a repeat positioning accuracy of up to ±0.01 mm, helping maintain consistent cutting quality during continuous production.
Designed for automated batch production, the machine can automatically perform feeding, clamping, cutting, head and tail material separation, and finished-product handling. This reduces manual intervention and makes the machine particularly suitable for high-volume metal processing and continuous production lines.
Key Features
1. High-Speed Horizontal Push-Feed Cutting
The JSSCD-200NC uses a stable horizontal push-feed structure for the saw blade. Compared with conventional cutting structures, this design provides stable blade movement and helps reduce vibration during cutting.
The cutting system is driven by a servo motor combined with a precision ball screw, allowing the feed rate and cutting parameters to be precisely controlled.
2. Ø200 mm Maximum Round Bar Cutting Capacity
The machine can cut:
- Round bars: Ø70–Ø200 mm
- Square materials: 70–170 mm
This makes the JSSCD-200NC suitable for a wide range of medium- and large-section metal cutting applications.
3. Servo-Driven Precision Feeding System
The feeding system uses a servo motor and precision ball screw to provide fast and accurate material positioning.
The system also incorporates overload protection. When abnormal resistance is detected, the machine can automatically stop and issue an alarm to help protect the equipment.
4. Automatic Material Feeding
The automatic feeding system is controlled by an AC servo motor and precision ball screw.
It provides:
- Accurate material positioning
- Stable bar feeding
- Automatic quantity counting
- Automatic stop after reaching the preset quantity
- Adjustable feeding stroke
- Continuous production capability
5. Fully Automatic Material Loading
The material rack stores bars of different lengths. A hydraulic material-separating mechanism transfers individual bars to the feeding clamp, after which the feeding system automatically transports the material to the cutting position.
6. High-Rigidity Cast Iron Machine Bed
The machine bed is made from HT250 high-quality cast iron and undergoes high-temperature tempering and aging treatment.
Compared with conventional welded steel structures, the cast iron machine bed provides a more stable foundation for precision cutting.

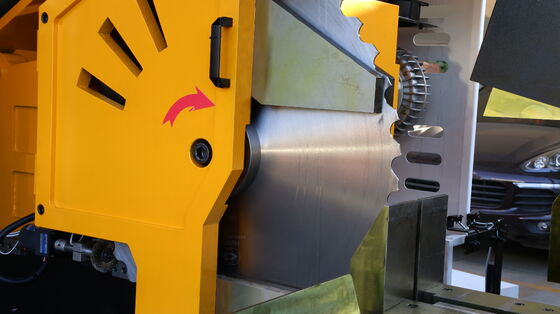

7. High-Precision Spindle System
The spindle is manufactured from high-rigidity alloy steel and undergoes precision grinding and dynamic balancing.
8. Hydraulic Multi-Point Clamping
The machine uses an integrated clamping structure with horizontal hydraulic clamping and an upper pressing device.
9. Automatic Head and Tail Material Separation
The automatic sorting system separates: Head material, Tail material, Finished parts
This eliminates the need for manual sorting and improves the overall automation level of the cutting process.
10. Micro-Spray Cooling and Lubrication
The machine uses an environmentally friendly micro-spray lubrication system combined with forced-air cooling.
The system sprays cutting oil directly toward the saw teeth and both sides of the saw blade.
11. Automatic Saw Blade Chip Cleaning
A wire-brush cleaning device automatically removes metal chips attached to the saw teeth during cutting.
This helps prevent residual chips from causing secondary cutting and unnecessary blade wear.
12. Automatic Lubrication System
The enclosed automatic lubrication system periodically lubricates bearings, guideways, and other moving components.
This reduces manual maintenance requirements and helps extend the service life of mechanical components.
13. CNC Control and Production Line Integration
The JSSCD-200NC uses a PLC-based CNC control system with a touchscreen interface.
The machine can automatically control the production process from material feeding through cutting and head/tail material handling.
Technical specifications
| Model |
Unit |
JSSCD-200NC |
| Saw blade size |
mm |
Ø630*2.8*3.4*80 |
| Round bar cutting range |
mm |
Ø70-200 |
| Square material cutting range |
mm |
70-170 |
| Saw blade speed |
rpm |
30-90 |
| Main motor power |
kw |
22/6P |
| Cutting servo motor power |
kw |
4 |
| Feeding servo motor power |
kw |
3 |
| Feeding accuracy |
mm |
±0.05 |
| Single feeding length |
mm |
10-750 |
| Feeding speed |
m/min |
5-20 |
| Raw material rack length |
mm |
4,000-7,000 |

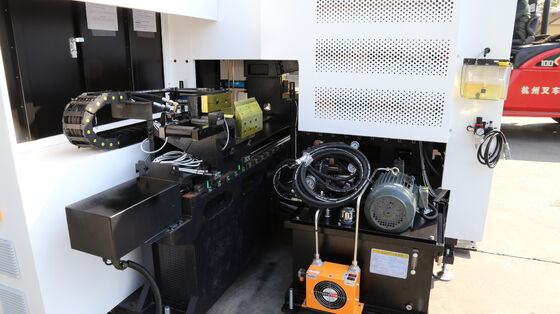

| Hydraulic pressure |
Mpa |
4-5 |
| Hydraulic motor power |
kw |
3.75 |
| Hydraulic oil tank |
L |
168 |
| Machine dimensions |
mm |
2536*2594*2050 |
| Machine weight |
mm |
Approx.5,500 |
Applications
The JSSCD-200NC High-Speed Intelligent CNC Circular Saw Machine is designed for precision and high-volume metal cutting applications.
Typical Applications
- Steel bar cutting
- Round steel bar cutting
- Square steel cutting
- Alloy steel processing
- Metal tube cutting
- Structural steel preparation
- Forged component preparation
- Automotive component manufacturing
- Machinery component manufacturing
- Steel fabrication
- Metal processing
- High-volume bar cutting
- Automated metal cutting production lines
With a round-bar cutting capacity of Ø70–Ø200 mm and square-material capacity of 70–170 mm, the machine is particularly suitable for medium- and large-section metal stock.
Its combination of automatic loading, servo feeding, hydraulic clamping, automatic sorting, automatic chip removal, and CNC control makes it well suited to continuous and batch production environments where productivity and reduced manual intervention are important.
FAQ
Q1: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q3: How about the payment term?
A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q4. Does the machine automatically remove chips?
A: Yes. The JSSCD-200NC is equipped with an automatic chain-type chip conveyor for continuous chip removal.
Q5: Is an oil mist collector available?
A: Yes. An oil mist recovery unit is available as an optional configuration. The technical documentation states that the system can achieve an oil-fume removal rate of more than 95% under the specified treatment conditions.
