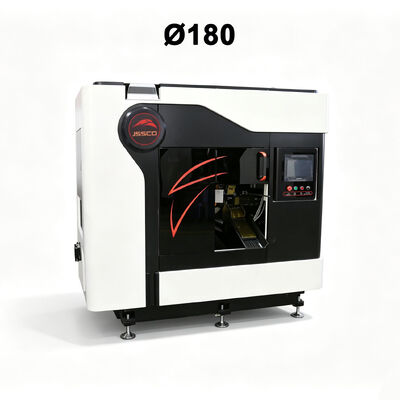

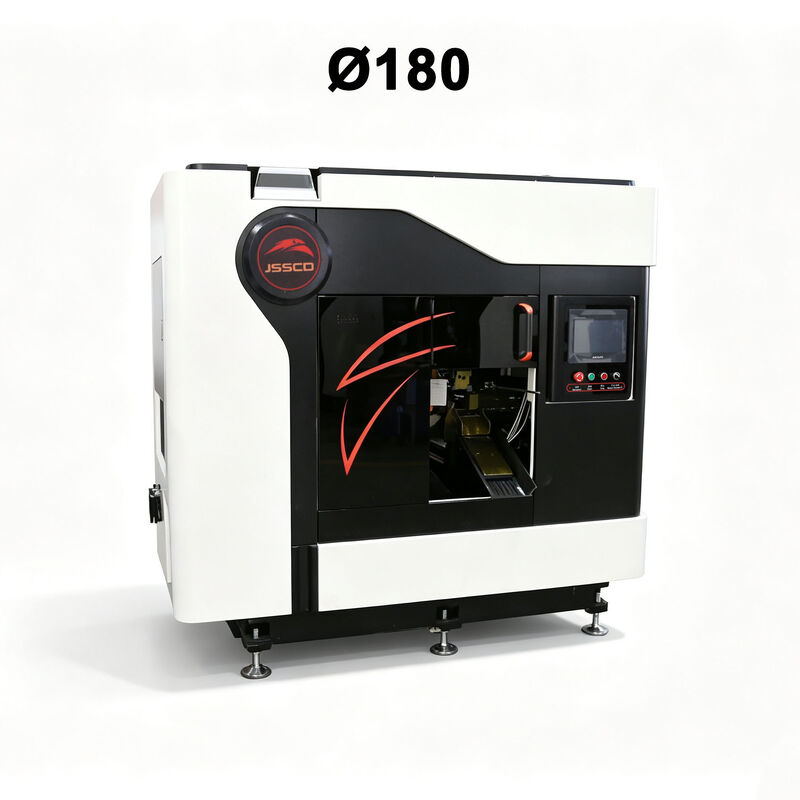

The JSSCD-180NC High-Speed Intelligent CNC Circular Saw Machine is designed for high-efficiency, high-precision cutting of metal bars and square materials. It adopts a servo-driven ball screw feeding system and a stable horizontal push-feed cutting structure to achieve fast, accurate, and consistent cutting performance.
The machine is capable of cutting round bars from Ø60 to Ø180 mm and square materials from 60 * 60 mm to 145 * 145 mm. With a 22 kW wide-frequency main motor, 30–100 rpm saw blade speed, automatic feeding, hydraulic clamping, automatic sorting, chip removal, and other automated functions, the JSSCD-180NC is suitable for continuous and high-volume metal cutting applications.
The machine is engineered for production environments where cutting accuracy, repeatability, automation, and continuous operation are critical. Its servo-controlled feeding system provides a repeat positioning accuracy of up to ±0.01 mm, while the specified cutting length tolerance is ±0.10 mm for bars and ±0.15 mm for tubes.
Key Features
1. High-Speed and Stable Cutting

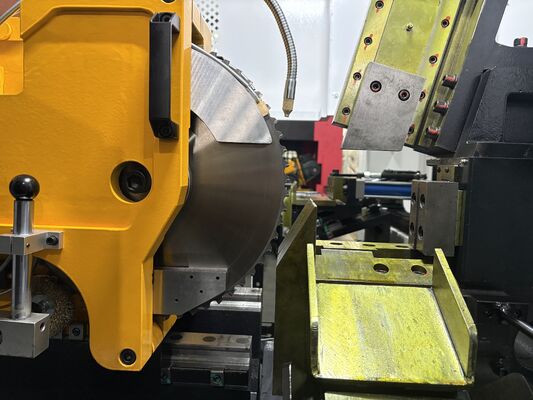

The JSSCD-180NC uses a horizontal push-feed cutting structure designed to improve cutting stability and saw blade durability. The high-rigidity spindle is precision-ground and dynamically balanced to reduce vibration during high-speed operation.
2. Servo-Driven Precision Feeding
A servo motor drives the precision ball screw feeding system to provide fast and accurate material positioning.
3. Automatic Bar Feeding

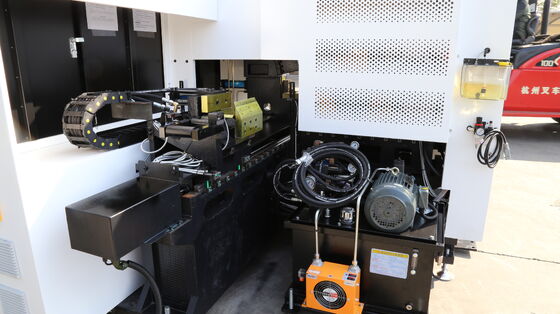

The automatic feeding system uses a servo-controlled ball screw mechanism to provide stable and accurate material feeding.
4. Automatic Material Loading
The machine can be equipped with a fully automatic loading system for bundled raw materials.

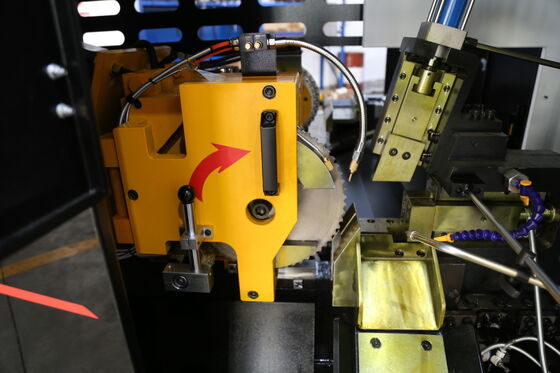

5. Hydraulic Clamping System
The machine features a rigid integrated clamping structure with horizontal hydraulic clamping and an upper pressing system.
6. High-Rigidity Spindle and Gearbox
The spindle is manufactured from high-rigidity alloy steel and undergoes precision grinding and dynamic balancing.
7. Automatic Chip Removal
An automatic chain-type chip conveyor continuously collects and removes chips generated during cutting, helping keep the working area clean and reducing manual cleaning requirements.
8. Automatic Sorting of Finished Parts
The sorting system automatically separates front scrap, tail material, and finished parts, reducing manual sorting operations and improving overall production flow.
9. Minimal-Quantity Lubrication and Cooling
The machine uses a spray cooling and lubrication system with environmentally friendly cutting oil.
10. Automatic Saw Blade Chip Cleaning
A wire-brush cleaning device automatically removes chips attached to the saw teeth during cutting.
11. Automatic Lubrication
The enclosed automatic lubrication system periodically lubricates bearings, guideways, and other moving components.
Technical specifications
| Model |
Unit |
JSSCD-180NC |
| Saw blade size |
mm |
Ø600*2.8*3.4*80 |
| Round bar cutting range |
mm |
Ø60-180 |
| Square material cutting range |
mm |
60-145 |
| Saw blade speed |
rpm |
300-100 |
| Main motor power |
kw |
22/6P |
| Cutting servo motor power |
kw |
4.4 |
| Feeding servo motor power |
kw |
3 |
| Feeding accuract |
mm |
±0.05 |
| Feeding speed |
m/min |
5-20 |
| Minimum head cutting length |
mm |
≥10 |
| Cutting loss |
mm |
≤3.4 |
| Cutting squareness tolerance |
mm |
≤±0.1/100 |
| Hydraulic motor power |
kw |
3.75 |
| Hydraulic pressure |
Mpa |
4-5 |
| Hydraulic tank capacity |
L |
168 |
| Machine dimensions |
mm |
2536*2594*2050 |
| Machine weight |
kg |
Approx. 5,500 |
Applications
The JSSCD-180NC is designed for high-volume and precision metal cutting applications, particularly where consistent cutting length, stable production cycles, and automatic material handling are required.
Typical Applications
- Steel bar cutting
- Round steel bar processing
- Square steel cutting
- Alloy steel cutting
- Metal tube cutting
- Structural steel preparation
- Forged part preparation
- Automotive component manufacturing
- Machinery component manufacturing
- Steel fabrication
- Metal processing and manufacturing
- High-volume billet and bar cutting
With a cutting capacity of Ø60–Ø180 mm for round bars and 60–145 mm for square materials, the machine is particularly suitable for batch production involving medium- to large-diameter metal stock.
Its automatic loading, servo feeding, automatic sorting, chip removal, and CNC control functions make it suitable for production environments where high productivity and reduced manual intervention are required.
FAQ
Q1: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q2: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.
Q3: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international
Q4: How is the material clamped during cutting?
A: The machine uses horizontal hydraulic clamping combined with an upper pressing device, providing stable workpiece positioning during cutting.
Q5: Is the JSSCD-180NC suitable for high-volume production?
A: Yes. Its automatic loading, servo feeding, automatic sorting, CNC control, automatic chip removal, and continuous lubrication/cooling functions make it particularly suitable for batch and continuous metal cutting production.
