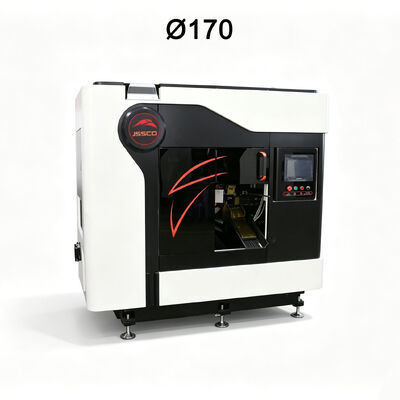

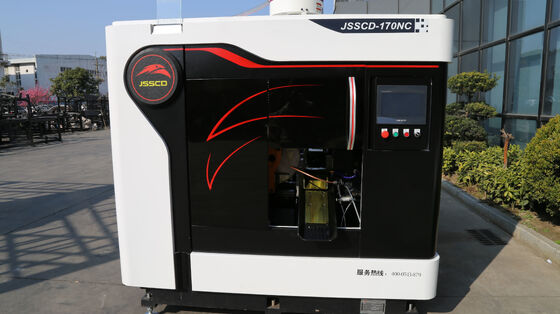

The JSSCD-170NC High-Speed Intelligent Circular Saw Machine is an automated CNC metal cutting solution designed for efficient and precise cutting of round bars and square materials.
The machine adopts a horizontal push-type feeding structure, driven by a servo motor and precision ball screw. This configuration provides stable blade feeding, precise feed control, and reliable cutting performance. The feeding speed can be continuously adjusted according to the material type and workpiece dimensions, making the machine suitable for different production conditions.
The JSSCD-170NC integrates automatic loading, servo feeding, hydraulic clamping, high-speed circular sawing, automatic material separation, mist lubrication, automatic chip removal, automatic lubrication, and CNC control. From automatic material feeding to cutting and separation of finished products, head material, and tail material, the main production process can be completed automatically, reducing manual intervention and improving production efficiency.
The machine supports round bar cutting from Ø50–Ø170 mm and square material cutting from 50–135 mm. It is designed for raw materials with a maximum strength of 1800 N/mm² and a maximum hardness of HRC42.
Key Features
1. Stable Horizontal Push Feeding
Servo + ball screw system ensures smooth, stable cutting with adjustable feed speed and overload protection.
2. High-Precision Servo Feeding
AC servo feeding with 10–750 mm stroke, 5–20 m/min speed, and ±0.05 mm accuracy.
3. Ø170 mm Cutting Capacity
Cuts round bars Ø50–Ø170 mm and square materials 50–135 mm.
4. High Cutting Accuracy
- Bar: ≤±0.1 mm
- Tube: ≤±0.15 mm
- Loss: ≤2.7 mm
5. Rigid Machine Bed
HT250 cast iron bed with heat treatment for high stability and low deformation.
6. High-Rigidity Spindle
Precision gearbox + balanced spindle with damping system for low vibration cutting.
7. Hydraulic Clamping

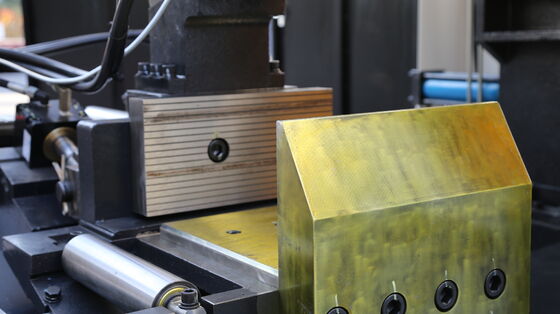

Horizontal hydraulic clamping with adjustable pressure for stable workpiece holding.
8. Automatic Loading
Auto feeding from material rack for continuous batch production.
9. Automatic Material Separation
Separates finished parts, head, and tail material automatically.
10. Mist Lubrication
Adjustable oil mist system reduces heat, improves blade life, and saves oil.
11. Chip Removal
Chain-type conveyor automatically removes chips during operation.
12. Blade Cleaning
Wire brush removes chips from saw blade to maintain cutting stability.
13. CNC Control System
PLC + touchscreen control with Ethernet support for production line integration.
14. Automatic Lubrication
Centralized lubrication system with low-oil alarm and easy maintenance.
15. Optional Oil Mist Collector
Optional system with >95% oil mist removal efficiency.
Technical specifications
| Model |
Unit |
JSSCD-170NC |
| Mainframe dimensions |
mm |
2376*2271*1970 |
| Saw blade size |
mm |
Ø500*2.25*2.7*50 |
| Round bar cutting range |
mm |
Ø50-170 |
| Square material cutting range |
mm |
50-135 |
| Saw blade speed |
rpm |
30-100 |
| Main motor power |
kw |
18.5/6P |
| Cutting servo motor |
kw |
3 |
| Feeding servo motor |
kw |
3 |
| Single feeding length |
mm |
10-750 |
| Minimum head cutting length |
mm |
≥10mm |

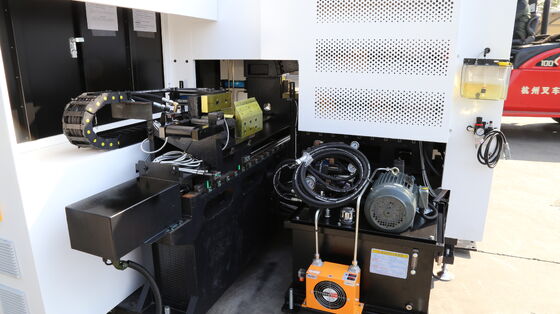

| Hydraulic motor |
kw |
3.75 |
| Hydraulic pressure |
Mpa |
4-5 |
| Hydraulic tank capacity |
L |
168 |
| Machine weight |
kg |
Approx.5000kg |
| Cutting loss |
mm |
≤2.7mm |
Applications
The JSSCD-170NC is designed for automated cutting of round bars and square metal materials within its specified cutting range.
Typical applications include:
- Round steel bar cutting
- Square steel cutting
- Metal bar blank preparation
- Batch cutting of bar stock
- Automated material preparation
- Continuous production-line cutting
- High-volume metal processing
- Precision blank preparation for subsequent machining
With automatic loading, servo feeding, hydraulic clamping, CNC cutting, automatic material separation, chip removal, and lubrication systems, the JSSCD-170NC is particularly suitable for production environments requiring consistent cutting dimensions, stable cutting quality, reduced manual intervention, and continuous batch processing.
The machine is specified for raw materials with a maximum strength of 1800 N/mm², maximum hardness of HRC42, and raw-material bending of no more than 3 mm/m.
FAQ
Q1: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q2: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q3: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q4: Does it have automatic material separation?
A: Yes. The machine can automatically separate finished products, head material, and tail material, reducing manual sorting.
Q5: How are cutting chips removed?
A: An automatic chain-type chip conveyor removes chips generated during the cutting process.
