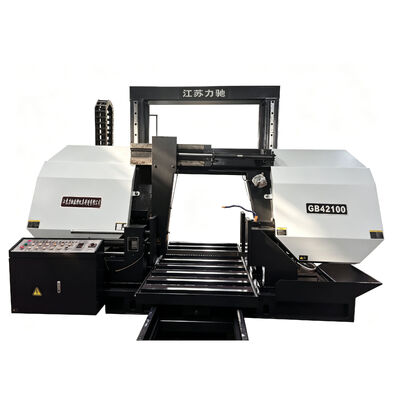

The GB42100 Gantry Horizontal Band Saw Machine is a heavy-duty metal cutting solution specially designed for large-scale industrial applications. It is capable of processing large round materials, square blocks, cylindrical components, shafts, and forged parts with high efficiency and precision.
Featuring a double-column gantry structure, the machine provides excellent rigidity, structural stability, and reliable cutting accuracy during heavy-duty operations. The robust frame design allows the GB42100 to maintain stable performance when cutting oversized metal materials.
Equipped with hydraulic clamping, hydraulic blade tensioning, variable frequency speed control, and a platform sliding trolley feeding system, the GB42100 offers an efficient solution for industries requiring continuous and stable large-scale metal cutting.
Key Features
1. Extra-Large Cutting Capacity for Heavy Industrial Materials
The GB42100 is engineered for oversized workpieces with a maximum cutting capacity of Ø1000mm round materials and 1000*1000mm square materials, making it suitable for heavy steel processing and large component manufacturing.
2. Reinforced Gantry Structure for Maximum Rigidity
The machine adopts a double-column gantry design to enhance overall strength and reduce vibration during cutting. This rigid structure improves blade stability and helps maintain consistent cutting performance under heavy loads.
The welded steel base is processed with stress-relief treatment to minimize deformation and provide long-term durability.
3. Hydraulic Control System for Stable Cutting Operations
The GB42100 uses hydraulic control for blade feeding, workpiece clamping, and guide arm movement, providing smooth operation and better adaptability for different materials.

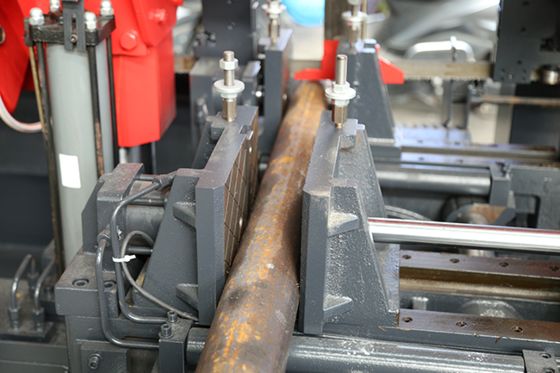

The hydraulic clamping system securely fixes workpieces, reducing movement during cutting and improving processing consistency.
4. Platform Sliding Trolley Feeding System
The platform sliding trolley feeding system provides stable support for large and heavy workpieces.
With a 1000mm feeding stroke and a 1000*1000mm feeding platform, the machine makes material positioning and loading more convenient, improving operational efficiency.
5. Adjustable Blade Speed for Different Materials
The saw blade speed can be adjusted from 15–60 m/min through frequency conversion control, allowing operators to select suitable cutting parameters according to different metal materials and production requirements.
6. Automatic Blade Tensioning System
The hydraulic automatic blade tensioning system maintains proper blade tension during operation, helping improve cutting stability and extend blade service life.
7. Efficient Cooling System for Continuous Cutting
The machine adopts a circulating coolant system to effectively reduce blade temperature during operation, helping prevent overheating and maintaining cutting accuracy during long working cycles.
8. Convenient Operation and Maintenance
The GB42100 is equipped with an independent electrical control cabinet. All operations are controlled through buttons, with safety interlocking functions to improve operating convenience and workplace safety.
Technical specifications
| Model |
Unit |
GB42100 |
| Machine size |
mm |
3100*4500*2800 |
| Square bar&angle bar |
mm |
1000*1000 |
| Bar stock |
mm |
Φ1000 |
| Saw band size |
|
9700*67*1.6 |
| Main motor power |
kw |
11 |
| Hydraulic motor power |
kw |
3.75 |
| Cooling motor power |
kw |
1.2 |
| Hydraulic fluid capacity |
L |
100 |
| Cutting fluid capacity |
L |
60 |
| Saw band tension |
|
Hydraulic |
| Clamping method |
|
Hydraulic |
| Feeding method |
|
Pulley type/drum type |
| Feeding stroke |
|
1000mm |
| Feeding platform size |
|
1000 x 1000mm |
| Feeding method |
|
Plateform sliding trolley feeding |
Applications
The GB42100 Gantry Horizontal Band Saw Machine is designed for industries requiring high-capacity cutting solutions for oversized metal materials. Its large cutting range and stable structure make it suitable for heavy manufacturing environments.
Large Steel Block and Bar Cutting
The GB42100 is ideal for cutting large diameter steel bars, square steel blocks, and other oversized metal materials used in industrial production.
Heavy Machinery Component Manufacturing
The machine is widely used for preparing large machine components, including shafts, structural parts, equipment bases, and other heavy-duty mechanical components.
Forging Industry Applications
For forged parts and large metal blanks, the GB42100 provides efficient cutting performance before machining, helping manufacturers improve production workflow.
Steel Fabrication and Processing
Steel fabrication companies can use this machine for processing large steel sections and customized components where high cutting capacity and accuracy are required.
Industrial Equipment Production
The GB42100 is suitable for manufacturers producing construction equipment, energy equipment, mining machinery, and other large industrial products
Typical Industries
- Heavy machinery manufacturing
- Forging and foundry plants
- Steel fabrication factories
- Industrial equipment production
- Mechanical component processing
- Large-scale metal processing workshops
With its large cutting capacity, hydraulic control system, rigid gantry structure, and platform feeding design, the GB42100 provides a reliable solution for demanding heavy-duty cutting applications.
FAQ
Q1: How about the payment term?
A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q2: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international certification.
Q3: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q4: Why does the GB42100 use a gantry double-column structure?
The gantry double-column structure improves machine rigidity and stability, helping maintain cutting accuracy when processing large and heavy workpieces.
Q5: How does the machine ensure long-term cutting performance?
The GB42100 combines hydraulic automatic blade tensioning, circulating cooling, and a rigid machine structure to improve cutting stability and extend equipment service life.
