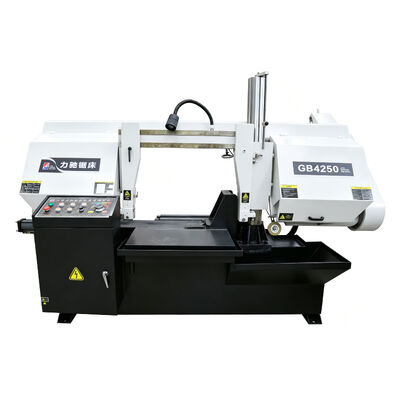

The GB4250 Horizontal Metal Band Saw Machine is a new-generation industrial cutting machine developed for high-efficiency and high-precision metal processing. By adopting advanced band sawing technology and improving the transmission structure, motor power, and cutting performance, the machine delivers high speed, high efficiency, and energy-saving operation.
Designed with a main and auxiliary column guiding structure, the GB4250 features excellent structural stability, reliable performance, and long service life. The column surfaces are treated with hard chrome coating to improve wear resistance and maintain machining accuracy over long-term operation.
This machine is suitable for cutting large steel billets and various ferrous and non-ferrous metal materials. With appropriate speed adjustment and suitable saw blades, it can efficiently process different materials with various hardness levels.
Key Features
1. High-Speed & High-Efficiency Cutting Performance
The GB4250 is designed for heavy-duty metal cutting applications. With an upgraded transmission system, stronger structure, and increased motor power, it provides faster cutting speed and improved production efficiency.
2. Stable Main & Auxiliary Column Structure
The machine adopts a large main column and auxiliary column guiding system, providing excellent rigidity and stability during cutting operations. The hard chrome-plated column surface improves wear resistance and extends machine service life.
3. Hydraulic Saw Frame Lifting System
The saw frame lifting system is driven by hydraulic cylinders, ensuring smooth movement and stable cutting performance.
4. Precision Saw Blade Guidance System
The saw blade guidance system uses bearings and adjustable tungsten carbide guide blocks to improve cutting accuracy, reduce vibration, and extend saw blade life.
5. Heavy-Duty Welded Machine Structure
The machine base adopts a box-type welded steel structure with vibration stress relief treatment, reducing welding deformation and improving overall rigidity.
6. Hydraulic Workpiece Clamping
The GB4250 uses a hydraulic cylinder clamping system controlled through the operation panel, allowing convenient workpiece clamping and releasing while ensuring stable cutting.
7. Reliable Transmission System
The main transmission system uses high-quality worm gear components. The worm gear is manufactured with precision machining technology, ensuring high accuracy, smooth operation, and long service life.
8. Easy Operation & Maintenance
The electrical control system adopts centralized control through operation buttons. The hydraulic system completes saw frame lifting, workpiece clamping, feeding, and return operations efficiently.
Technical specifications
| Model | Unit | GB4250 |
|---|
| Machine size | mm | 1000*2700*1800 |
| Square bar&angle bar | mm | 600*500 |
| Bar stock | mm | Φ500 |
| Saw band speed | m/min | 23,42,60 |
| Saw band size | | 5650*41*1.3 |
| Main motor power | kw | 5.5 |
| Hydraulic motor power | kw | 1.5 |
| Cooling fluid capacity | kw | 0.06 |
| Hydraulic fluid capacity | L | 50 |
| Cutting fluid capacity | L | 40 |
| Saw band tension | | Manual |
| Clamping method | | Manual-Hydraulic combination |
| Feeding method | | Manual |
Applications
The GB4250 Horizontal Metal Band Saw Machine is designed for heavy-duty metal cutting applications and is widely used in industries requiring efficient processing of large-size metal materials.
1. Steel Fabrication Industry
The machine is suitable for cutting large steel billets, structural steel, and fabricated components. Its large cutting capacity makes it ideal for preparing materials before welding, assembly, and further processing.
2. Machinery Manufacturing
The GB4250 is widely used in machinery manufacturing for cutting metal blanks, machine frames, and heavy mechanical components, providing stable and accurate material preparation.
3. Metal Processing Workshops
With adjustable cutting speeds and hydraulic operation, the machine can meet different cutting requirements in professional metalworking workshops.
4. Steel Structure Production
The machine is suitable for processing structural steel materials used in construction equipment, industrial frameworks, and heavy steel structures.
5. General Industrial Cutting Applications
The GB4250 can cut various ferrous and non-ferrous metal materials with different hardness levels by selecting appropriate cutting parameters and saw blades.
FAQ
- How about the payment term?
- T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
- Does the band saw blade have any international certifications?
- Yes, we have obtained CE, ISO international certification.
- Are you a manufacturer or a trading company?
- We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
- What is the GB4250 Horizontal Metal Band Saw Machine designed for?
- The GB4250 is designed for heavy-duty metal cutting applications, especially for large steel billets, metal blocks, and various ferrous and non-ferrous materials.
- What makes the GB4250 different from standard band saw machines?
- The GB4250 features a main and auxiliary column guiding structure, which provides higher rigidity, better stability, and improved cutting accuracy during heavy-duty operations.
- How does the machine ensure cutting accuracy?
- The GB4250 uses bearing and adjustable tungsten carbide guide blocks for saw blade guidance, helping reduce vibration and improve cutting precision.
